CueWeb Reference

Complete reference documentation for CueWeb, the web-based interface for OpenCue.

Table of contents

1. Overview
   1. System Requirements
2. Architecture
   1. Component Stack
   2. Data Flow
3. Environment Variables
   1. Required Variables
   2. Optional Build-Time Variables
   3. Authentication Variables
   4. OAuth Provider Variables
      1. Okta
      2. Google
      3. GitHub
      4. LDAP
   5. Monitoring Variables
4. User Interface Components
   1. Jobs Table
   2. Layers Table
   3. Frames Table
   4. Columns dropdown (visibility + ordering)
   5. Per-table substring filter
   6. Group By (Jobs table)
   7. Inline JobDetails (Layers + Frames panel)

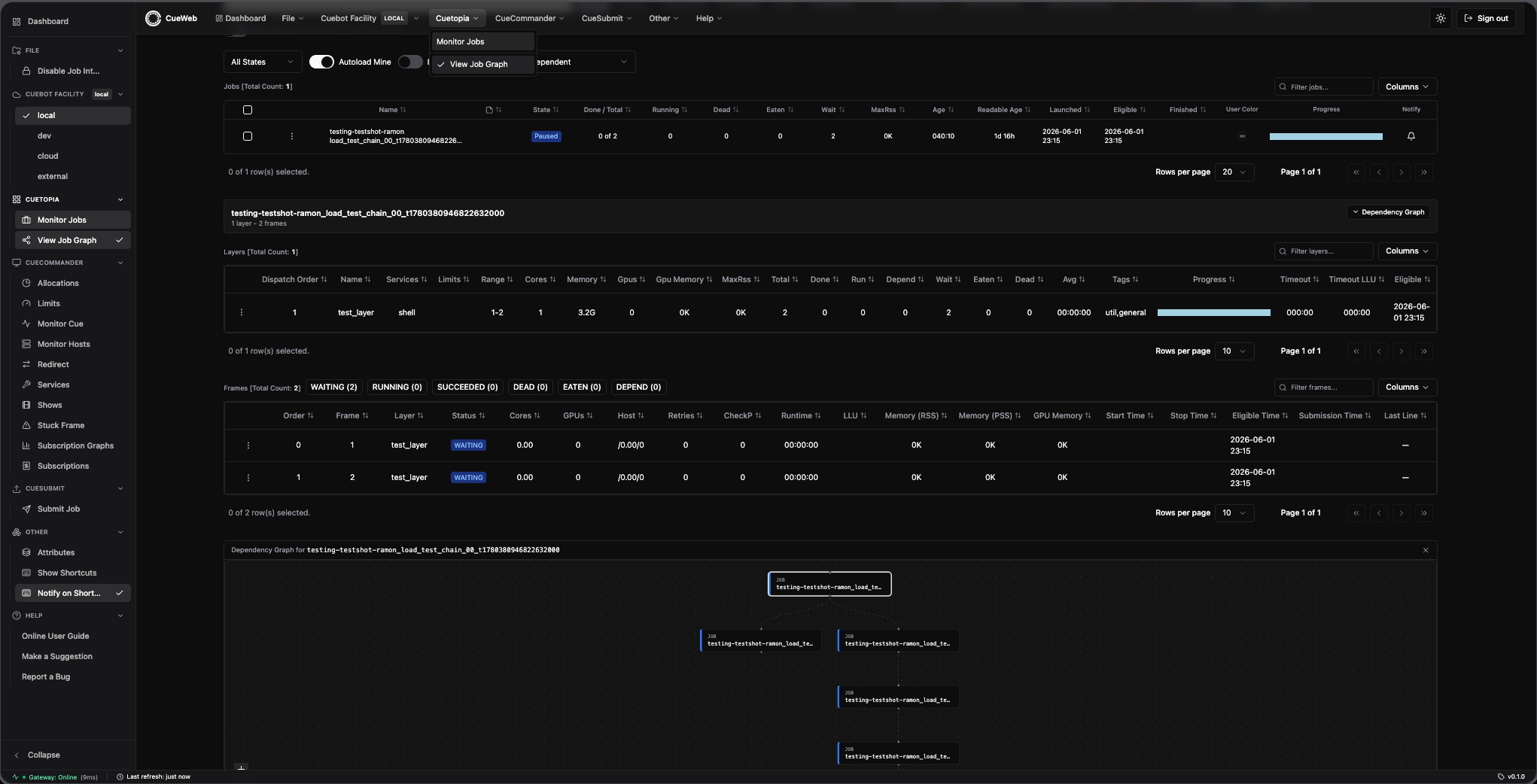

   8. Job dependency graph panel

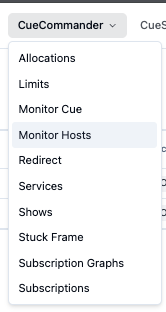

   9. Monitor Hosts

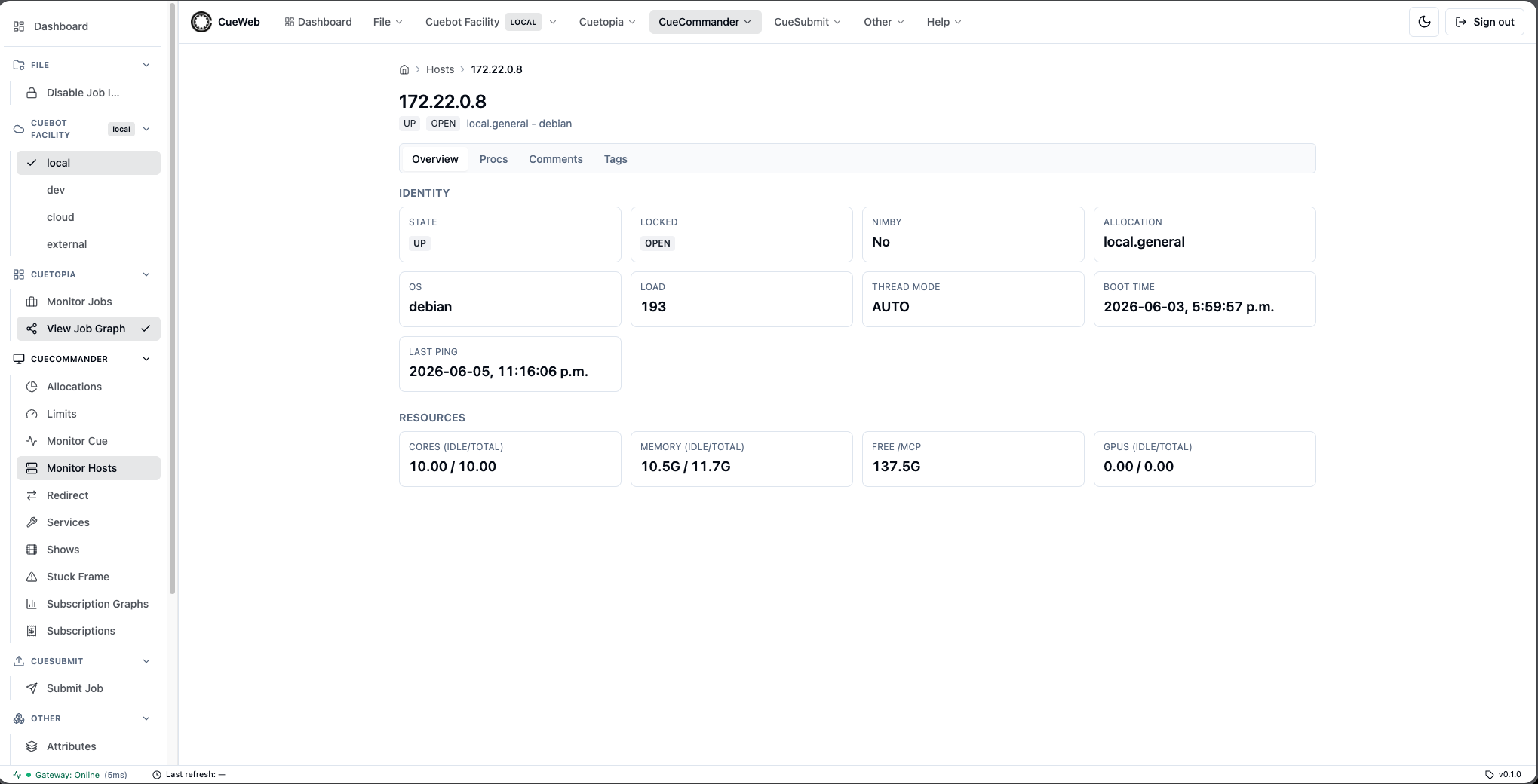

   10. Host detail page

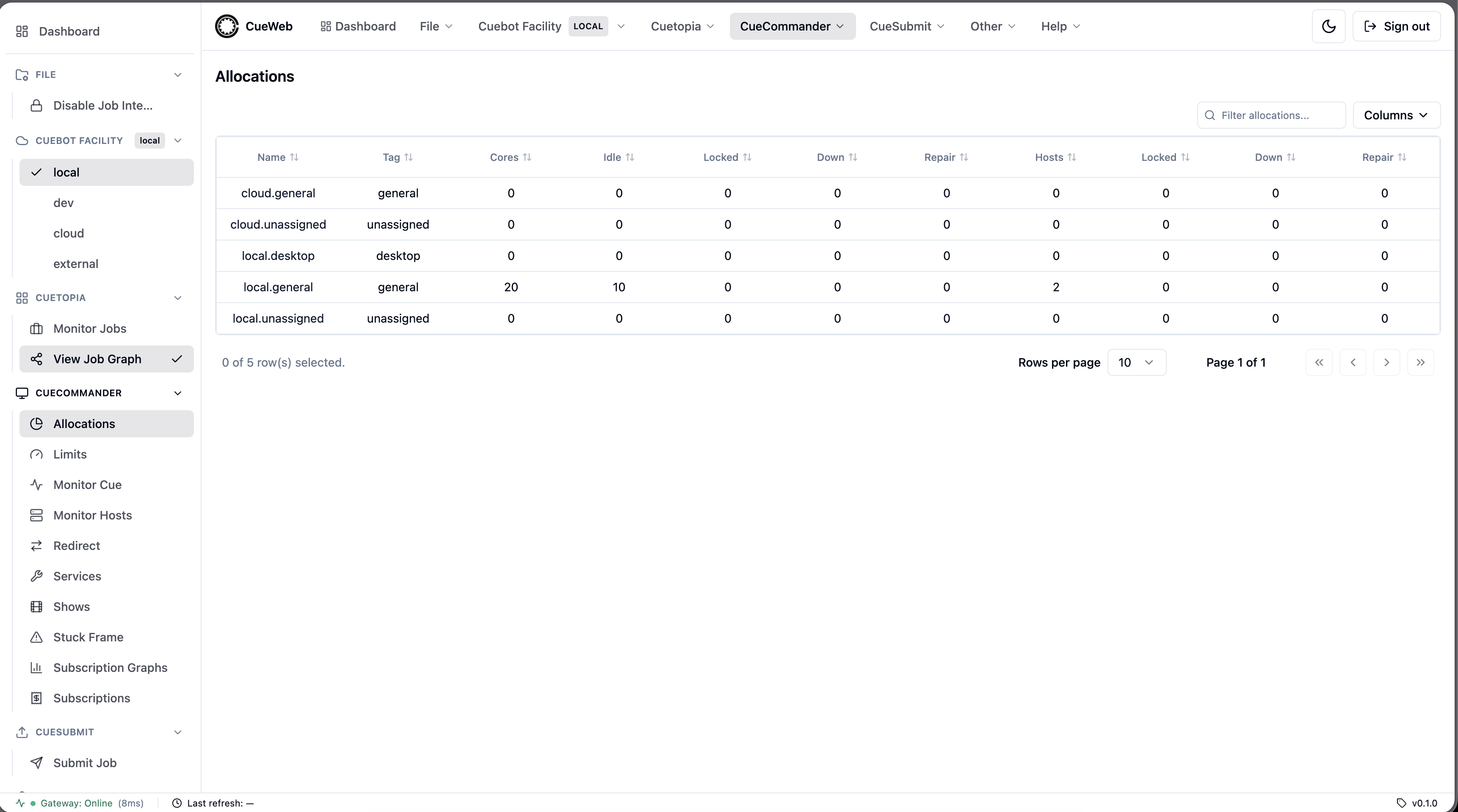

   11. Allocations

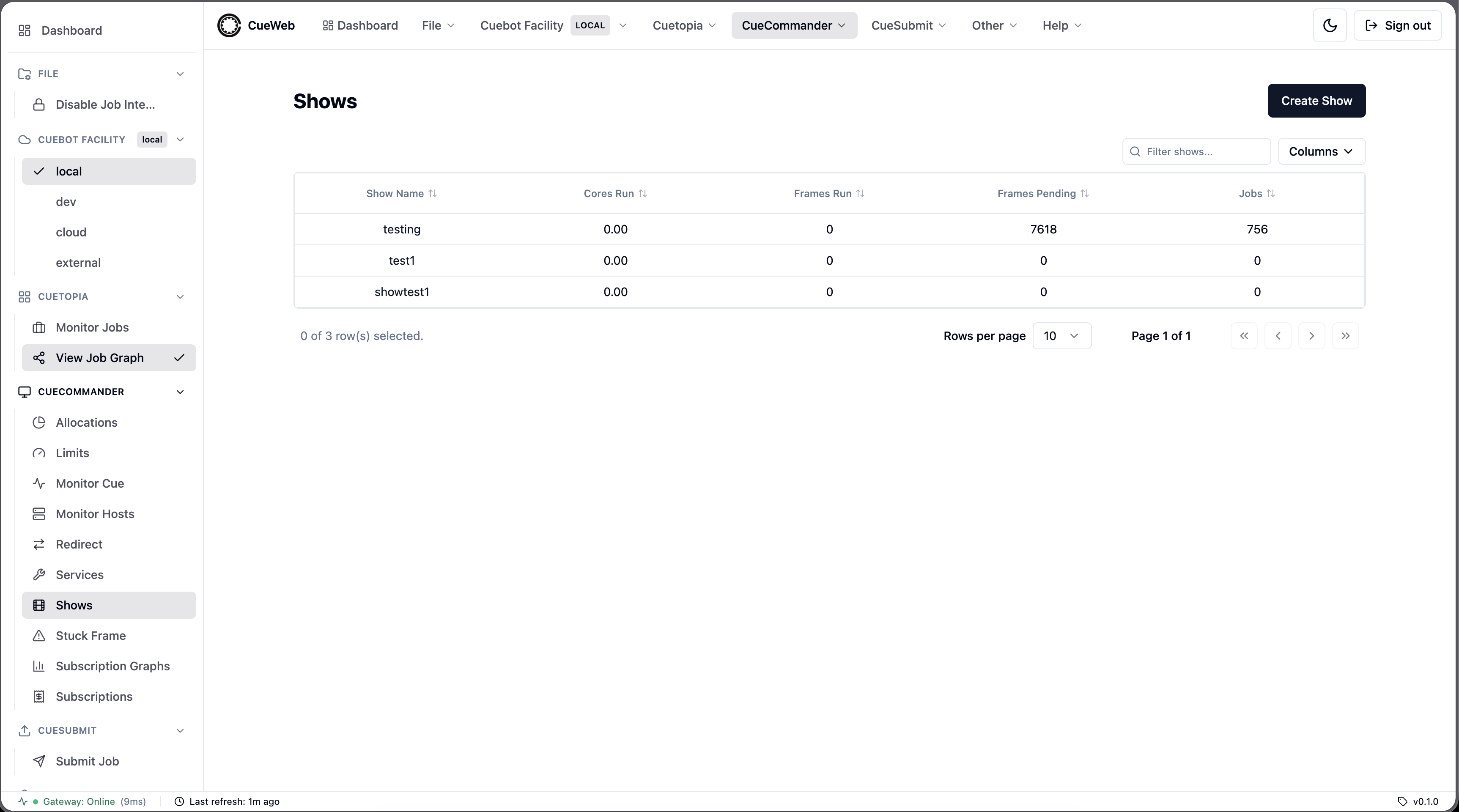

   12. Shows
       1. Show Properties dialog
       2. Create Subscription dialog

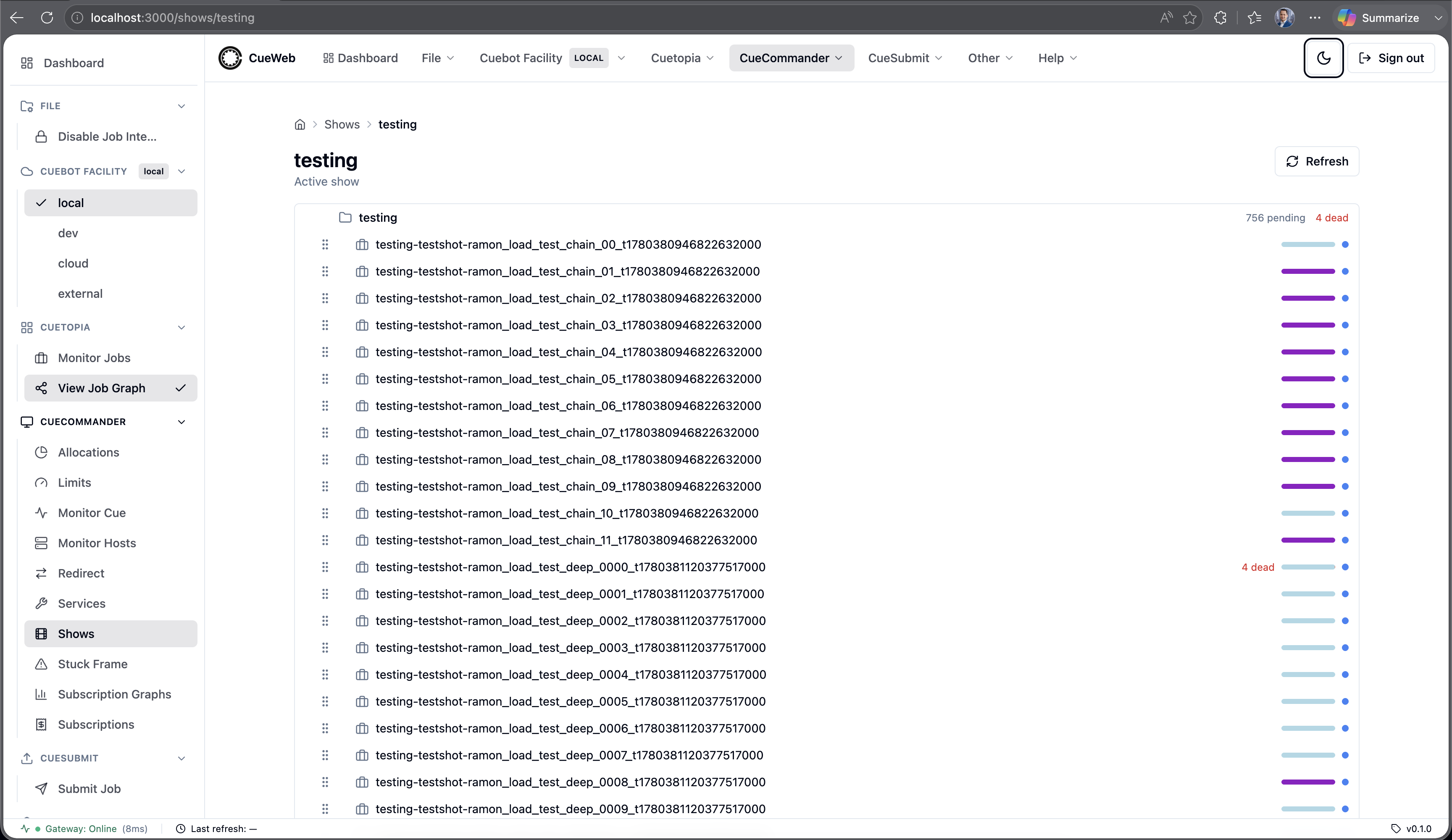

       3. Show detail page (group tree)
   13. Job-finished notifications
   14. Keyboard shortcuts overlay (+ menu access)
   15. Job States
   16. Frame States
   17. Frame State Filter Chips
   18. Job Comments Page
5. Search Functionality
   1. Basic Search
   2. Regex Search
   3. Search Result Actions
6. Context Menu Actions
   1. Job Actions
   2. Layer Actions
   3. Frame Actions
   4. External editor integration
   5. Set Priority dialog
   6. Email Artist dialog
   7. Request Cores dialog
   8. Subscribe to Job dialog
   9. Drop External / Internal Dependencies
   10. View Dependencies dialog

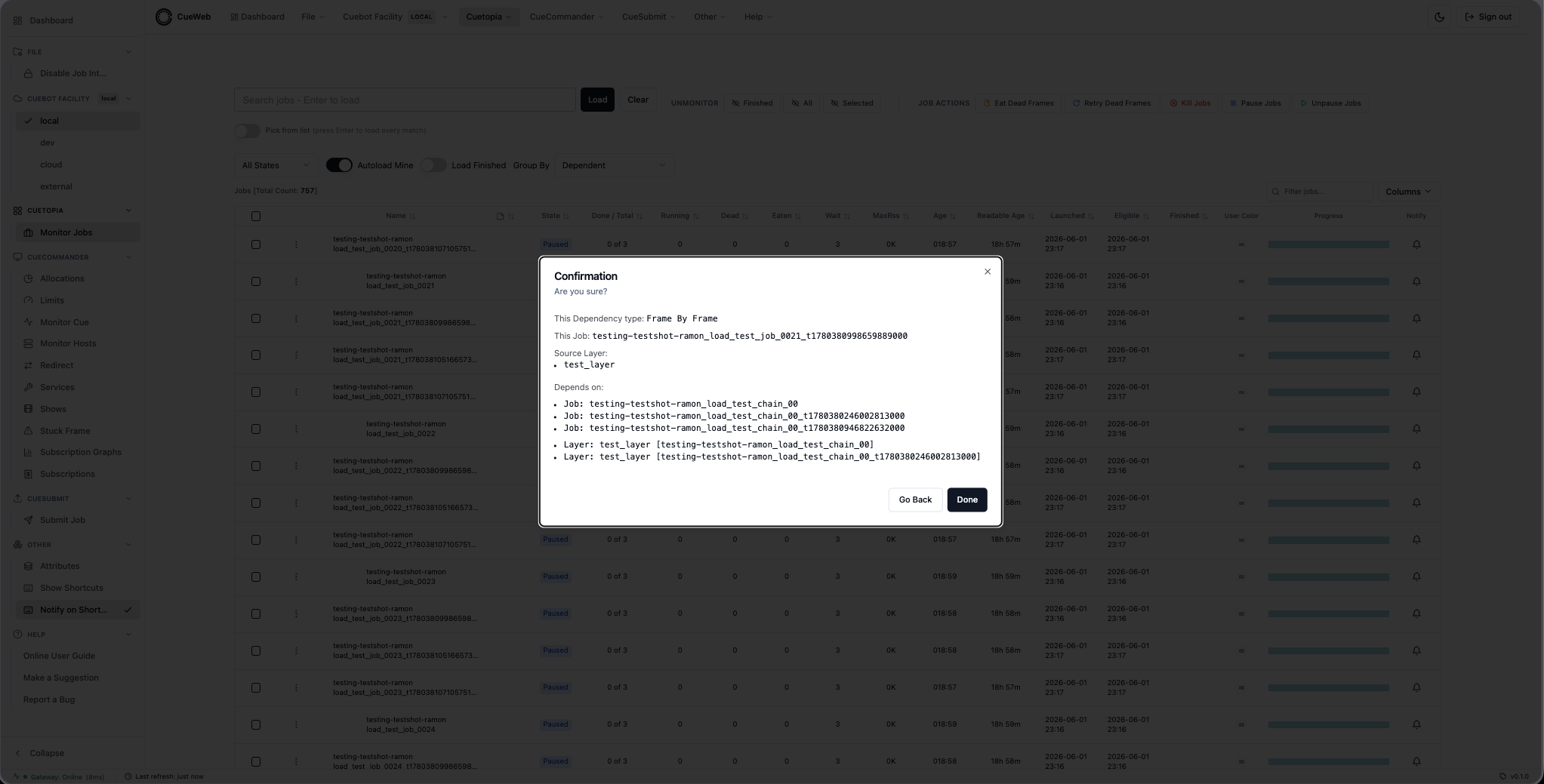

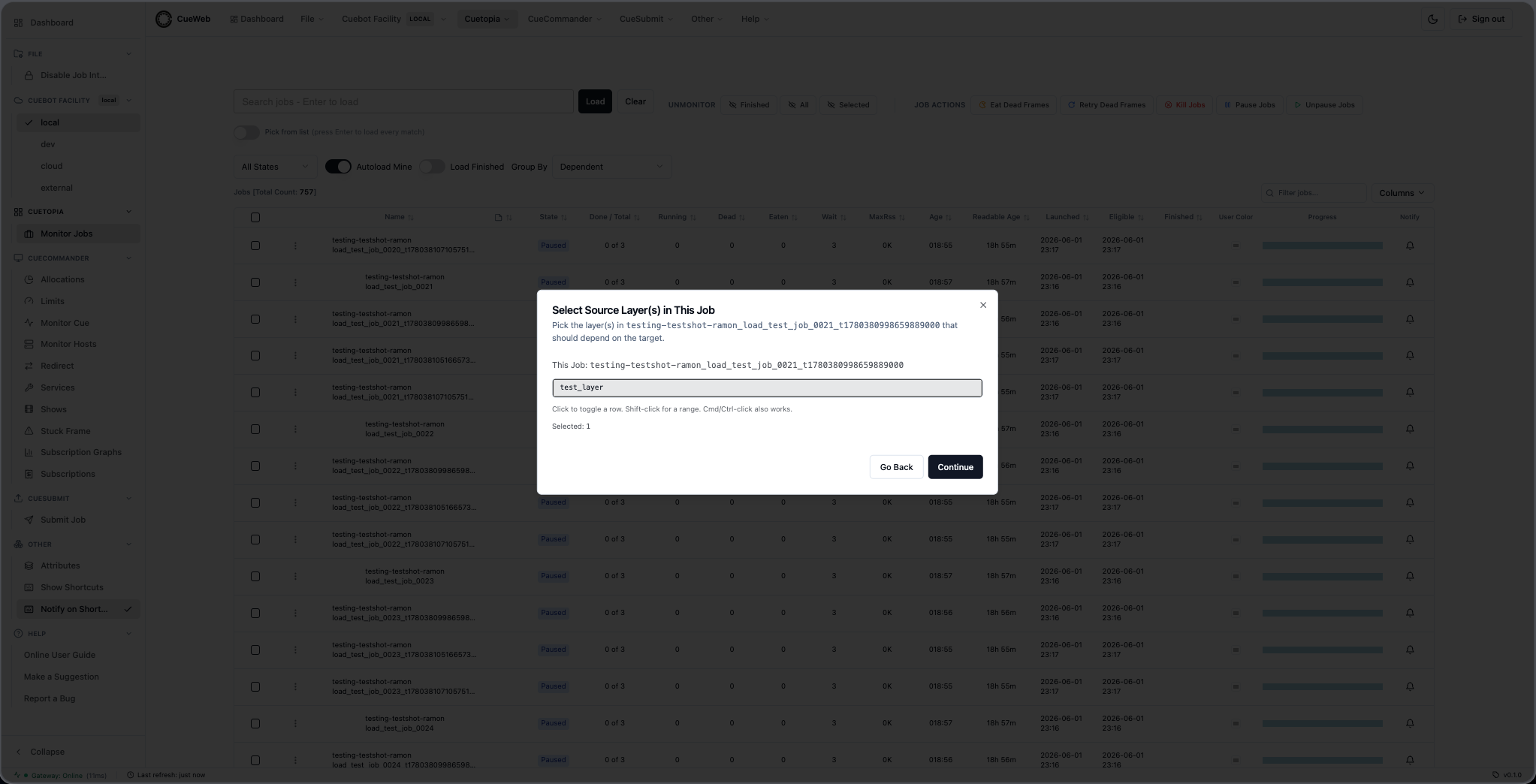

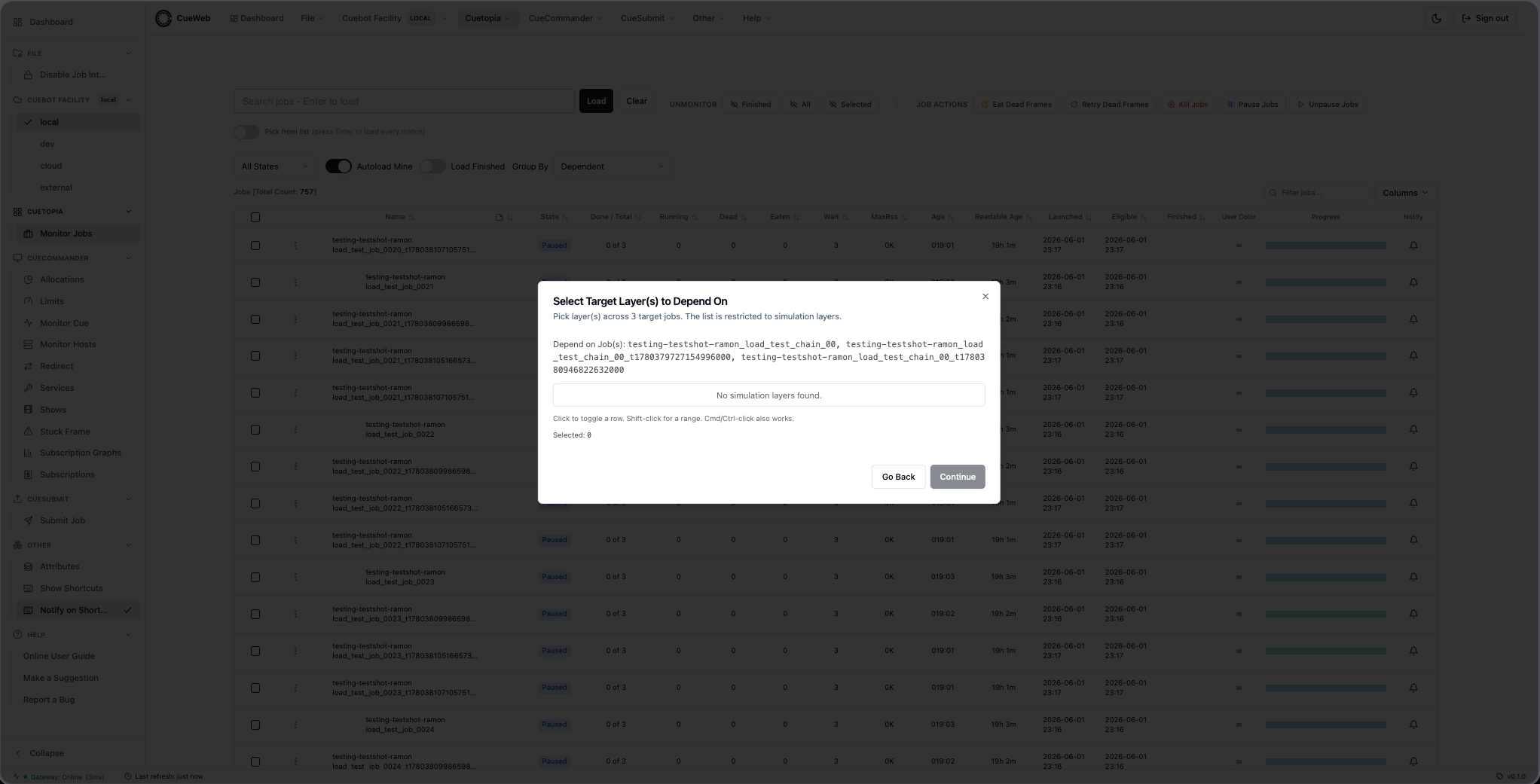

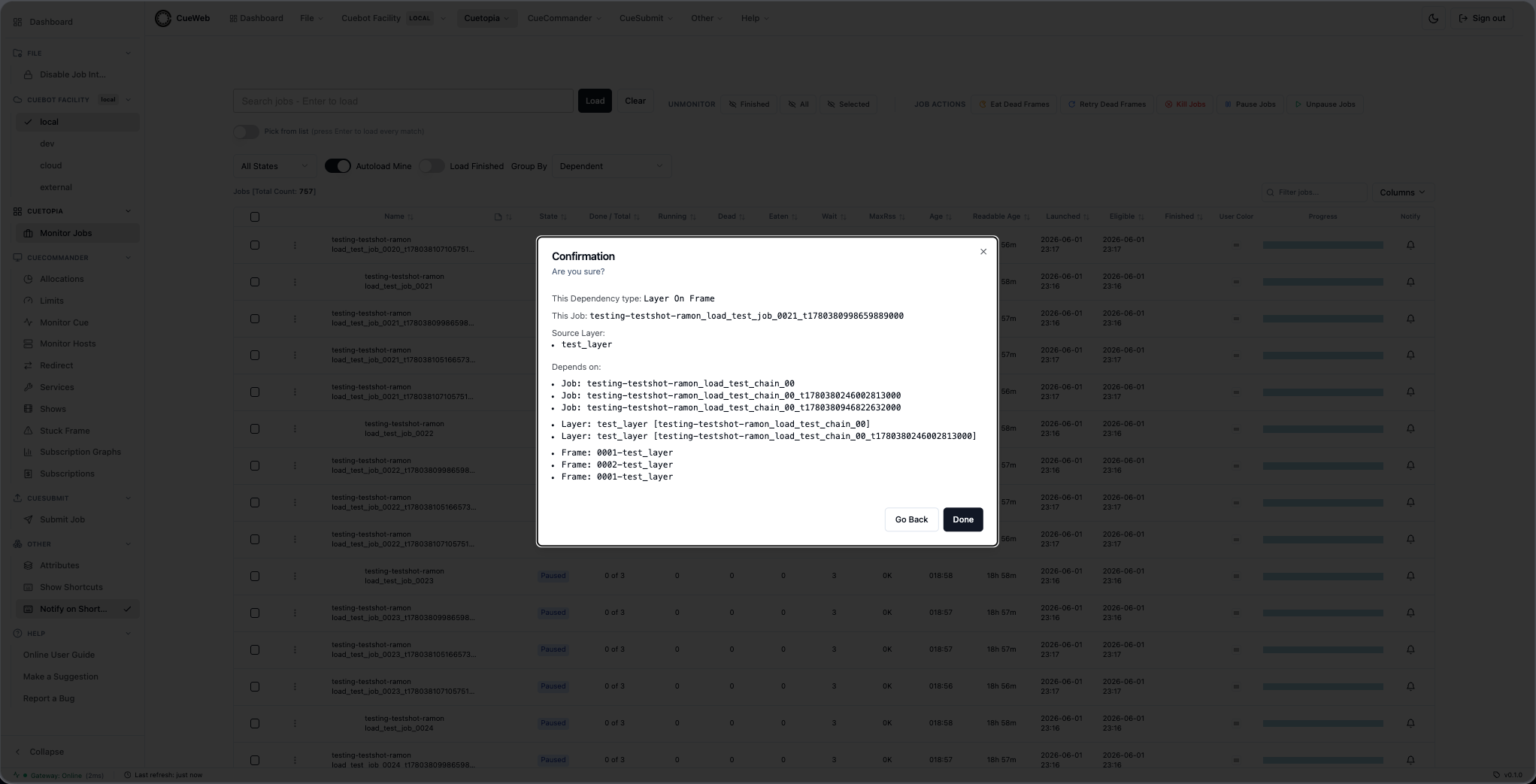

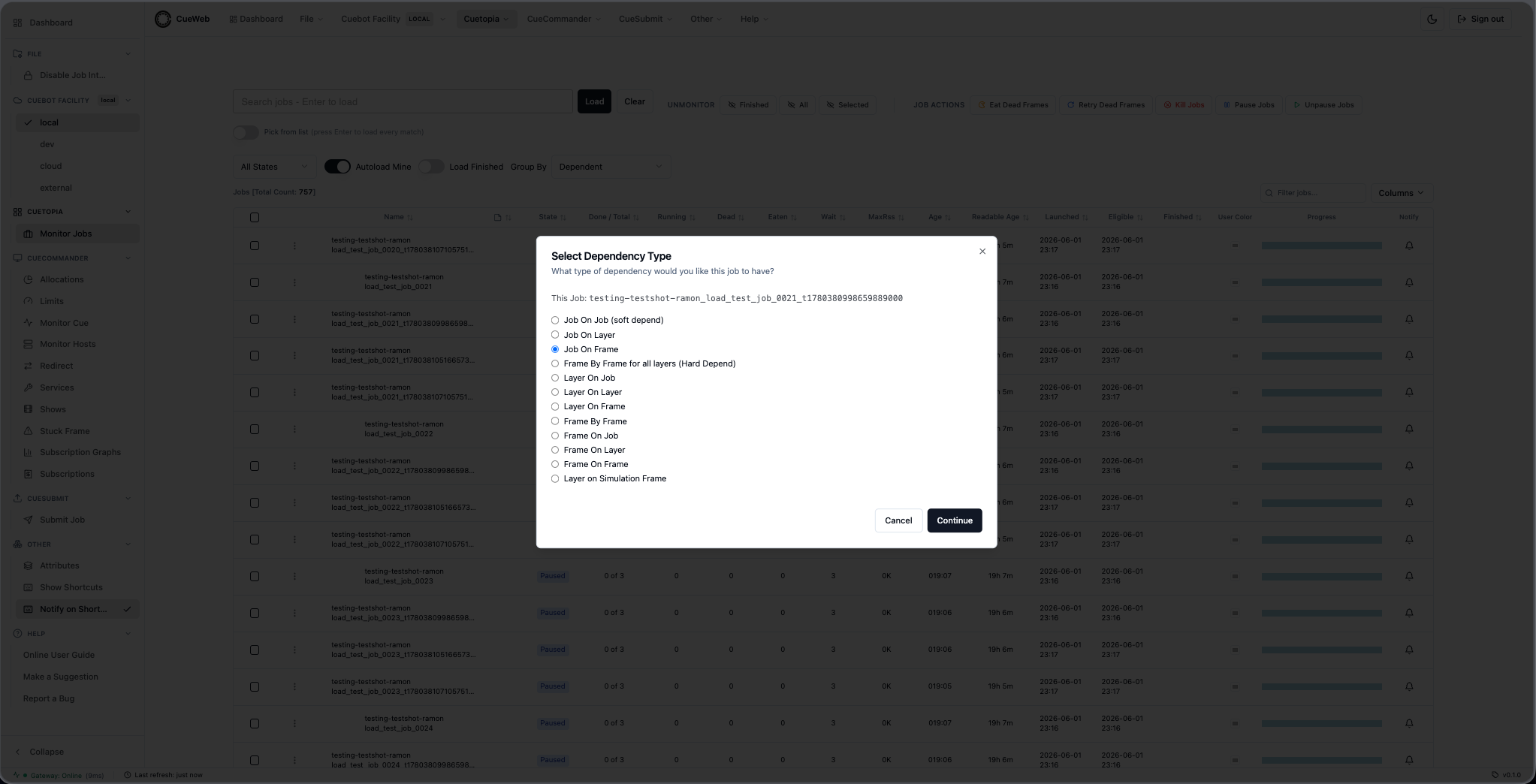

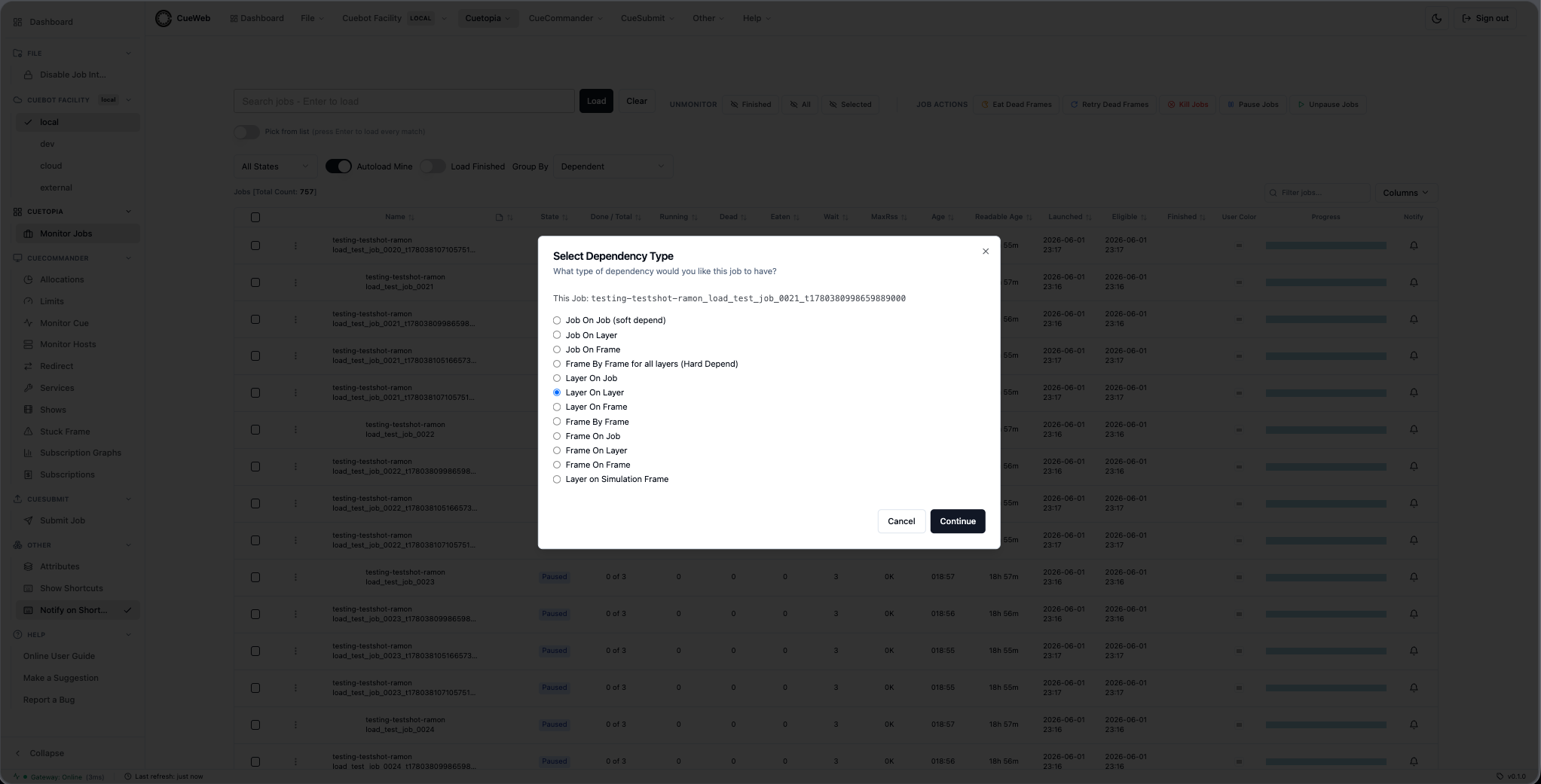

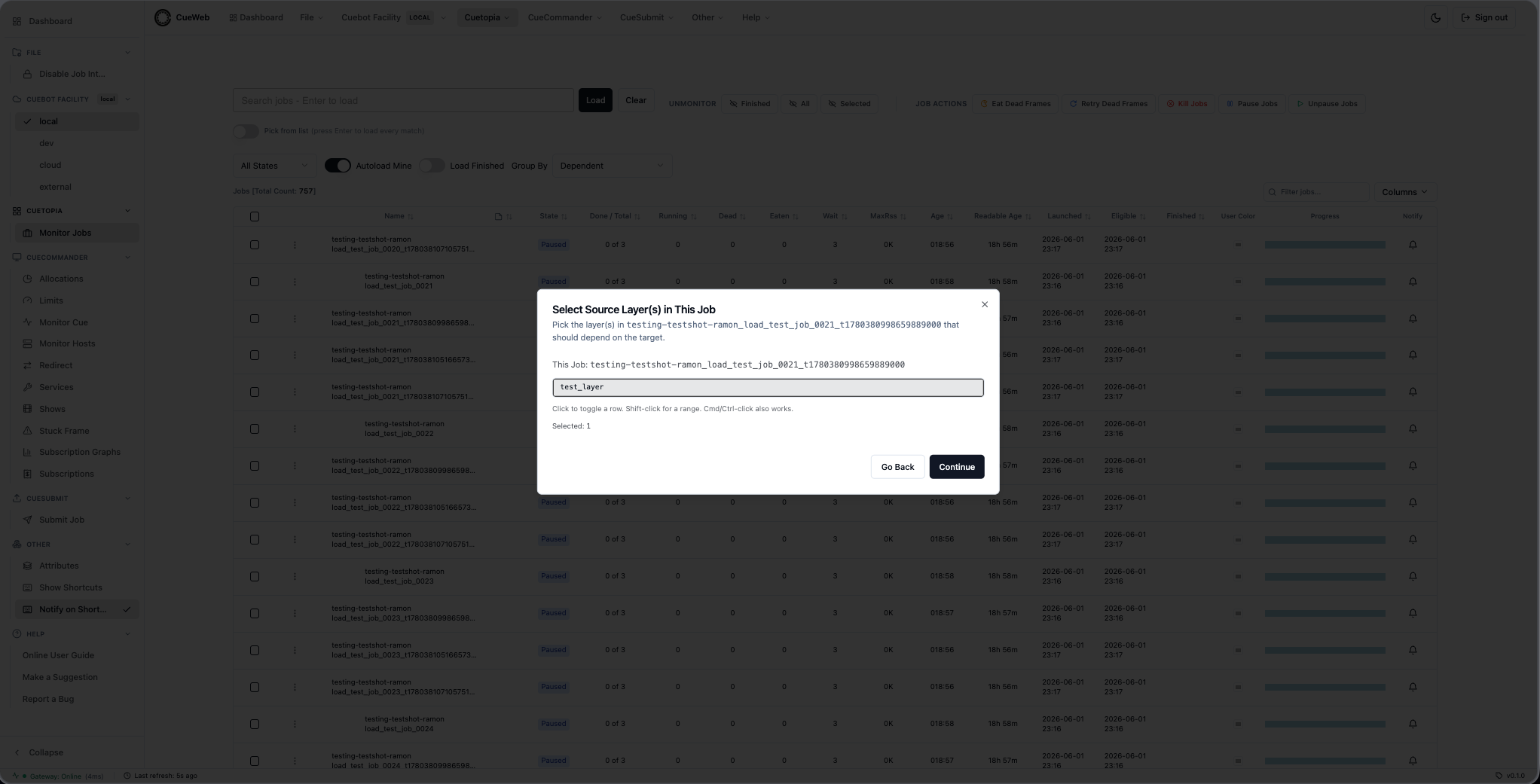

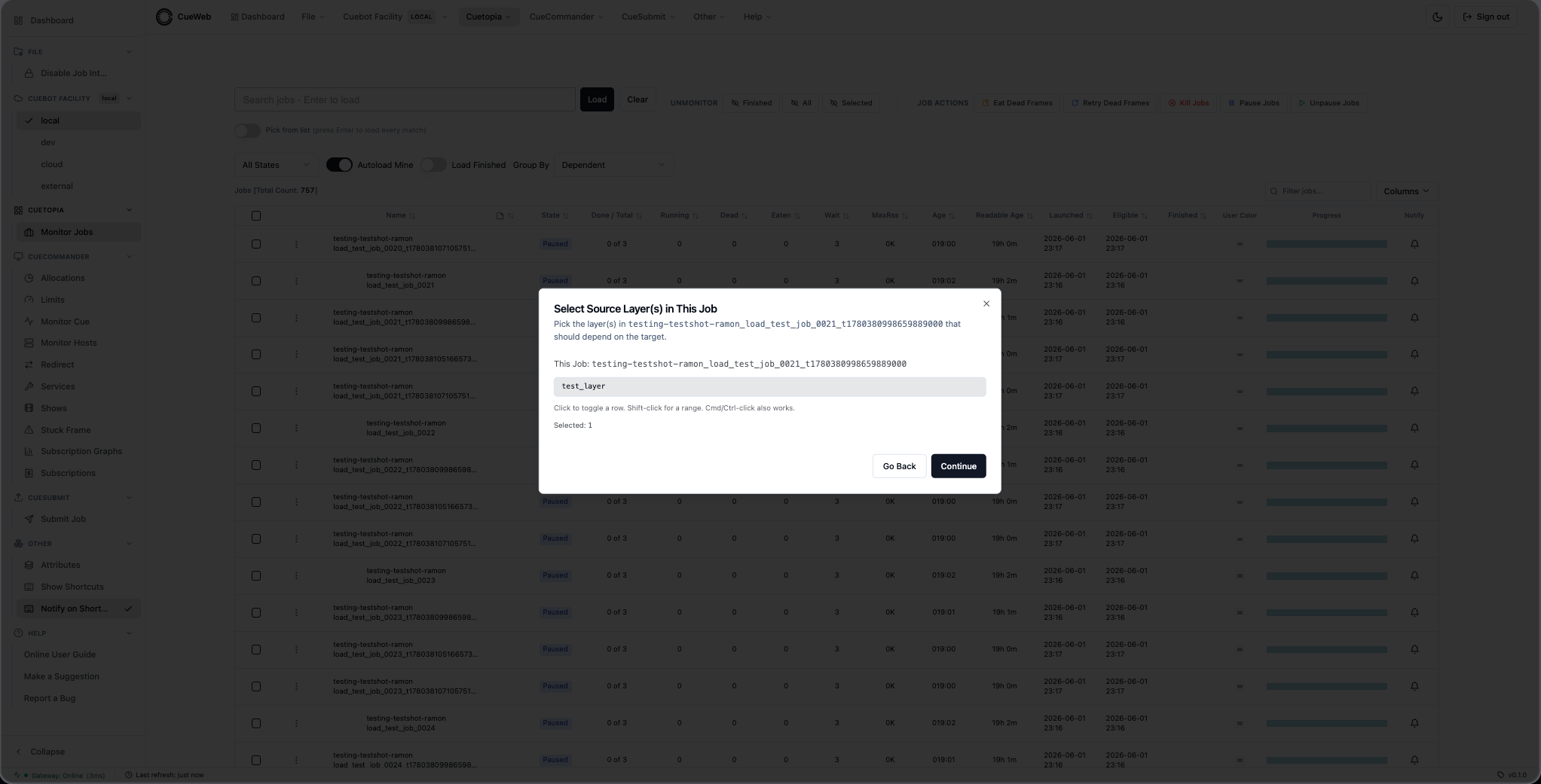

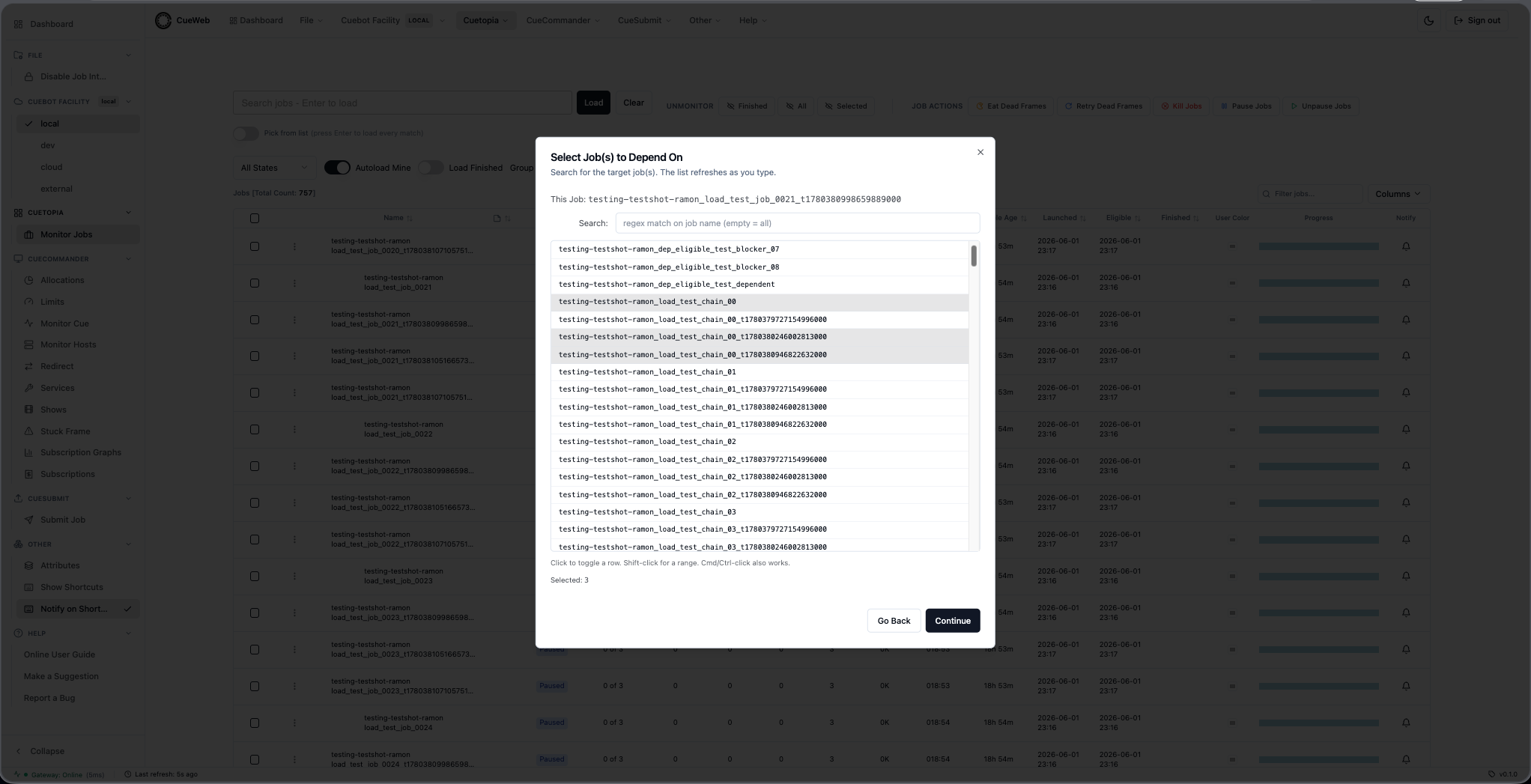

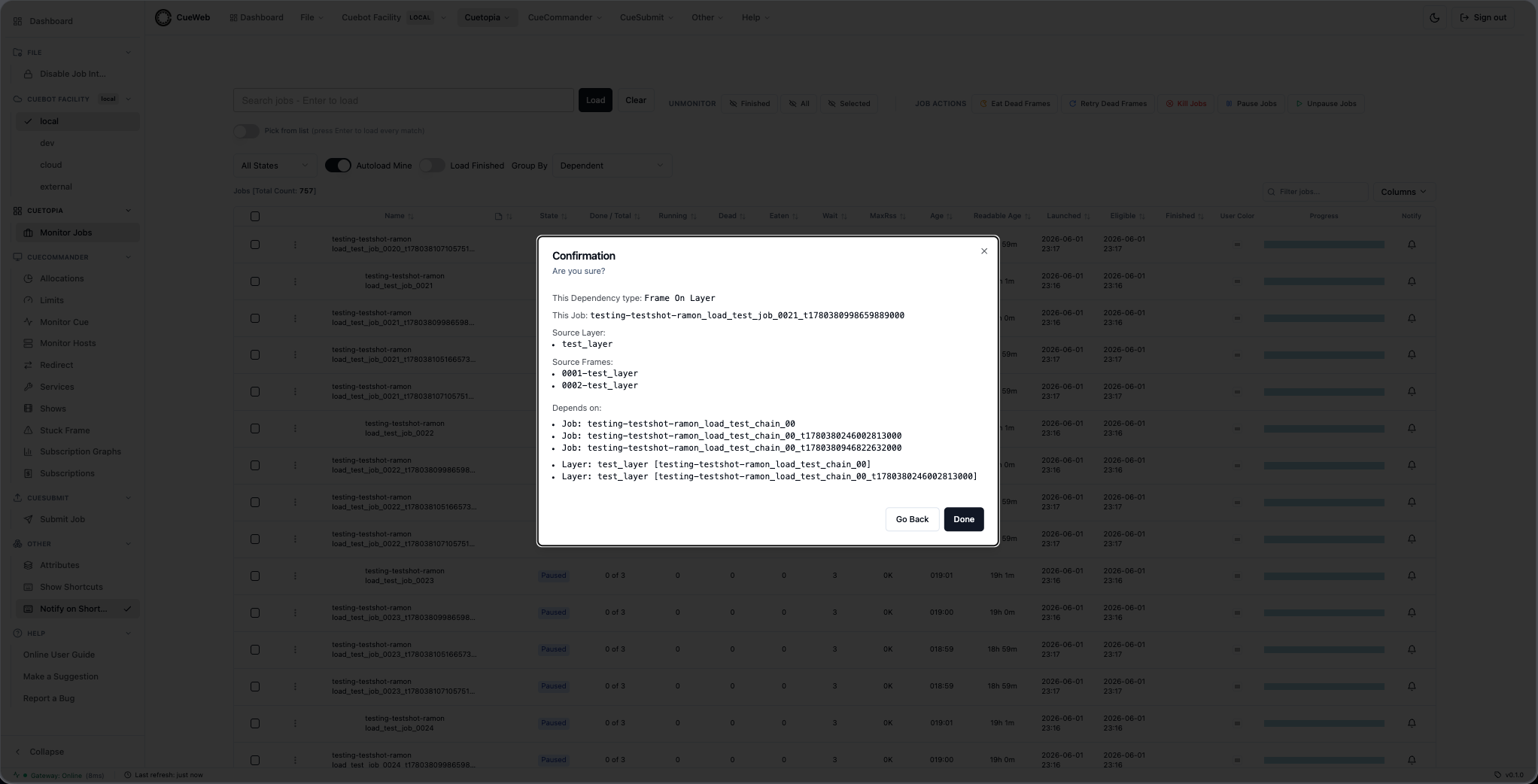

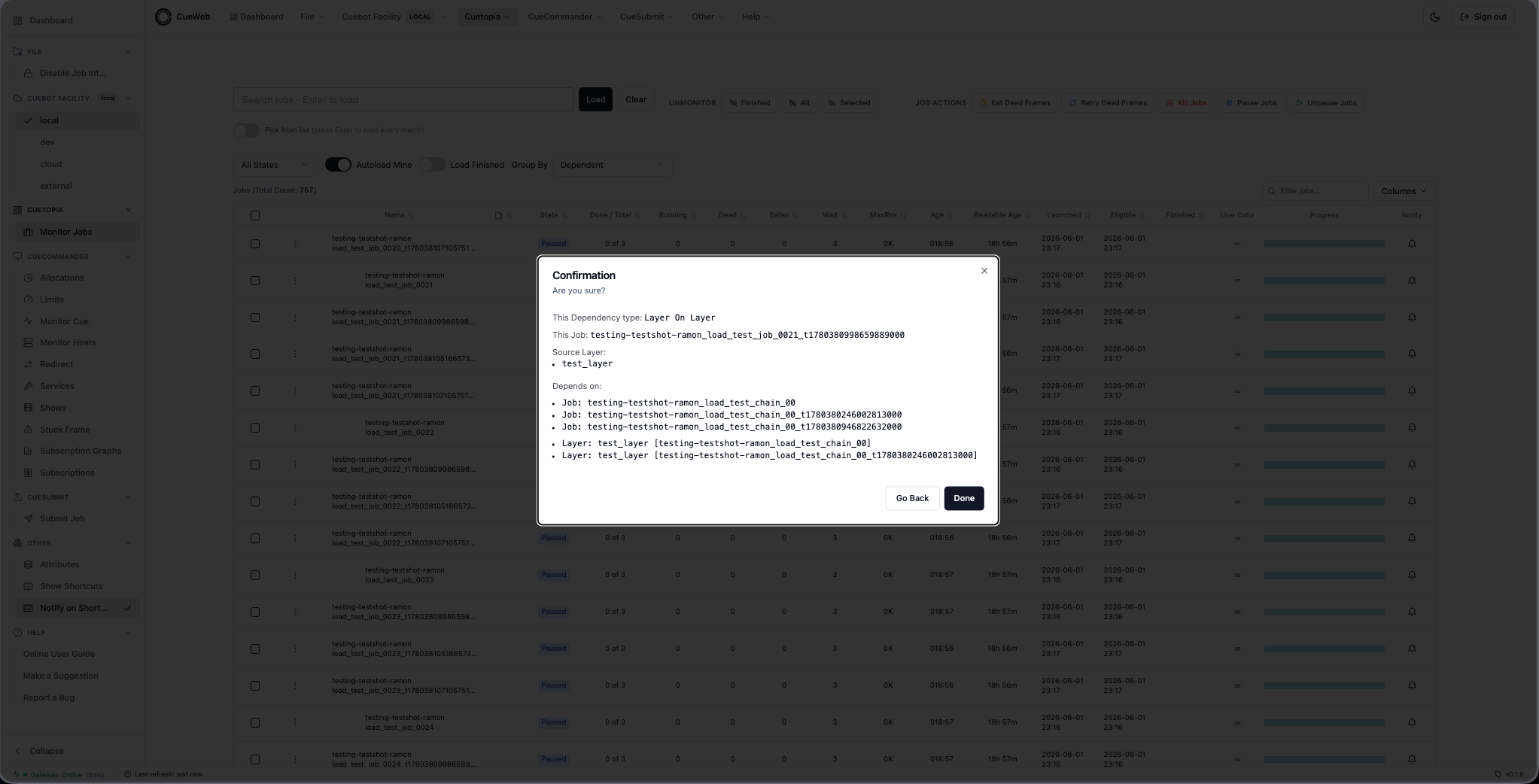

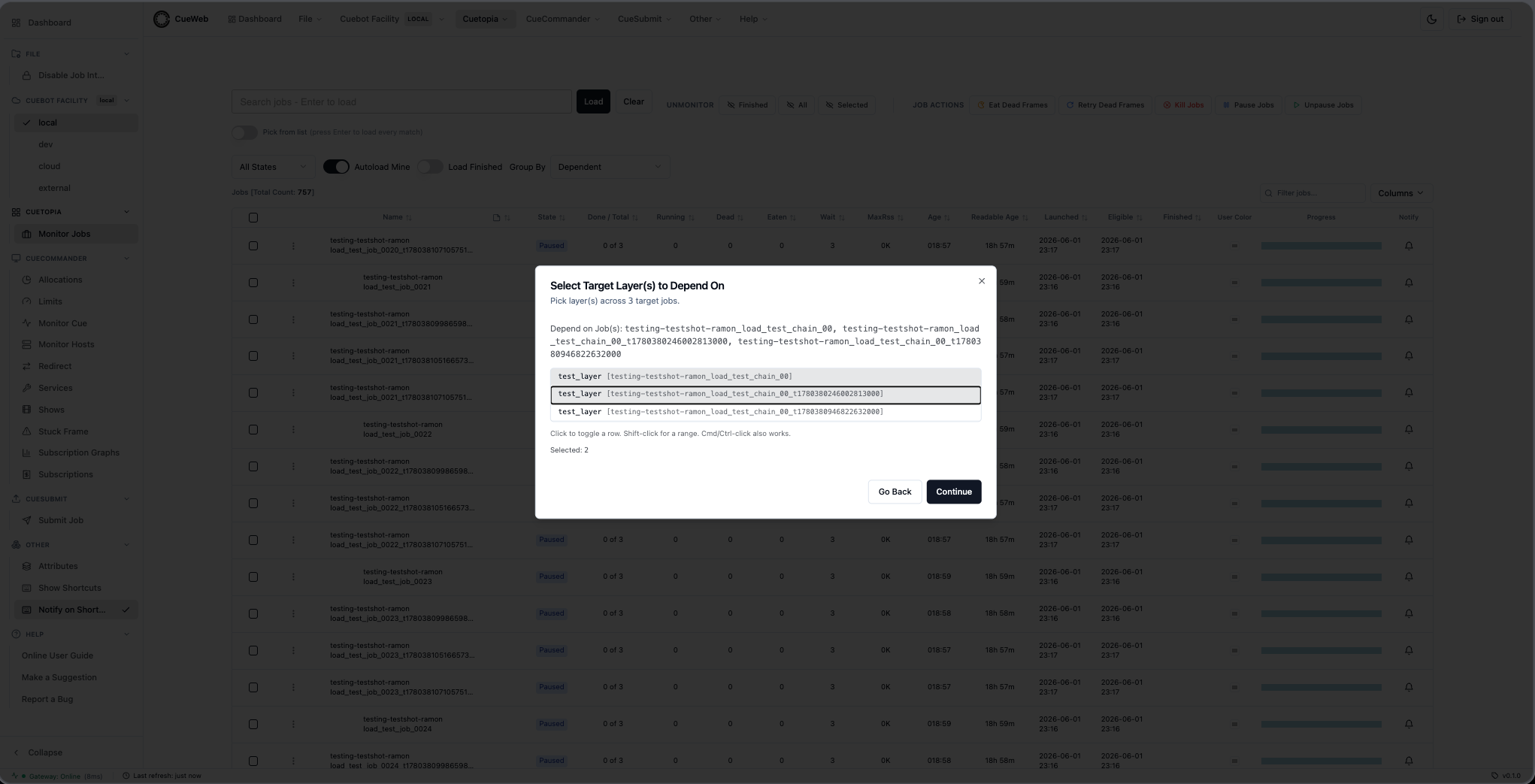

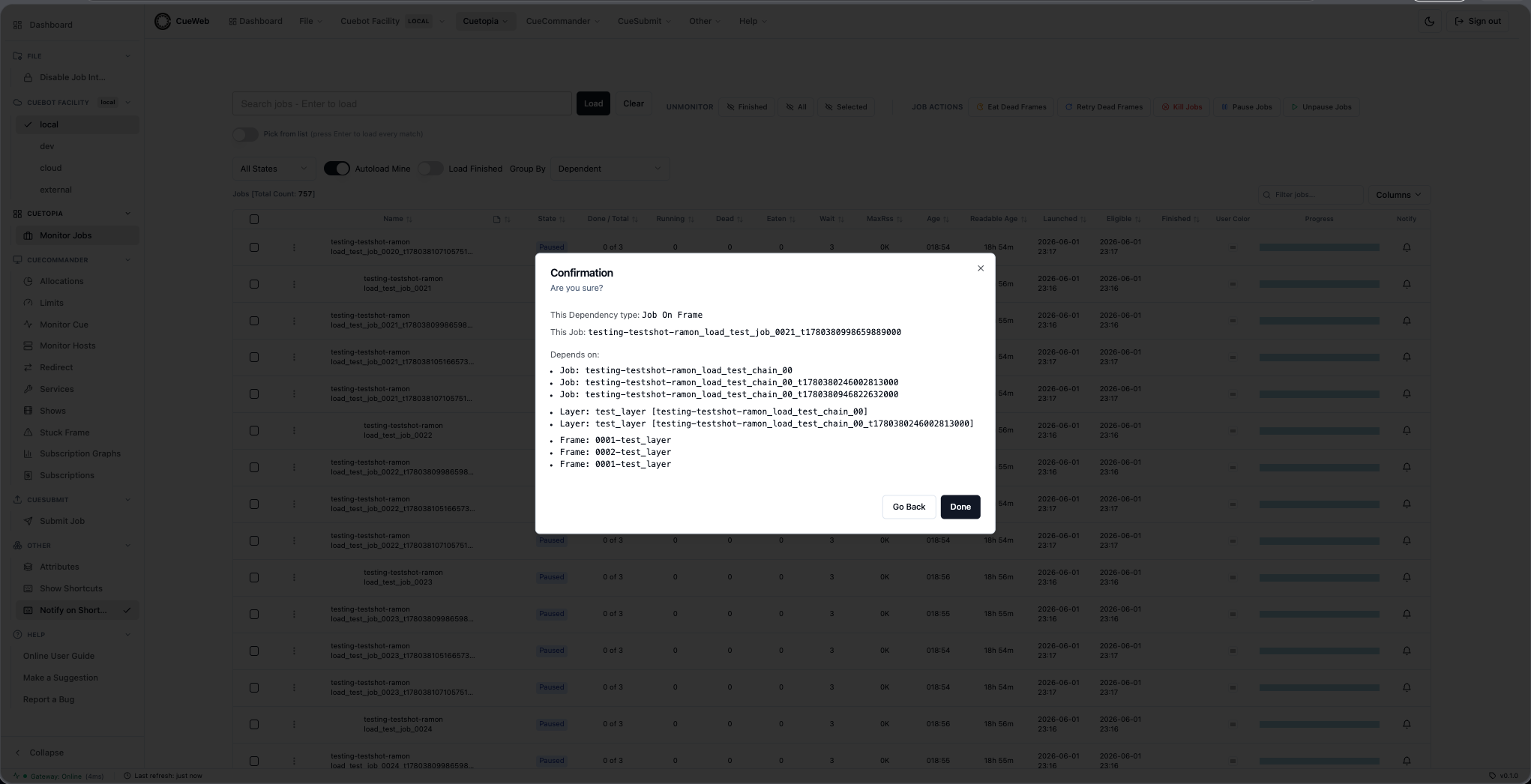

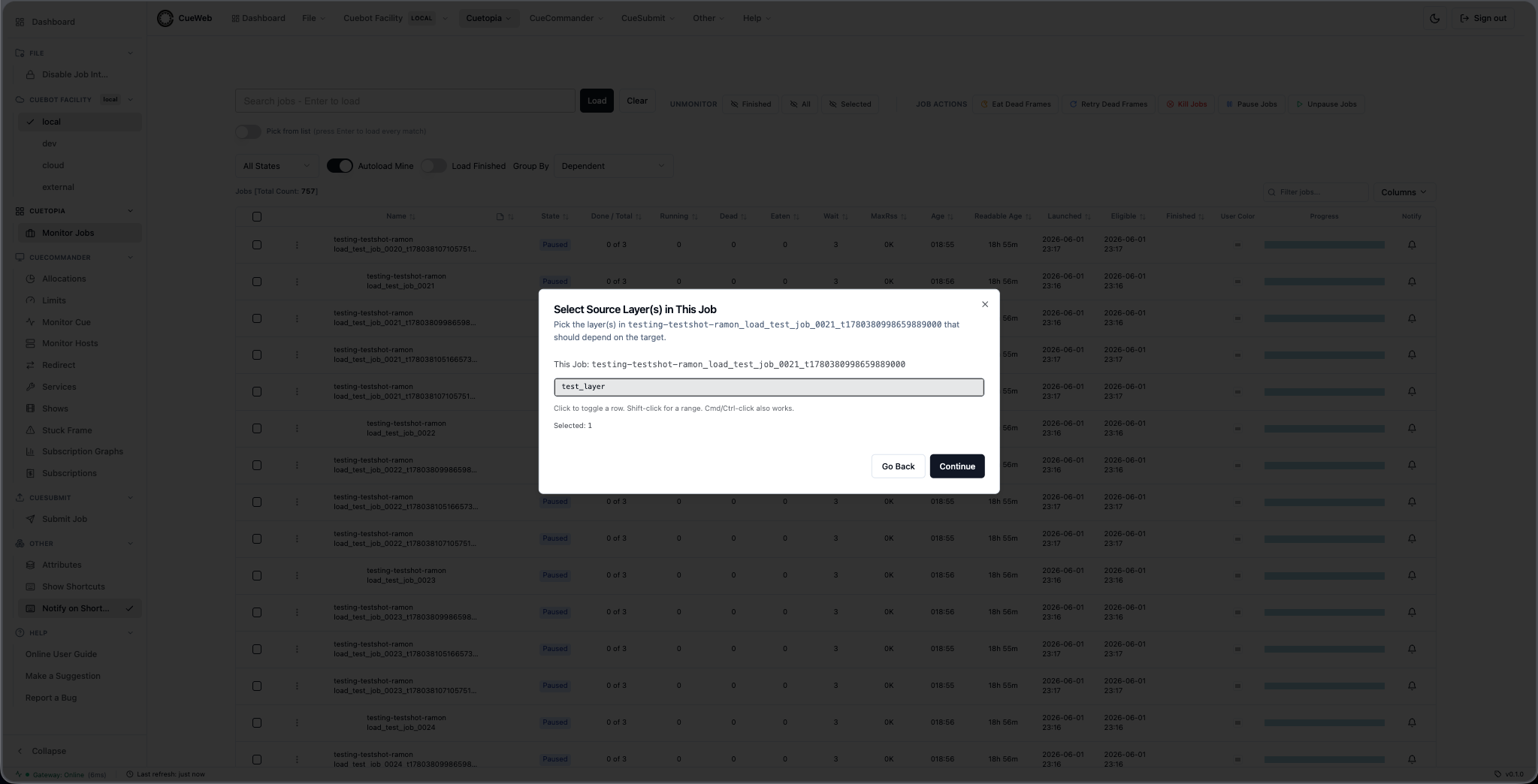

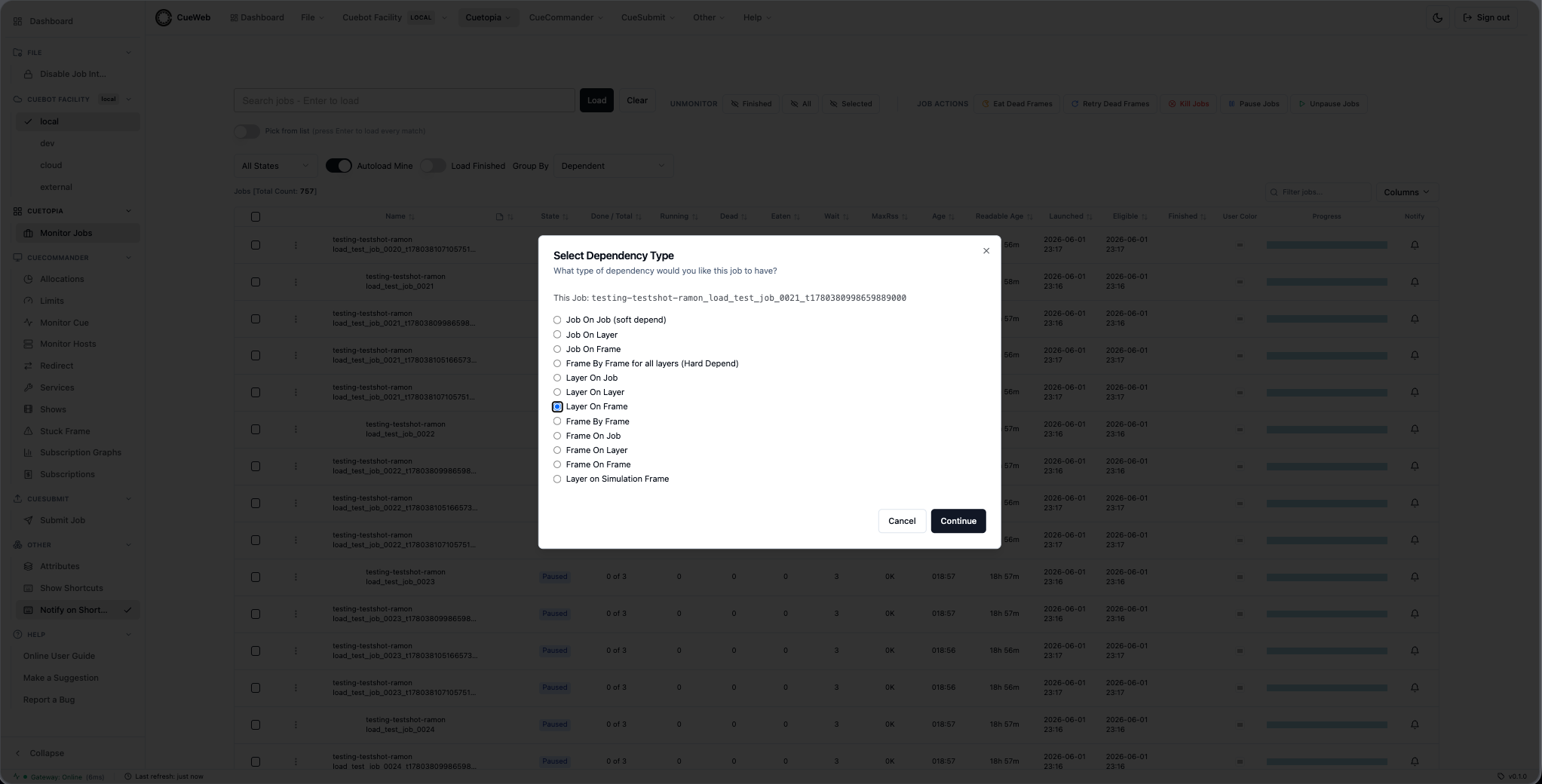

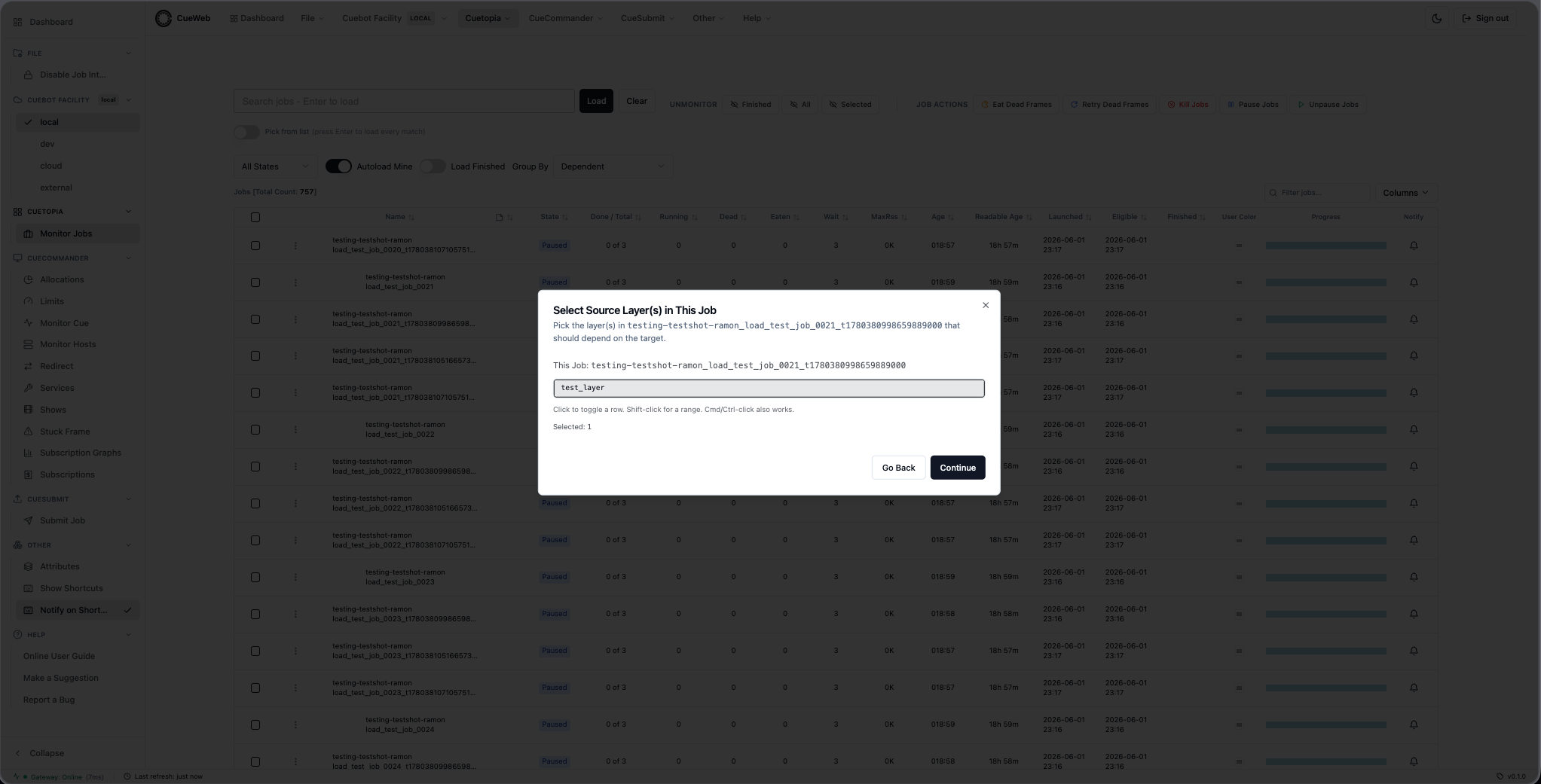

   11. Dependency Wizard dialog
       1. Wizard walk-throughs
7. CueSubmit (Job Submission UI)
   1. Sections
   2. Validation rules
   3. Username and the Edit override
   4. Defaults tuned for the OpenCue sandbox
   5. Autocomplete history
   6. Draft auto-save
   7. Reset
   8. Submit flow
   9. “View in Monitor Jobs” deep link
   10. Help popovers
8. API Integration
   1. JWT Token Generation
   2. API Endpoints Used
   3. CueWeb Proxy Routes
9. Configuration Files
   1. next.config.js
   2. Docker Configuration
10. Global Application Header
11. Left Sidebar
12. Mobile Navigation
    1. Per-row Actions button
    2. Responsive Jobs page
    3. LAN access

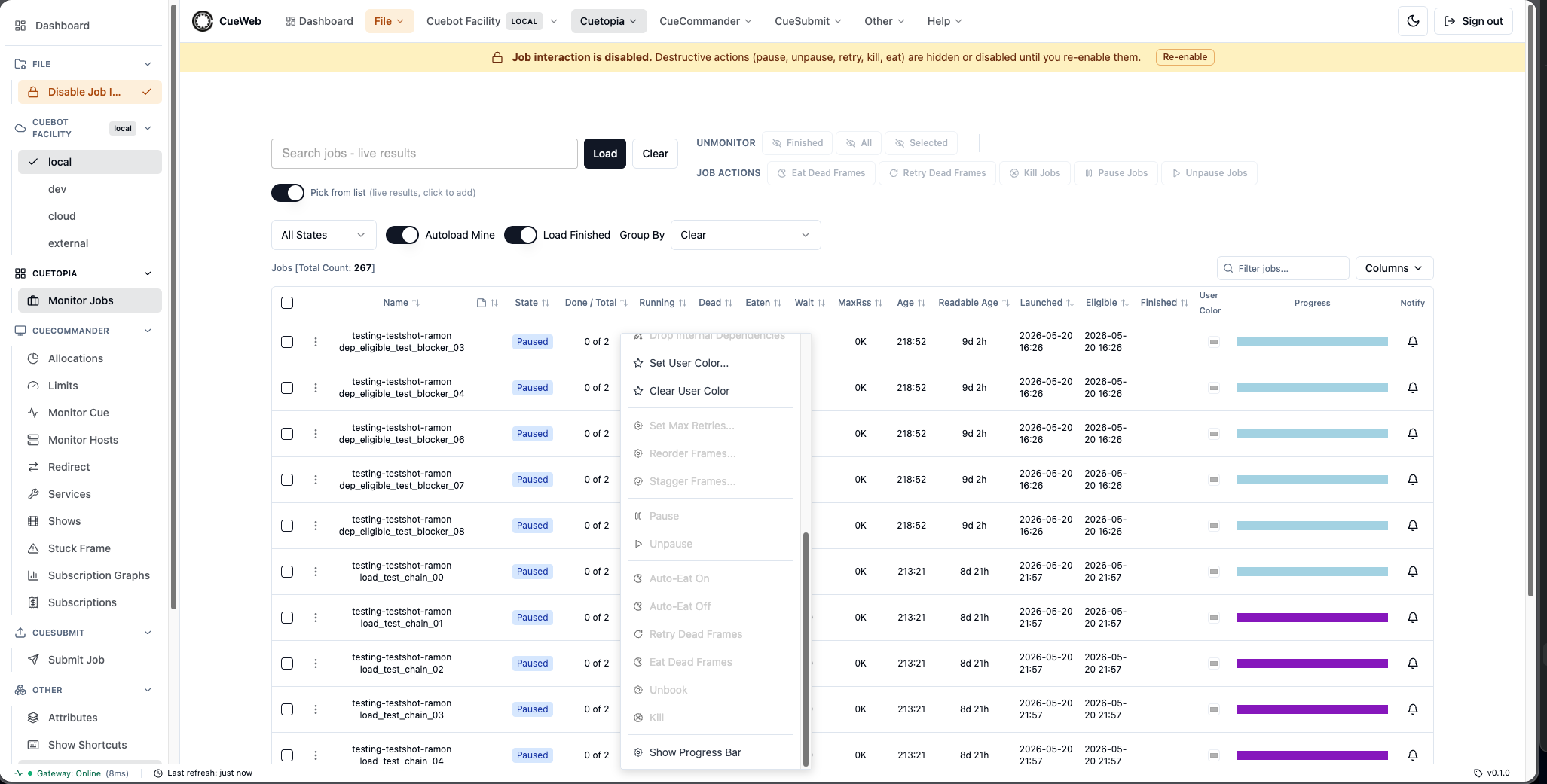

13. Disable Job Interaction (safety mode)

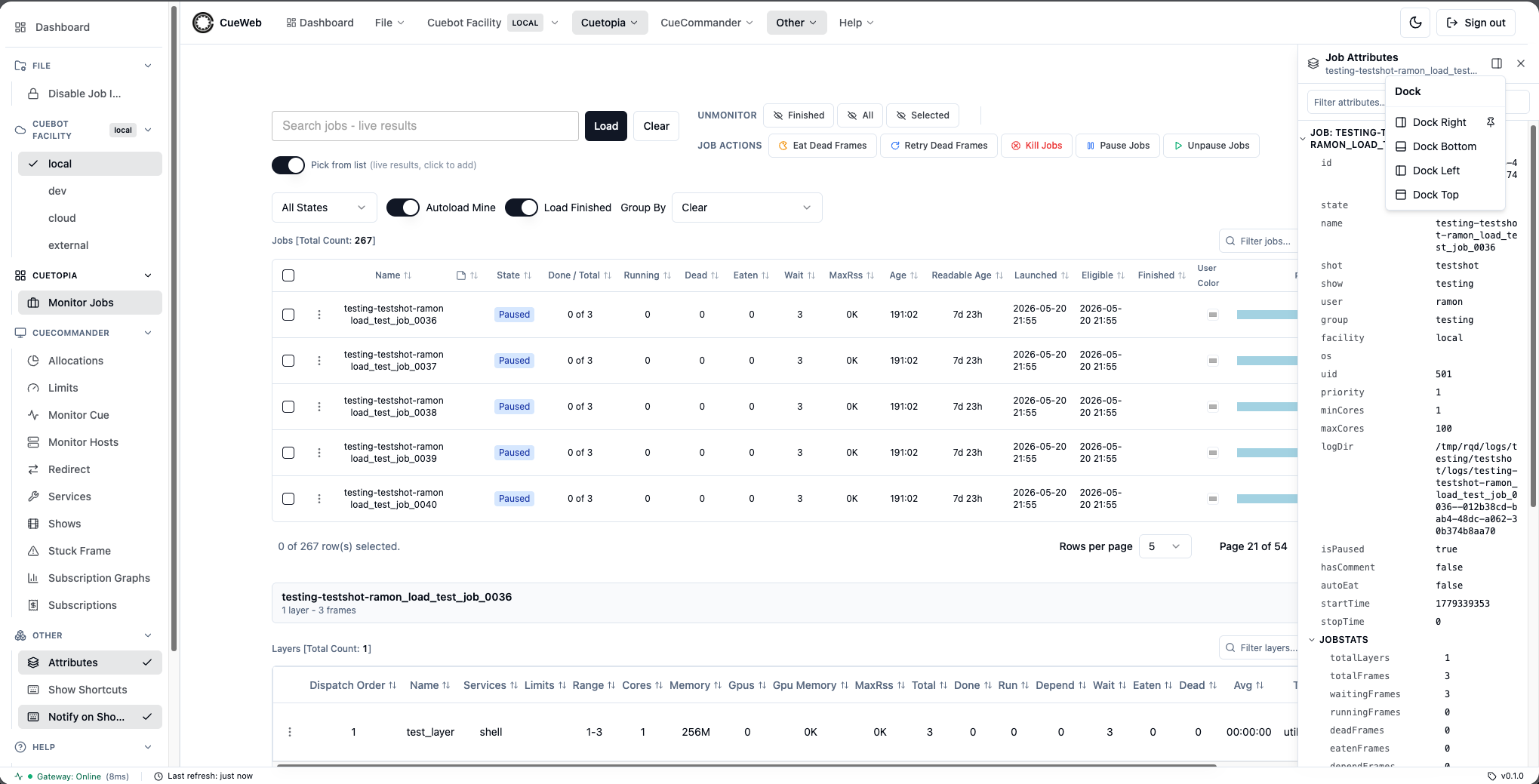

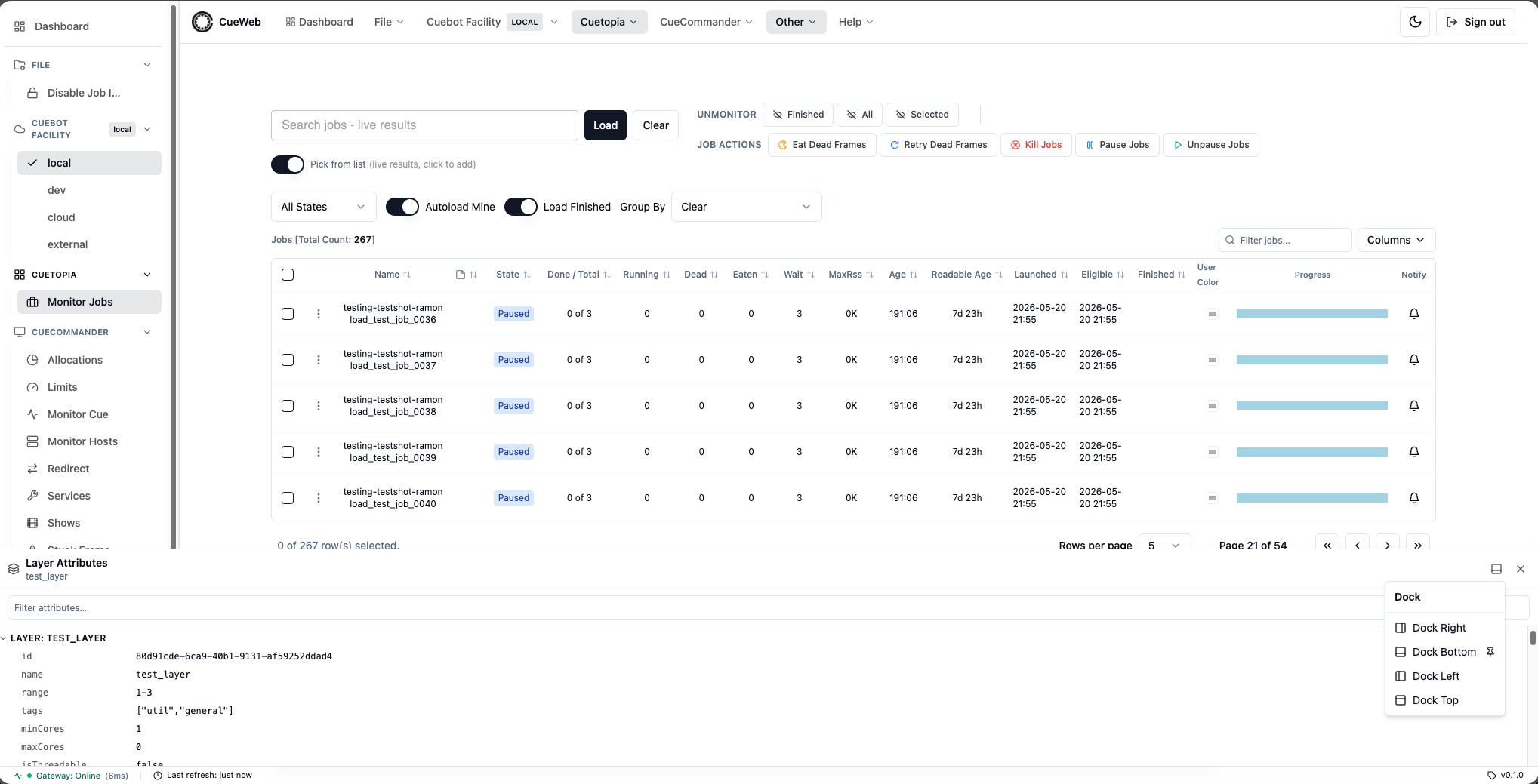

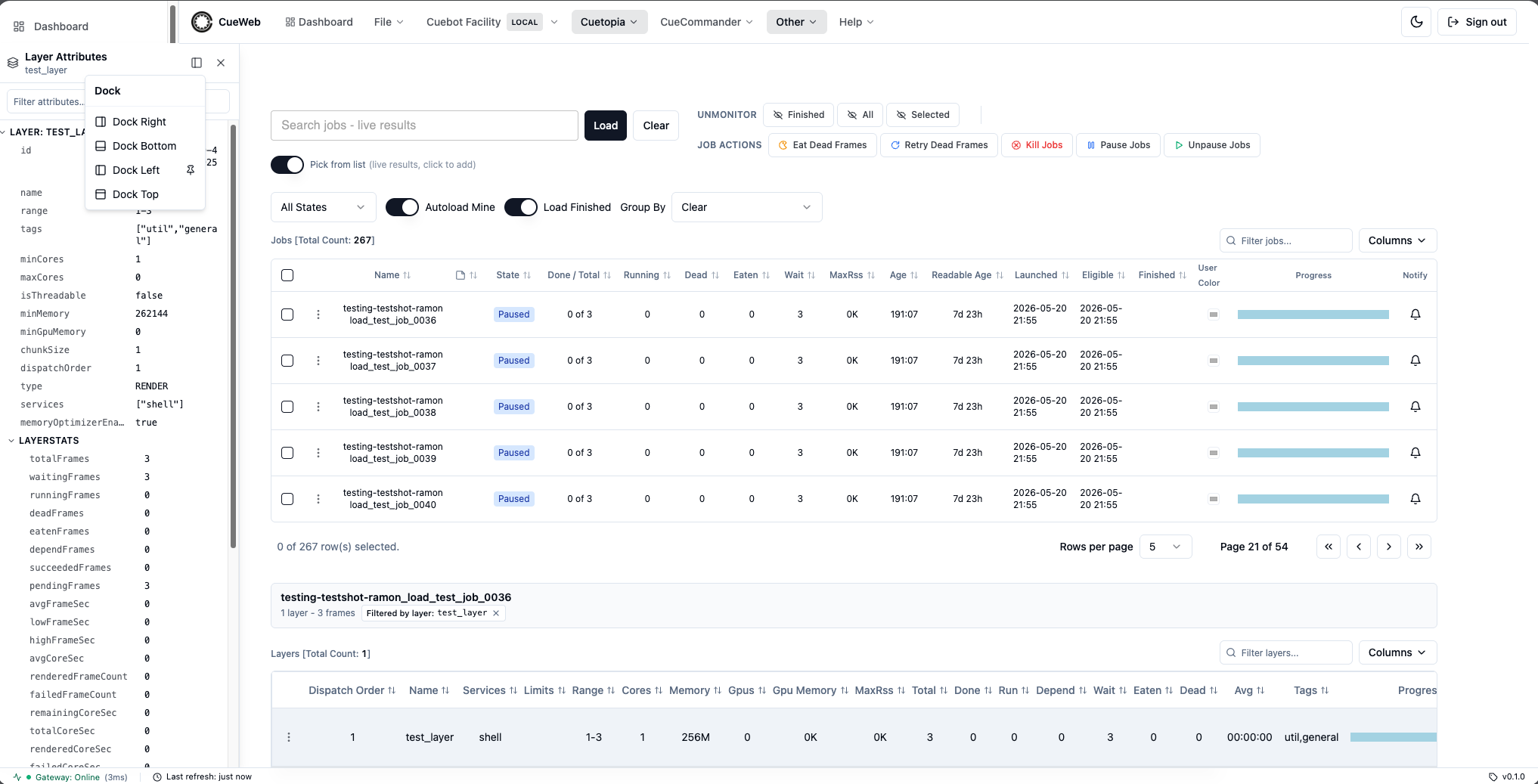

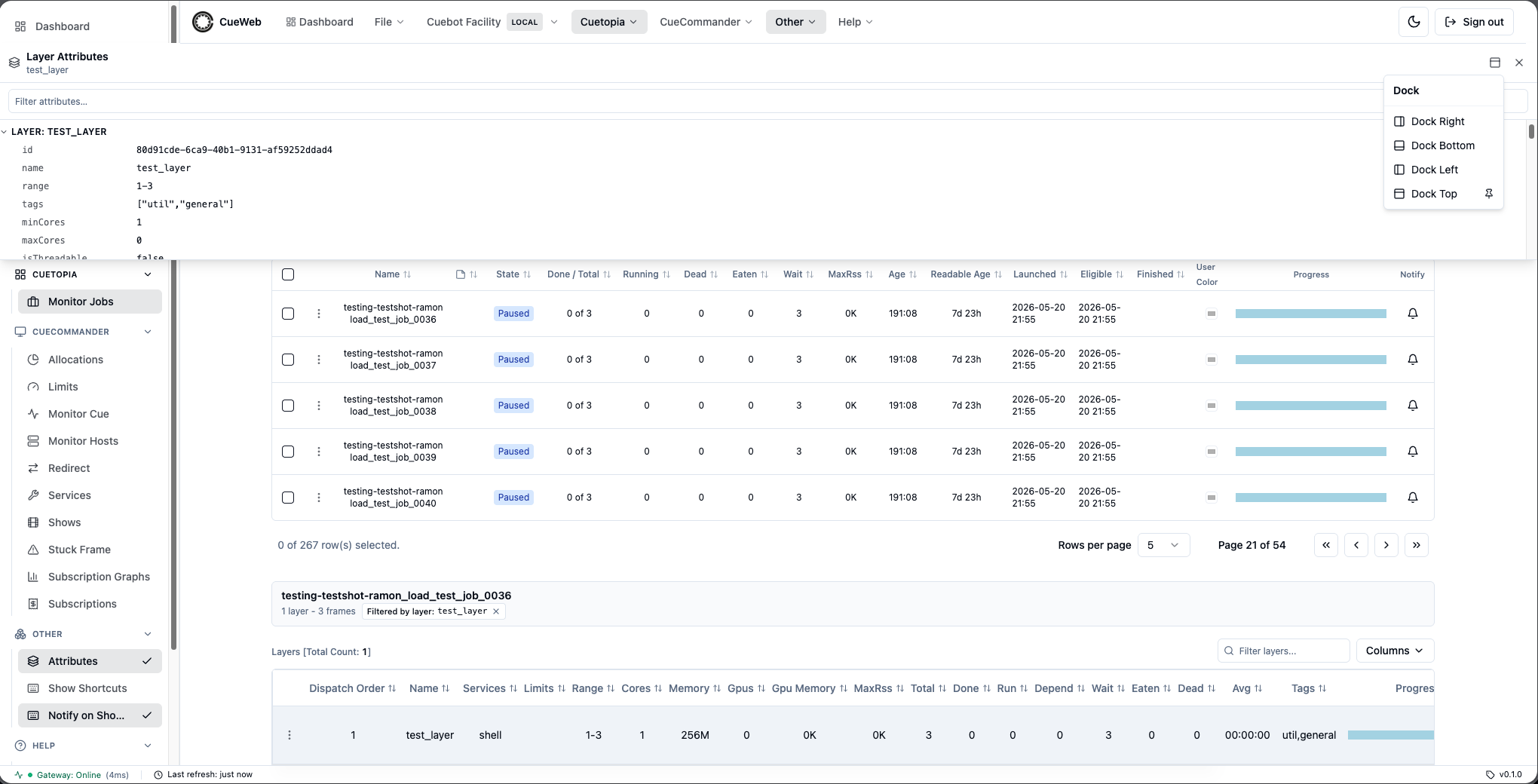

14. Attributes Panel
15. Breadcrumbs
16. Status Bar
    1. GET /api/health

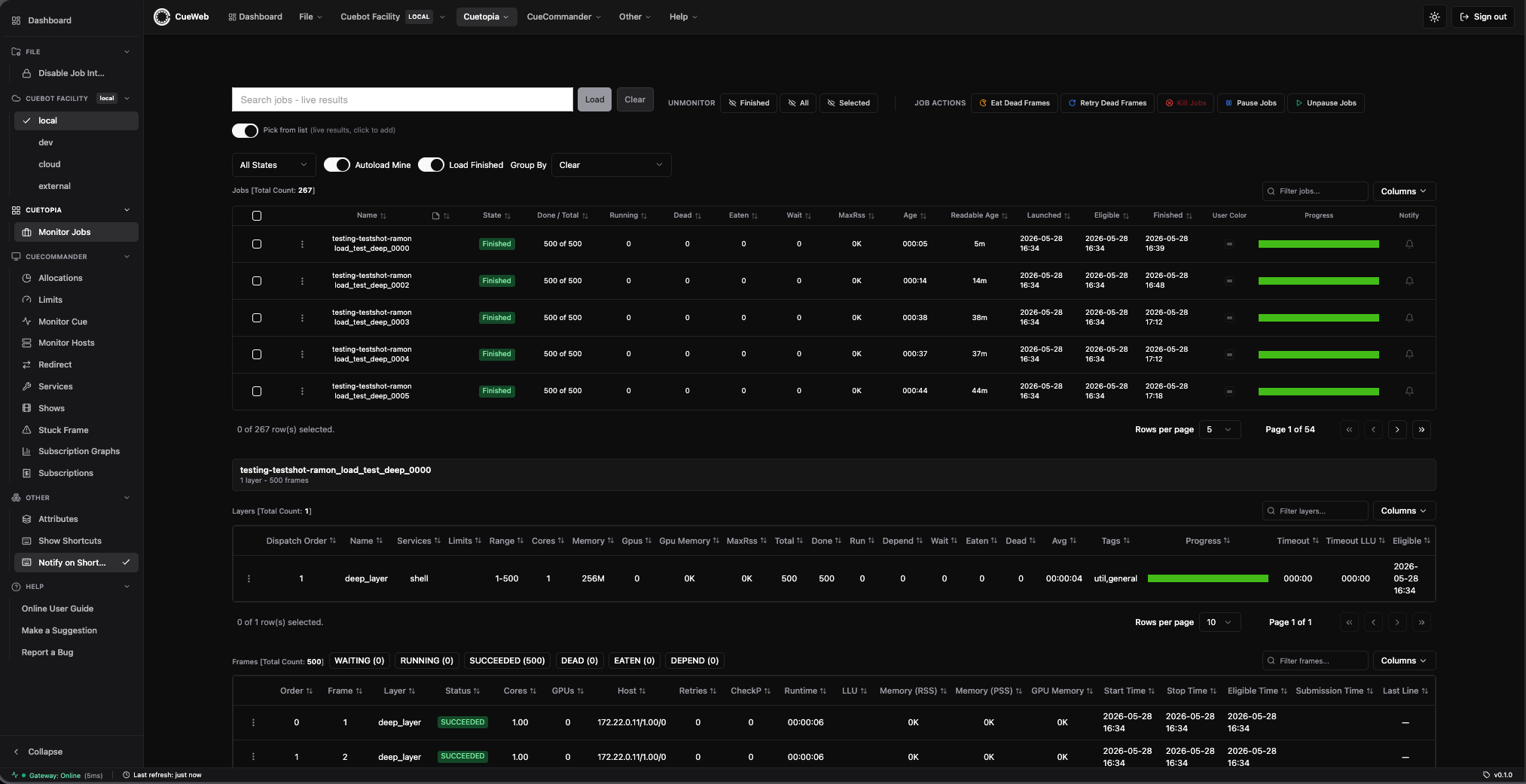

17. Theming
    1. Theme Toggle
    2. CSS Variables
18. Performance Optimization
    1. Auto-refresh
    2. Virtualization
    3. Web Workers
19. Troubleshooting
    1. Common Issues
       1. “Failed to fetch jobs”
       2. Authentication Loop
       3. JWT Token Errors
       4. Blank Page on Load
    2. Debug Mode
    3. Browser Console
20. File Structure
21. Related Documentation

---

Overview

CueWeb is a web-based application that provides browser access to OpenCue render farm management. Built with Next.js and React, it offers a responsive interface for monitoring jobs, managing frames, and controlling rendering operations.

System Requirements

Component	Requirement
Node.js	Version 18 or later
Browser	Chrome, Firefox, Safari, Edge (latest versions)
Network	Access to REST Gateway endpoint
Memory	512MB minimum for container deployment

---

Architecture

Component Stack

┌─────────────────────────────────────────────────────────┐
│                      CueWeb                              │
│  ┌─────────────┐  ┌─────────────┐  ┌─────────────────┐  │
│  │   Next.js   │  │    React    │  │   Shadcn UI     │  │
│  │   Server    │  │  Components │  │   Components    │  │
│  └─────────────┘  └─────────────┘  └─────────────────┘  │
│  ┌─────────────┐  ┌─────────────┐  ┌─────────────────┐  │
│  │  NextAuth   │  │  JWT Token  │  │   Web Workers   │  │
│  │    Auth     │  │  Generation │  │   (Filtering)   │  │
│  └─────────────┘  └─────────────┘  └─────────────────┘  │
└─────────────────────────────────────────────────────────┘
                           │
                           ▼ HTTP/JSON
┌─────────────────────────────────────────────────────────┐
│                    REST Gateway                          │
└─────────────────────────────────────────────────────────┘
                           │
                           ▼ gRPC
┌─────────────────────────────────────────────────────────┐
│                       Cuebot                             │
└─────────────────────────────────────────────────────────┘

Data Flow

1. User interacts with CueWeb UI
2. CueWeb generates JWT token using shared secret
3. HTTP request sent to REST Gateway with JWT in Authorization header
4. REST Gateway validates JWT and forwards to Cuebot via gRPC
5. Response returned through the same path

---

Environment Variables

Required Variables

Variable	Description	Example
NEXT_PUBLIC_OPENCUE_ENDPOINT	REST Gateway URL	http://localhost:8448
NEXT_PUBLIC_URL	CueWeb public URL	http://localhost:3000
NEXT_JWT_SECRET	JWT signing secret (must match REST Gateway)	your-secret-key

Optional Build-Time Variables

Variable	Description	Default
NEXT_PUBLIC_APP_VERSION	Build version shown in the bottom status bar. Falls back to cueweb/package.json#version when unset. CI typically passes the Git SHA via --build-arg.	(package.json version)

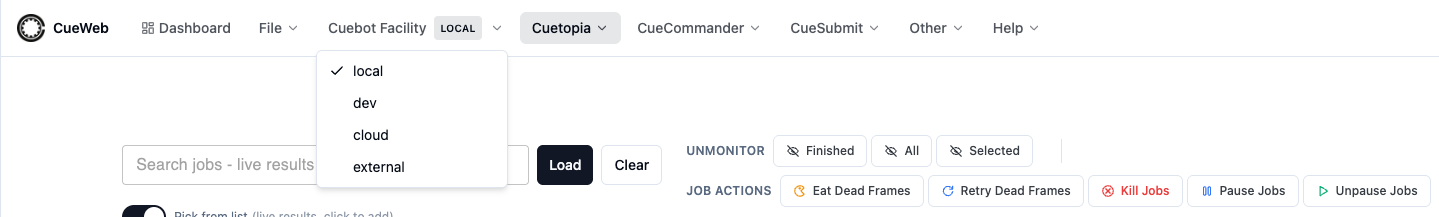

NEXT_PUBLIC_CUEBOT_FACILITIES	Comma-separated facility list shown in the Cuebot Facility menu.	local,dev,cloud,external

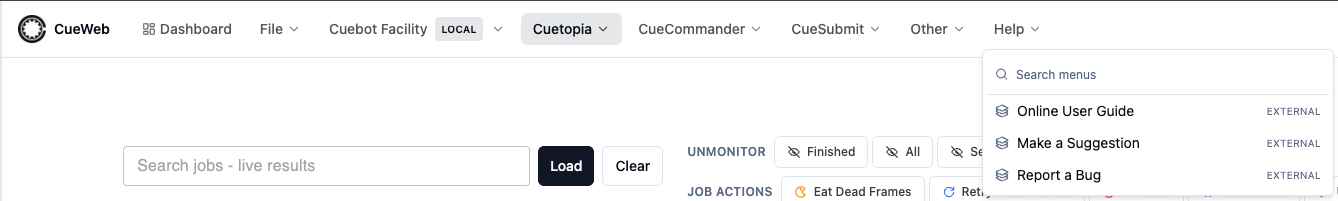

NEXT_PUBLIC_DOCS_URL	Online User Guide link in the Help menu.	https://www.opencue.io/docs/
NEXT_PUBLIC_SUGGESTIONS_URL	Make a Suggestion link in the Help menu.	CueGUI default (GitHub issues, enhancement template)
NEXT_PUBLIC_BUGS_URL	Report a Bug link in the Help menu.	CueGUI default (GitHub issues, bug_report template)
NEXT_PUBLIC_URL	Base URL the client uses when calling the Next.js API routes. Default empty = the client builds same-origin relative URLs (/api/job/getjobs, …) so CueWeb works from any host the browser reached it at (http://localhost:3000 on the dev Mac, http://<lan-ip>:3000 from a phone on the same network). Set to an absolute URL only if your deployment serves the API on a different origin than the UI.	(empty)
NEXT_PUBLIC_LOG_EDITOR_URL	URL template for the Frame context menu’s View Log on <editor> item. The literal {path} is substituted with the absolute rqlog path at click time. Common values: vscode://file{path}, vscode-insiders://file{path}, subl://open?url=file://{path}, txmt://open?url=file://{path}, idea://open?file={path}. Empty hides the menu item entirely. The sandbox docker-compose.yml defaults to vscode://file{path}.	vscode://file{path} (sandbox) / empty (Dockerfile default)
NEXT_PUBLIC_EMAIL_DOMAIN	Email domain used to derive the Email Artist… dialog defaults: <user>@<domain> for To, <show>-<suffix>@<domain> for From and CC. See Email Artist dialog.	your.domain.com
NEXT_PUBLIC_EMAIL_SUPPORT_SUFFIX	Per-show support alias suffix used in the Email Artist… dialog’s From / CC defaults (<show>-<suffix>@<domain>). Matches CueGUI’s “production support team” alias convention.	pst
NEXT_PUBLIC_EMAIL_REQUEST_CORES_SUFFIX	Per-show support alias suffix used in the Request Cores… dialog’s CC default (<show>-<suffix>@<domain>). Distinct from the Email Artist pst alias because CueGUI’s RequestCoresDialog traditionally targets a different team queue.	support
NEXT_PUBLIC_SUBSCRIBE_FROM_EMAIL	Informational From label shown by the Subscribe to Job dialog. The actual email sender is whatever Cuebot is configured with - this is purely a UI hint. See Subscribe to Job dialog.	opencue-noreply@<NEXT_PUBLIC_EMAIL_DOMAIN>

Authentication Variables

Variable	Description	Example
NEXT_PUBLIC_AUTH_PROVIDER	Comma-separated auth providers	google,okta,github,ldap
NEXTAUTH_URL	NextAuth callback URL	http://localhost:3000
NEXTAUTH_SECRET	NextAuth session secret	random-secret

Note: Set NEXT_PUBLIC_AUTH_PROVIDER= (empty) for no authentication.

OAuth Provider Variables

Okta

Variable	Description
NEXT_AUTH_OKTA_CLIENT_ID	Okta application client ID
NEXT_AUTH_OKTA_CLIENT_SECRET	Okta application client secret
NEXT_AUTH_OKTA_ISSUER	Okta issuer URL (e.g., https://company.okta.com)

Google

Variable	Description
GOOGLE_CLIENT_ID	Google OAuth client ID
GOOGLE_CLIENT_SECRET	Google OAuth client secret

GitHub

Variable	Description
GITHUB_ID	GitHub OAuth application ID
GITHUB_SECRET	GitHub OAuth application secret

LDAP

Variable	Description
LDAP_URI	LDAP server URI (e.g., ldaps://ldap.company.com:636)
LDAP_LOGIN_DN	Login DN template with {login} placeholder
LDAP_CERTIFICATE	Path to CA certificate for TLS verification

Monitoring Variables

Variable	Description
SENTRY_DSN	Sentry Data Source Name for error tracking
SENTRY_ENVIRONMENT	Sentry environment name
SENTRY_URL	Sentry server URL
SENTRY_ORG	Sentry organization
SENTRY_PROJECT	Sentry project name

---

User Interface Components

Jobs Table

The main jobs table (cueweb/app/jobs/columns.tsx + cueweb/app/jobs/data-table.tsx) displays rendering jobs with the following columns, in their default order:

Column	Description	Sortable
(select)	Row checkbox. Anchored at the leftmost position - column reorder skips over it.	No
Name	Two-line cell: <show>-<shot>-<user> on top, rest of the job name underneath.	Yes
Comments	Sticky-note icon when the job has one or more comments; empty otherwise. Sortable so users can pull jobs-with-comments to the top (CueGUI parity: JobMonitorTree’s note-icon column). Clicking the icon opens the per-job Comments page in a new tab.	Yes
State	Current job state badge (see Job States).	Yes
Done / Total	<succeededFrames> of <totalFrames>.	Yes
Running	Running frame count.	Yes
Dead	Failed frame count.	Yes
Eaten	Eaten frame count.	Yes
Wait	Waiting frame count.	Yes
MaxRss	Max RSS observed across the job’s frames (human-readable, e.g. 512M).	Yes
Age	Wall-clock job age formatted HHH:MM.	Yes
Readable Age	Same age in human-friendly form (e.g. 2h 14m).	Yes
Launched	job.startTime formatted YYYY-MM-DD HH:MM. Mirrors CueGUI’s “Launched” column.	Yes
Eligible	job.eligibleTime formatted the same way. Blank when the field is zero / unset.	Yes
Finished	job.stopTime. Blank while the job is still running.	Yes
User Color	Per-job color swatch backed by localStorage["cueweb.userColors"] (map of jobId -> #rrggbb). Click the swatch to pick a color from the native picker; right-click or click the × button to clear. Cross-tab sync via the standard storage event plus an internal cueweb:user-colors CustomEvent for same-tab listeners.	No
Progress	Stacked frame-state progress bar with a hover tooltip showing exact frame counts and percentages for SUCCEEDED, RUNNING, WAITING, DEPEND, and DEAD states.	No
Notify	Per-row bell button to subscribe to a notification when the job reaches FINISHED. See Job-finished notifications.	No

Layers Table

The inline Layers table (cueweb/app/layers/layer-columns.tsx, rendered by SimpleDataTable inside JobDetailsInline) ships these columns in default order:

Column	Description
Dispatch Order	Per-layer dispatch order assigned by Cuebot.
Name	Layer name (clickable to filter the Frames panel and populate the Attributes panel).
Services	Render services declared on the layer.
Limits	Resource-limit names.
Range	Frame range (e.g. 1-100x2).
Cores	Minimum reserved cores.
Memory	Minimum reserved memory (human-readable).
Gpus	Minimum reserved GPUs.
Gpu Memory	Minimum reserved GPU memory.
MaxRss	High-water RSS observed on the layer.
Total	Total frame count on this layer.
Done	Succeeded frames.
Run	Running frames.
Depend	Frames in DEPEND state.
Wait	Waiting frames.
Eaten	Eaten frames.
Dead	Dead frames.
Avg	Average frame seconds, formatted HH:MM:SS.
Tags	Layer tags.
Progress	Same stacked animated bar as the Jobs table, fed by getLayerProgressSegments (cueweb/app/utils/layer_progress_utils.ts). Hover tooltip shows per-state counts.
Timeout	Layer timeout (HHH:MM).
Timeout LLU	Last-log-update timeout (HHH:MM).
Eligible	layer.eligibleTime formatted YYYY-MM-DD HH:MM.

Frames Table

The Frames table (cueweb/app/frames/frame-columns.tsx, rendered by SimpleDataTable) ships these columns:

Column	Description
Order	Dispatch order assigned by Cuebot.
Frame	Frame number.
Layer	Layer name (clickable link into the frame log viewer).
Status	Frame state badge (see Frame States).
Cores	Cores assigned to the running frame (parsed from lastResource).
GPUs	GPUs assigned.
Host	lastResource string (host/cores/gpus).
Retries	Retry count.
CheckP	Checkpoint count.
Runtime	(stop - start) if stopped, else (now - start), formatted HH:MM:SS.
LLU	Elapsed time since the frame’s log was last updated (now - lluTime, formatted HH:MM:SS). Only populated for RUNNING frames; blank for WAITING / DEPEND / SUCCEEDED / DEAD to match CueGUI.
Memory (RSS)	used_memory while RUNNING, max_rss after stop.
Memory (PSS)	used_pss while RUNNING, max_pss after stop.
GPU Memory	used_gpu_memory while RUNNING, max_gpu_memory after stop.
Remain	Placeholder column for CueGUI’s ETA buffer; renders an em-dash until the predictor is wired into CueWeb. Hidden by default in the inline panel.
Start Time	frame.startTime formatted YYYY-MM-DD HH:MM.
Stop Time	frame.stopTime formatted YYYY-MM-DD HH:MM.
Eligible Time	frame.eligibleTime formatted YYYY-MM-DD HH:MM.
Submission Time	frame.submissionTime formatted YYYY-MM-DD HH:MM.
Last Line	Placeholder column for the per-frame log-tail fetch; renders an em-dash until that fetch is wired in.

Columns dropdown (visibility + ordering)

Every data table (Jobs, Layers, Frames) renders a Columns dropdown in its per-table toolbar.

Control	Behavior
Reset to Default	Pinned at the top of the dropdown as a secondary button. Clears both column-visibility and column-order back to whatever the column definitions declare.
Checkbox (per row)	Toggle the column’s visibility. The menu stays open after every click so the user can chain several toggles without reopening it.
← / → (per row)	Nudge the column one slot left / right within the user-reorderable subset. Non-hideable system columns (the row-select checkbox) stay anchored - swaps never reach across them. Buttons are disabled at the bounds of the reorderable set.

Persistence keys:

Table	Visibility key	Order key
Jobs	columnVisibility	columnOrder
Layers	cueweb.layers.columnVisibility	cueweb.layers.columnOrder
Frames	cueweb.frames.columnVisibility	cueweb.frames.columnOrder

Implementation: each table wires TanStack’s state.columnOrder + onColumnOrderChange and reads/writes the matching localStorage key. The reorder helper (moveColumn) operates on the hideable subset of columnOrder so non-hideable columns stay in their original positions.

Per-table substring filter

Each data table renders a small Filter jobs / layers / frames… <input type="search"> next to its Columns dropdown.

Aspect	Description
Source	TanStack’s built-in globalFilter state + getFilteredRowModel().
Match	Case-insensitive substring against every visible column’s accessor value (status badge text, runtime strings, etc. - everything that lands in the table’s flat representation).
Pagination	Auto-resets to page 1 on every keystroke so the user never sits on an empty page after narrowing.
Clear	An × button appears inside the input once it has a value; clears the filter in one click. Pressing Esc while focused also clears the native <input type="search">.
Scope	Client-side only - distinct from the top-of-page “Search jobs - Enter to load” box on the Jobs page which hits Cuebot to load matching jobs.

Group By (Jobs table)

The Jobs table toolbar has a Group By dropdown that mirrors CueGUI’s MonitorJobsPlugin grouping modes:

Mode	Layout	Notes
Clear	Flat list (default).	No grouping.
Dependent	Parent / child dependency tree.	The Name column renders a chevron + depth-based indent in front of each row. A job that other monitored jobs depend on becomes a parent; the dependents nest under it. Click the chevron to collapse / expand a subtree.
Show	One collapsible header per show.	Header text is the show name ((no show) when missing); count in parentheses.
Show-Shot	<show> - <shot> headers.	Same collapse behavior.
Show-Shot-Username	<show> - <shot> - <user> headers.	Same.

Dependent tree details:

• On entry, the dialog fires /job.JobInterface/GetWhatDependsOnThis for every monitored job in parallel and caches the result in component state, keyed by jobId. Adding a new monitored job fires one extra RPC; unmonitoring a job drops the cache entry. The cache is cleared when the page reloads.
• The tree builder walks the cached graph: a job’s children are the monitored jobs whose depend_er_job field appears in the parent’s depend list (active depends only, matching CueGUI). Jobs that appear as a child of any other monitored job are pulled under that parent; everyone else is a root.
• The Name column reads table.options.meta.dependencyTree (a Map<jobId, { depth, hasChildren }> plus a toggle(jobId) callback) and renders the chevron + indent. Empty dependencyTree falls back to the default centered layout.
• Filtering, sorting, and pagination all still apply on top of the tree: an orphaned child (parent filtered out) is re-rooted at depth 0 so the row never disappears silently.

Inline JobDetails (Layers + Frames panel)

Clicking a row in the Jobs table populates JobDetailsInline (cueweb/components/ui/job-details-inline.tsx), which renders the Layers and Frames tables stacked below the jobs grid (CueGUI Monitor Jobs + Monitor Job Details parity).

Behavior	Description
Layers panel	Lists every layer in the selected job, including the Progress bar and Eligible time.
Layer-click	Toggles a frames-table filter to that layer (frame.layerName === layer.name) and pushes the layer’s attributes into the docked Attributes panel. Clicking the same layer again clears the filter and re-selects the job in Attributes.
Frames panel	Lists every frame in the job (or the layer-filtered subset). Total count shows X of Y when filtered.
Refresh	Both panels poll every 5 seconds, with cancellation guards so a stale response cannot overwrite a fresh selection.
Log viewer	Double-clicking any frame row opens the log viewer (/frames/<frameName>?frameId=...&frameLogDir=...).

Job dependency graph panel

A read-only, interactive node graph of a job’s dependency tree, rendered with React Flow (@xyflow/react) and laid out with dagre. It mirrors CueGUI’s JobMonitorGraph Monitor-Jobs dock. Lives in JobDependencyGraph (cueweb/components/ui/job-dependency-graph.tsx).

Toggle. The checkable Cuetopia → View Job Graph entry (header dropdown in app-header.tsx, sidebar in app-sidebar.tsx, both expanded and collapsed) drives a shared useShowDependencyGraph() hook. The hook persists to localStorage["cueweb.jobs.showDependencyGraph"] and syncs in-tab via the cueweb:show-dependency-graph-changed CustomEvent and cross-tab via the storage event, so the menu items, the panel header toggle, and the panel itself stay in lockstep without prop drilling.

Mounting. When the toggle is on, JobDetailsInline (cueweb/components/ui/job-details-inline.tsx) renders the graph as a third stacked panel (id="job-dependency-graph-panel") under Layers and Frames, with a header naming the focus job and a close button.

Behavior	Description
Tree walk	Breadth-first search from the focus job over both directions - GetDepends (downstream) and GetWhatDependsOnThis (upstream, active depends only) - bounded by maxDepth (default 4) and a visited-job set to break cycles. Mirrors CueGUI’s JobMonitorGraph.getRecursiveDependentJobs.
Name resolution	Each BFS hop first resolves a job name to its UUID via /api/job/getjobs with an anchored ^name$ regex (Cuebot rejects name-only depend lookups). Resolved IDs are memoized in a Map, so a 12-job chain costs ~12 lookups across the whole walk, not 12 per hop.
Silent fetches	All BFS requests go through a silentPost helper that bypasses accessGetApi. Partial failures (jobs in other shows, unmonitored/finished + pruned) return null instead of cascading red “Resource not found” toasts.
Nodes	Custom DependencyNode renderer: monospace, truncated label with the full name in a title tooltip, a kind label and color-coded left border (JOB = blue, LAYER = amber, FRAME = emerald), and a stronger ring on the focus job. Layer / frame nodes carry a hierarchical label so their parent job/layer is visible.
Edges	Directed upstream → downstream (top-to-bottom); animated when the depend is active.
Navigation	Clicking a node calls onNodeNavigate(jobName) if supplied, else router.push("/jobs/<jobName>?tab=overview").
Theme-aware	dagre lays out fresh per call (no module-level singleton); the data fetch is keyed on job.id so toggling dark/light does not re-walk the tree. The crosshair-cursor SVG is scoped per instance via a data-graph-id attribute so two graphs on a page do not collide.
Empty / loading states	Loading dependency graph... while walking; No dependencies found for this job. when only the focus node remains.

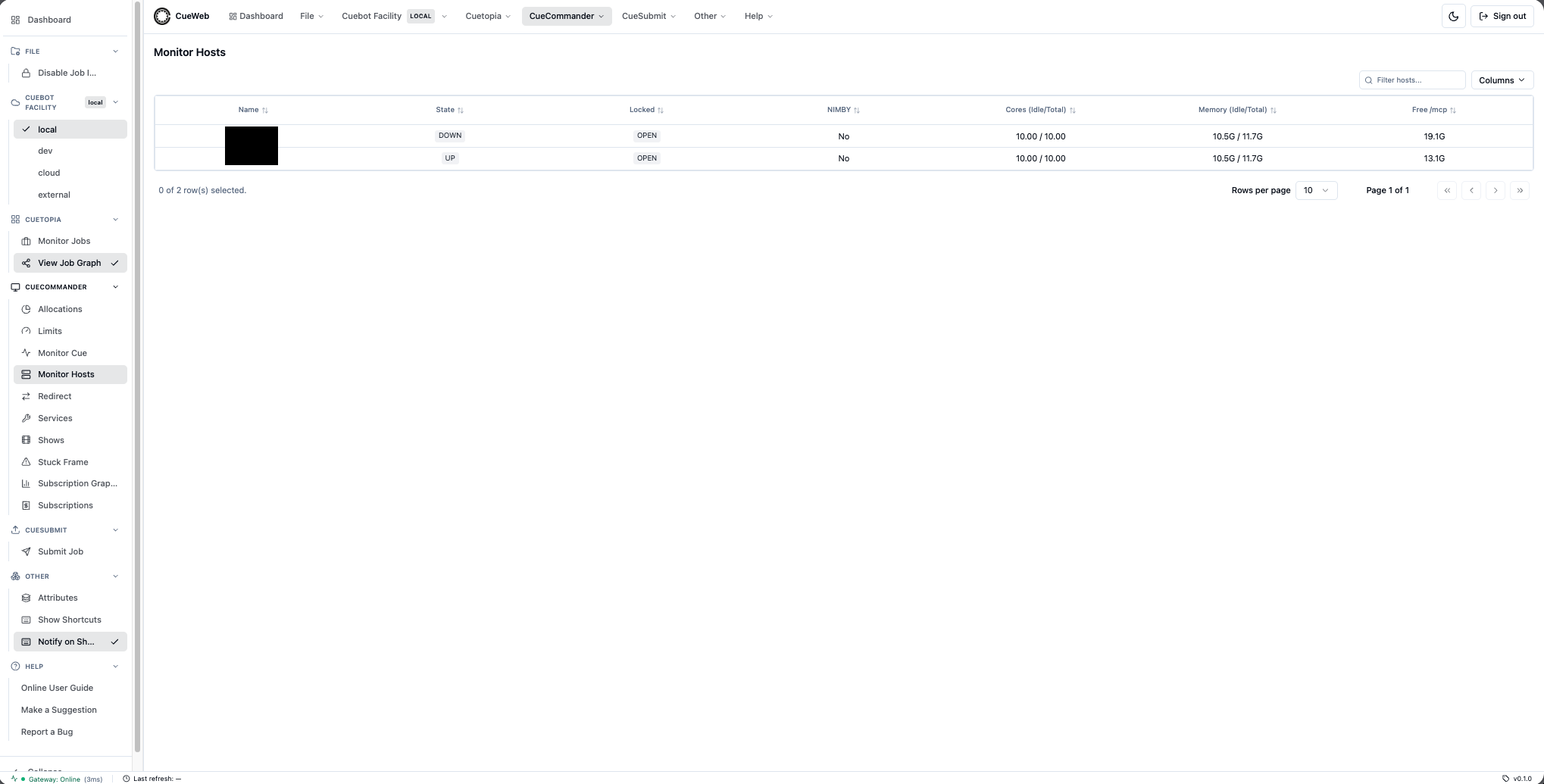

Monitor Hosts

A host registry at /hosts (cueweb/app/hosts/page.tsx), the CueWeb equivalent of CueGUI’s MonitorHostsPlugin / HostMonitorTree. Reached from CueCommander → Monitor Hosts (header dropdown and sidebar) or the dashboard hosts widget’s View hosts link.

Behavior	Description
Data source	Loads via getHosts() (app/utils/get_utils.ts), which posts to the /api/host/gethosts proxy → host.HostInterface/GetHosts. getHosts() returns an array on success and throws on a failed request so the page can tell a real failure from an empty registry.
Columns	Name, State, Locked, NIMBY, Cores (Idle/Total), Memory (Idle/Total), Free /mcp (app/hosts/columns.tsx). State and Locked reuse the shared Status badge.
Sorting	Resource columns sort by their underlying numeric value, not the formatted string: Cores and Memory by idle ratio (idleRatio), Free /mcp by byte count. Memory / mcp arrive from the gateway as KB-in-string and are parsed/formatted by app/hosts/host_format_utils.ts (kbStringToNumber, kbStringToHuman).
Table	Rendered by the shared SimpleDataTable with the isHostsTable flag - host-specific filter placeholder and empty-state copy, and the host row context menu. Column show/hide persists to localStorage["cueweb.hosts.columnVisibility"].
Refresh	Auto-refreshes every 30s. A failed poll keeps previously loaded rows; a failed first load renders an inline error with a Retry button.
Row actions	A right-click HostContextMenu (components/ui/context_menus/action-context-menu.tsx) exposes Lock / Unlock, Reboot / Reboot When Idle, and Edit Tags. The action helpers (lockHosts, unlockHosts, rebootHosts, rebootHostsWhenIdle, addHostTags, removeHostTags in app/utils/action_utils.ts) post to the /api/host/action/* proxies and return a success boolean from performAction. Lock/Reboot/Edit-Tags open confirmation dialogs (host-lock-dialog.tsx, host-reboot-dialog.tsx, edit-host-tags-dialog.tsx); on success they fire a cueweb:hosts-changed event (host-action-events.ts) so the page optimistically patches the affected row and reconciles on the next fetch. The Edit Tags dialog autocompletes from existing registry tags via the shared command.tsx (cmdk) primitive.
Gating	Unlock is disabled for NIMBY_LOCKED hosts; Reboot is disabled while REBOOTING; Reboot When Idle is disabled while REBOOTING or REBOOT_WHEN_IDLE.
Server-side filtering	Not yet implemented; filtering is client-side over the loaded rows.

Host detail page

A per-host page at /hosts/[host-name] (cueweb/app/hosts/[host-name]/page.tsx) reached by clicking a host’s Name in the Monitor Hosts table.

Behavior	Description
Resolution	Resolves the host by name via findHostByName() (app/utils/get_utils.ts) → /api/host/findhost → host.HostInterface/FindHost.
Tabs	Overview / Procs / Comments / Tags, with the active tab synced to the ?tab= query (same pattern as the job detail page).
Procs	Loads via getHostProcs() → /api/host/getprocs → host.HostInterface/GetProcs, rendered by SimpleDataTable with the read-only isProcsTable flag (no row context menu) and proc-columns.tsx. Auto-refreshes every 15s; an onRowClick opens the proc’s frame log using the proc’s logPath as the frameLogDir.
Comments	Loads via getHostComments() → /api/host/getcomments → host.HostInterface/GetComments (read-only list).
Tags	Renders host.tags; an Edit tags button dispatches the same cueweb:open-host-tags event as the table menu. The page listens for cueweb:hosts-changed to patch and silently reconcile its host.

Allocations

An allocations table at /allocations (cueweb/app/allocations/page.tsx), the CueWeb equivalent of CueGUI’s CueCommander Allocations window. Reached from CueCommander → Allocations (header dropdown and sidebar).

Behavior	Description
Data source	Loads via getAllocations() (app/utils/get_utils.ts) → /api/allocation/getall → facility.AllocationInterface/GetAll. Auto-refreshes every 30s.
Columns	Name (links to /hosts?allocation=<name>), Tag, then a cores group (Cores, Idle, Locked, Down, Repair) and a hosts group (Hosts, Locked, Down, Repair) - app/allocations/allocation-columns.tsx. Numeric columns sort by their underlying value; cores render as integers.
Derived columns	AllocationStats does not expose Down cores, Repair cores, or Repair hosts, so the page fetches the host list once (getHosts()) and aggregates it on allocName via computeAllocationHostStats / buildAllocationRows (app/allocations/allocation-utils.ts). The host fetch is best-effort - those columns fall back to 0 if it fails.
Table	Rendered by the shared SimpleDataTable with the read-only isAllocationsTable flag - allocation-specific filter/empty-state copy and no row context menu. Column show/hide persists to localStorage["cueweb.allocations.columnVisibility"].

Shows

A shows registry at /shows (cueweb/app/shows/page.tsx + shows-client.tsx), the CueWeb equivalent of CueGUI’s CueCommander Shows window. Reached from CueCommander → Shows (header dropdown and sidebar).

Behavior	Description
Data source	Loads via getActiveShows() (app/utils/get_utils.ts) → /api/show/getactiveshows → show.ShowInterface/GetActiveShows. Auto-refreshes every 30s and re-fetches on the cueweb:shows-changed event.
Columns	Show Name (links to the show detail page), Cores Run (reserved_cores), Frames Run (running_frames), Frames Pending (pending_frames), Jobs (pending_jobs) - app/shows/show-columns.tsx. Numeric columns sort by their underlying value.
Table	Rendered by the shared SimpleDataTable with the isShowsTable flag - show-specific filter placeholder and empty-state copy, and the ShowContextMenu. Column show/hide persists to localStorage["cueweb.shows.columnVisibility"].
Create Show	The Create Show button opens create-show-dialog.tsx: a unique alphanumeric name (duplicate-checked via FindShow) plus an optional per-allocation Subscriptions section (checkbox + Size + Burst, allocations from getAllocations()). Creates the show then a subscription on each checked allocation.
Row actions	A right-click ShowContextMenu (components/ui/context_menus/action-context-menu.tsx) exposes Show Properties and Create Subscription…, opened via the cueweb:open-show-properties / cueweb:open-create-subscription events (components/ui/show-action-events.ts).

Show Properties dialog

show-properties-dialog.tsx (CueGUI ShowDialog parity), four tabs:

Tab	Contents / RPCs
Settings	Default max cores (SetDefaultMaxCores), default min cores (SetDefaultMinCores), comment notification email (SetCommentEmail). Inputs are validated (non-negative, min ≤ max) before save.
Booking	Enable booking (EnableBooking), enable dispatch (EnableDispatching).
Statistics	Read-only show_stats counts.
Raw Show Data	Read-only JSON dump of the show.

Save calls only the setters whose value changed (via the action_utils helpers setShowDefaultMaxCores / setShowDefaultMinCores / setShowCommentEmail / enableShowBooking / enableShowDispatching), then fires cueweb:shows-changed.

Create Subscription dialog

create-subscription-dialog.tsx (CueGUI SubscriptionCreator parity): Show + Alloc dropdowns (getShows() / getAllocations()), Size (default 100), Burst (default 110). On OK it calls createShowSubscription() → /api/show/action/createsubscription → show.ShowInterface/CreateSubscription. A show has at most one subscription per allocation; the route maps Cuebot’s duplicate-key error to a short, user-facing message.

Show detail page (group tree)

Clicking a show name opens /shows/[showName] (cueweb/app/shows/[showName]/page.tsx), a client page that resolves the show via findShow() (app/utils/show_utils.ts → /api/show/findshow → show.ShowInterface/FindShow) and renders its group tree (components/group-tree/).

Behavior	Description
Data source	Groups load via getShowGroups() → /api/show/getgroups → show.ShowInterface/GetGroups; a group’s jobs load lazily on first expand via getGroupJobs() → /api/group/getjobs → job.GroupInterface/GetJobs (each group fetched at most once).
Expand state	The set of expanded group ids is mirrored to the ?expanded= query param, so a given view is deep-linkable.
Reparent	Dragging a group onto another calls reparentGroups() → /api/group/action/reparentgroups → job.GroupInterface/ReparentGroups; dragging a job onto a group calls reparentJobs() → /api/group/action/reparentjobs → job.GroupInterface/ReparentJobs. Drop targets are validated client-side (no self/descendant cycles, no same-parent no-ops), and reparents are serialized one at a time and rolled back on a failed RPC.
Refresh	The header Refresh button remounts the tree to reload groups and jobs.

Job-finished notifications

Behavior	Description
Trigger	Click the bell in the Notify column. The bell always subscribes immediately; OS notification permission is requested afterwards as an optional upgrade.
Toast wording	Branches on the prompt result: granted (in-app + desktop popup), denied (in-app only, instruction to enable in browser settings), default (in-app only, user dismissed the prompt).
Polling	An app-wide JobSubscriptionPoller provider polls each subscribed job’s state every 15 seconds via the REST gateway.
Notification	When a subscribed job becomes FINISHED, fireCompletionNotice(entry) fires an in-app toast.success("Job finished: <jobName>") (always) and a desktop new Notification(jobName, { body: "Job finished" }) (when Notification.permission === "granted" at fire-time).
Cross-tab serialization	The re-read + fire + mark sequence runs inside navigator.locks.request("cueweb:notify-<jobId>", ...) so only one tab toasts when several poll the same job concurrently. Falls back to a direct call when navigator.locks is unavailable.
Persistence	Subscriptions are stored in localStorage under cueweb:job-subscriptions and survive page reloads; cleared when the browser site data is cleared.
Auto-cleanup	If a subscribed job no longer exists in Cuebot (the lookup returns null), the subscription is removed on the next poll.
Cross-component sync	Mutations dispatch a cueweb:subscriptions-changed window event so the bell and poller stay in sync within the tab; the storage event syncs across tabs.

Keyboard shortcuts overlay (+ menu access)

Aspect	Description
Component	KeyboardShortcuts in cueweb/components/ui/shortcuts-overlay.tsx, mounted once from cueweb/app/layout.tsx.
Keys	? open overlay; Esc close overlay; / focus jobs search (cueweb:focus-search); r refresh jobs table (cueweb:refresh-now); t toggle light/dark theme.
Suppression	Single-letter keys are ignored while typing into <input>, <textarea>, <select>, or any contenteditable element. Modifier-key combos (Ctrl / Cmd / Alt) are passed through to the browser.

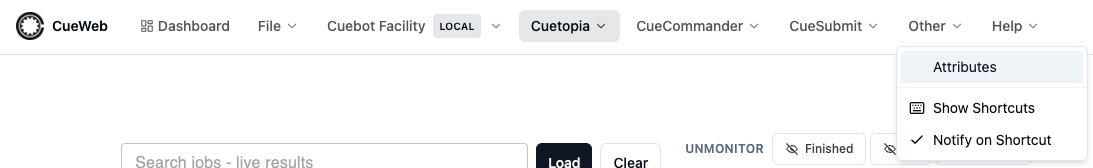

Menu access	Header Other ▸ Show Shortcuts and Sidebar Other ▸ Show Shortcuts both dispatch a cueweb:open-shortcuts CustomEvent on window that the overlay listens for.
Toast on shortcut	When Other ▸ Notify on Shortcut is checked (default ON), every triggered shortcut also fires a small toast naming the action (e.g. Shortcut: r → Refresh table).
Pref storage	localStorage["cueweb.shortcutNotifications"]. Cross-tab sync via the standard storage event plus an internal cueweb:shortcut-notifications-changed CustomEvent. Read imperatively at fire-time so toggling the pref takes effect on the very next keypress.

Job States

State	Color	Description
PENDING	Orange	Job waiting for resources
RUNNING	Green	Job has running frames
PAUSED	Blue	Job manually paused
FINISHED	Gray	Job completed
DEAD	Red	Job has failed frames

Frame States

State	Color	Description
WAITING	Gray	Frame pending dispatch
RUNNING	Yellow	Frame currently rendering
SUCCEEDED	Green	Frame completed successfully
DEAD	Red	Frame failed
EATEN	Purple	Frame marked as eaten
DEPEND	Cyan	Frame waiting on dependency

Frame State Filter Chips

Above the frames table, one filter chip is rendered per supported state. Each chip shows the current frame count for that state and toggles the filter on click.

Behavior	Description
States	WAITING, RUNNING, SUCCEEDED, DEAD, EATEN, DEPEND
Combination	OR semantics - frames matching any selected state are shown
Empty selection	All frames are shown when no chip is selected
URL parameter	frameStates (comma-separated, e.g., ?frameStates=WAITING,DEAD); whitespace is trimmed and duplicates are removed
Counts	Always computed against the unfiltered data set
Pagination	The table jumps to page 1 when the selection changes (polling-driven data refreshes do not reset the page)

Job Comments Page

CueWeb mirrors the CueGUI Comments dialog (cuegui/cuegui/Comments.py) at /jobs/<job-name>/comments.

Aspect	Description
Required query params	jobId (job UUID). The page calls getJob(jobId) to populate the comment list.
Viewer identity	Derived client-side from the authenticated NextAuth session (/api/auth/session), never from URL parameters. Used only to drive UI state.
Comment fields	id, timestamp (unix seconds), user, subject, message. Mirrors comment.Comment in proto/src/comment.proto.
Markdown	Messages are rendered with react-markdown + rehype-sanitize to strip embedded HTML/scripts.
Edit / delete authorization	Server-side ownership enforcement in Cuebot is authoritative. The client adds a convenience gate that enables the editor/delete only when comment.user === currentUser (the session-derived identity); the URL is never used as an auth signal.
Predefined macros	Stored in localStorage under cueweb-comment-macros. Scope is per-browser; not synced.
Indicator icon	The Jobs table has a dedicated Comments column (right after Name) showing a sticky-note icon when Job.hasComment is true. The column is sortable so users can pull jobs-with-comments to the top. Updated on the regular jobs-table polling cycle.

---

Search Functionality

Basic Search

Type directly in the search box to find jobs:

# Search by show name
myshow-

# Search by job name pattern
myshow-shot_010

# Search by partial match
comp

Regex Search

Prefix with ! for regex patterns:

# Match pattern
!^myshow-.*lighting.*$

# Match frame range
!.*_[0-9]{3}-[0-9]{3}_.*

# Match multiple criteria
!(lighting|comp).*shot_[0-9]+

Search Result Actions

• Click job: Add to monitored jobs table
• Green indicator: Job already in table
• Multiple selection: Use checkboxes for batch operations

---

Context Menu Actions

All three context menus (JobContextMenu, LayerContextMenu, FrameContextMenu) live in cueweb/components/ui/context_menus/action-context-menu.tsx and follow the CueGUI Monitor Jobs / Monitor Job Details structure. Items that depend on dialogs / backend integrations not yet implemented in CueWeb route through a notYetImplemented(label) placeholder. Destructive items are auto-disabled when Disable Job Interaction is on. Menus scroll instead of overflowing on small viewports.

Job Actions

Action	Description
Unmonitor	Remove the job from the monitored list.
View Job	Navigate to the job detail page. (placeholder)
View Job Details	Open the tabbed job detail page at /jobs/<jobName>?tab=overview. The page exposes five tabs (Overview, Layers, Frames, Comments, Dependencies) with the active tab synced into the URL so it’s bookmarkable and back-button friendly.
Copy Job Name	Copy the full job name to the clipboard.
Email Artist…	Open a themed dialog mirroring CueGUI’s Email dialog. Fields (From, To, CC, BCC, Subject, Body) are pre-filled from the job and editable; see Email Artist dialog.

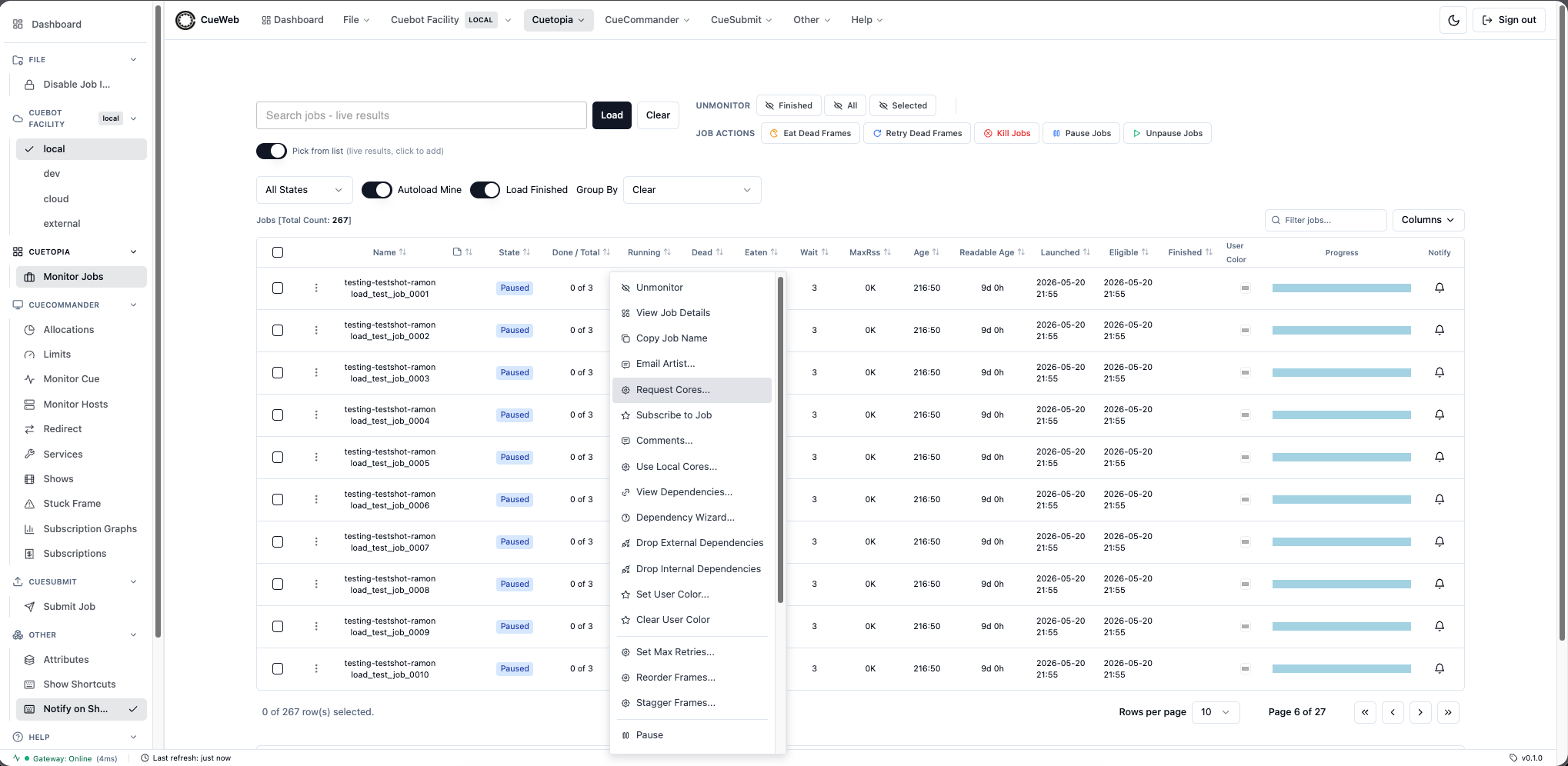

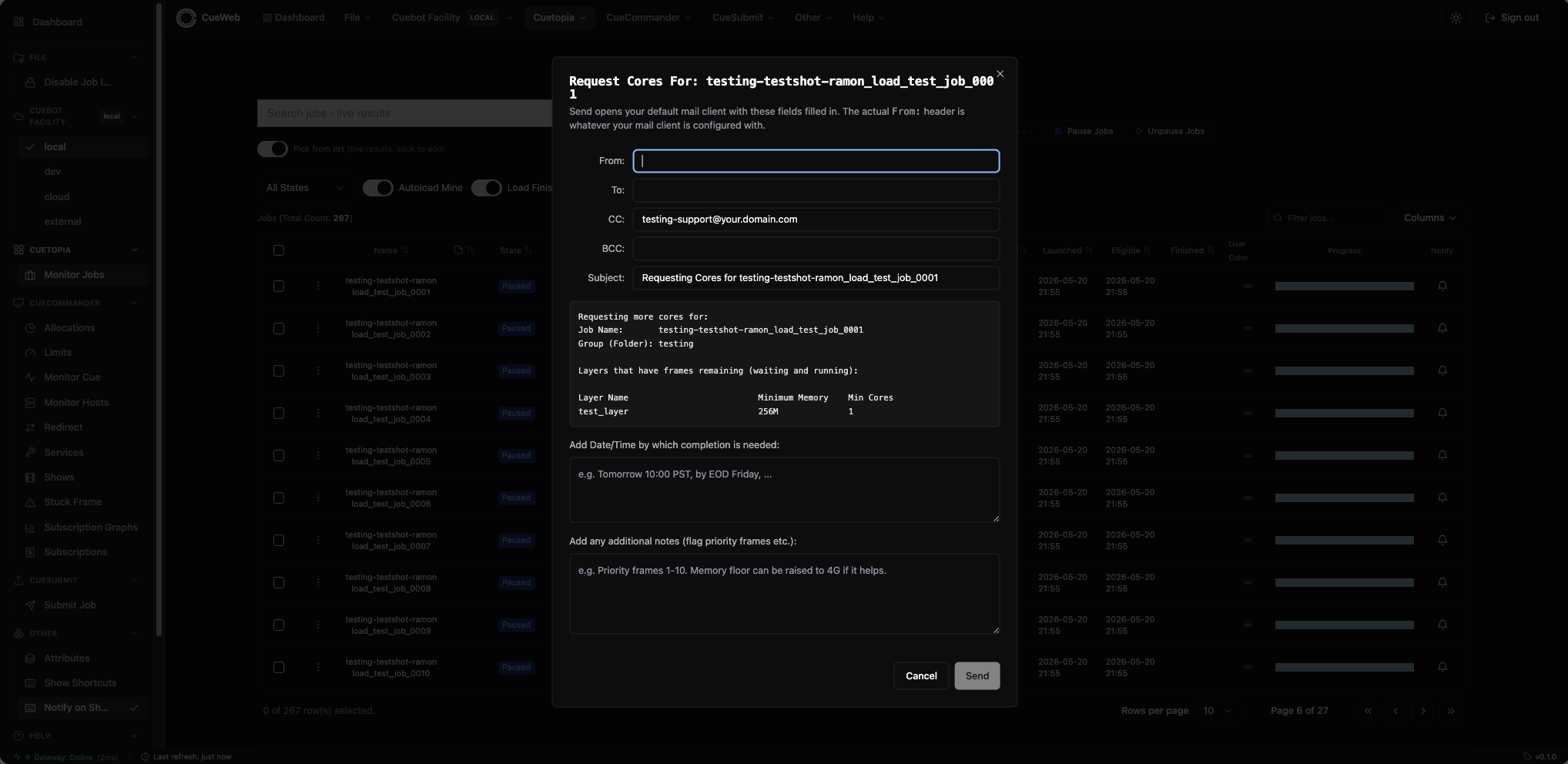

Request Cores…	Open a themed dialog mirroring CueGUI’s RequestCoresDialog. From / To / CC / BCC / Subject inputs are pre-filled; the body is auto-populated with the job’s still-active layers (Layer Name / Minimum Memory / Min Cores) and two editable Date/Time + Notes sections. Send hands the result to the user’s default mail client via a mailto: URL. See Request Cores dialog.
Subscribe to Job	Open a themed dialog mirroring CueGUI’s SubscribeToJobDialog. The address you save is registered with Cuebot via the AddSubscriber RPC, so Cuebot emails the subscriber when the job finishes. This is the server-side, email subscription - different from the Notify bell (browser-side, in-app + optional desktop popup). See Subscribe to Job dialog.
Comments	Open the per-job Comments page (/jobs/<jobName>/comments).
Use Local Cores	Reserve local cores for this job. (placeholder)
View Dependencies…	Open a themed dialog mirroring CueGUI’s DependDialog. On open, the dialog calls the GetDepends RPC via /api/job/action/getdepends and renders the job’s depend.DependSeq as a table with columns Type / Target / Active / OnJob / OnLayer / OnFrame. Refresh re-fetches the list. See View Dependencies dialog.

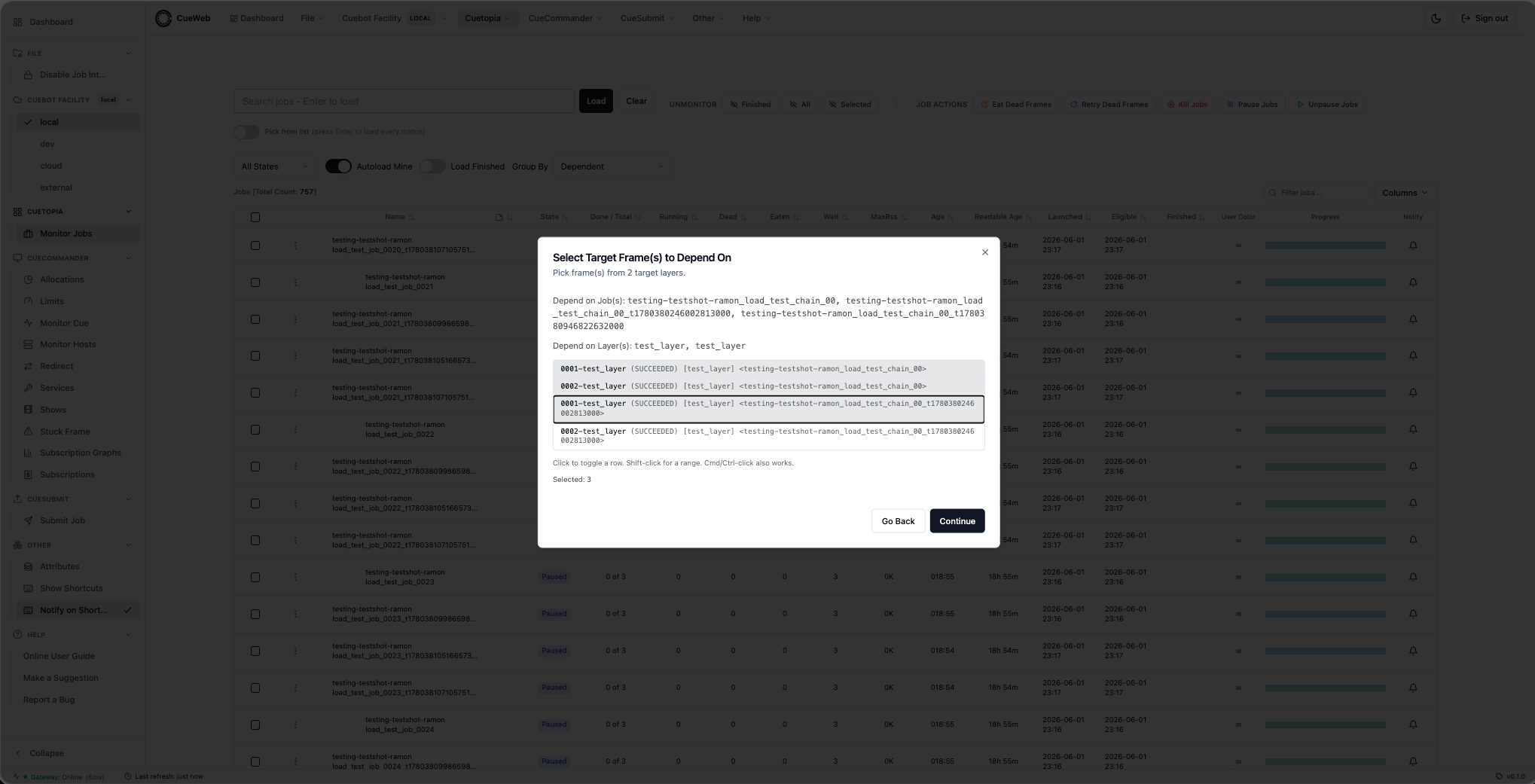

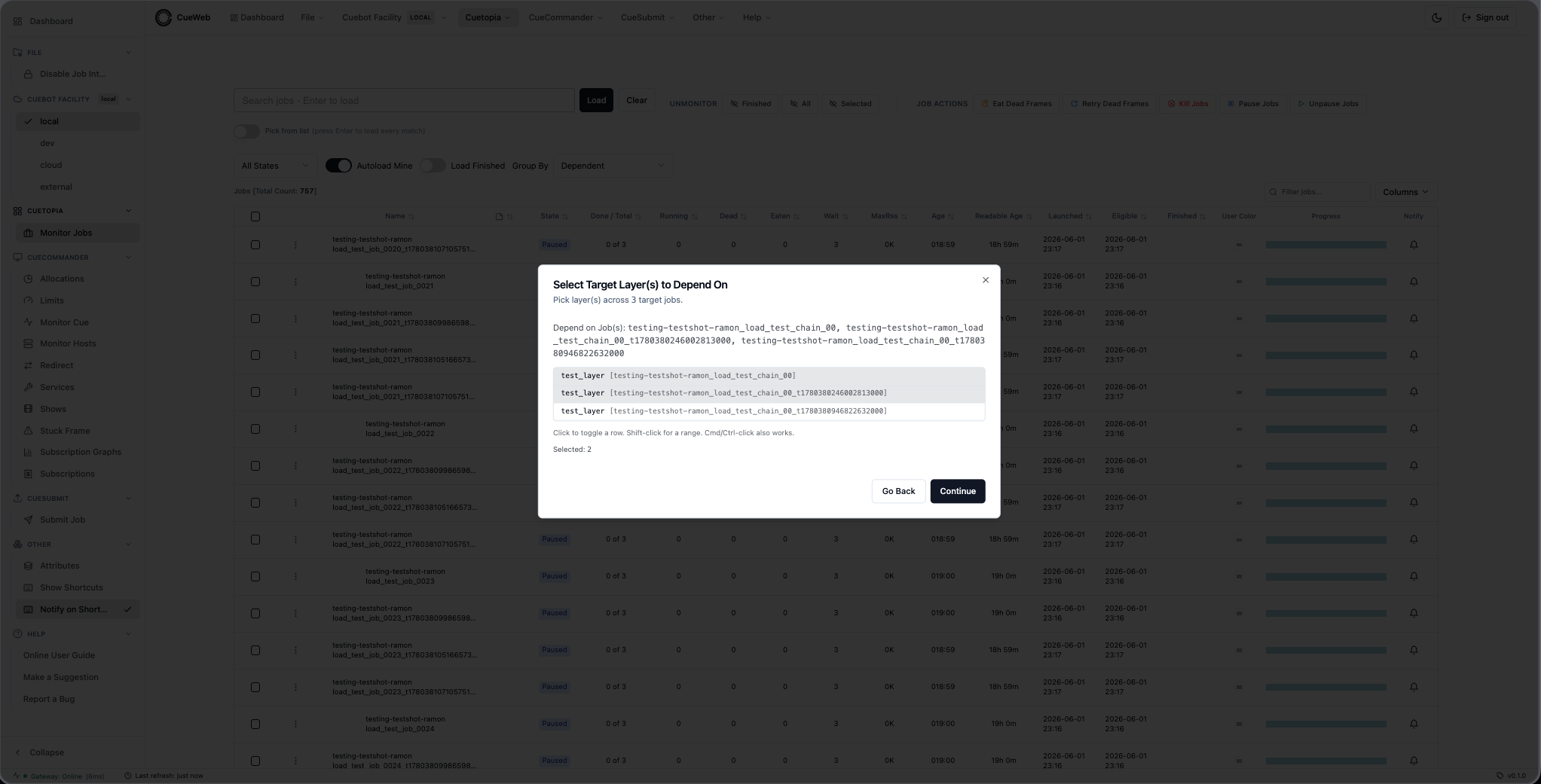

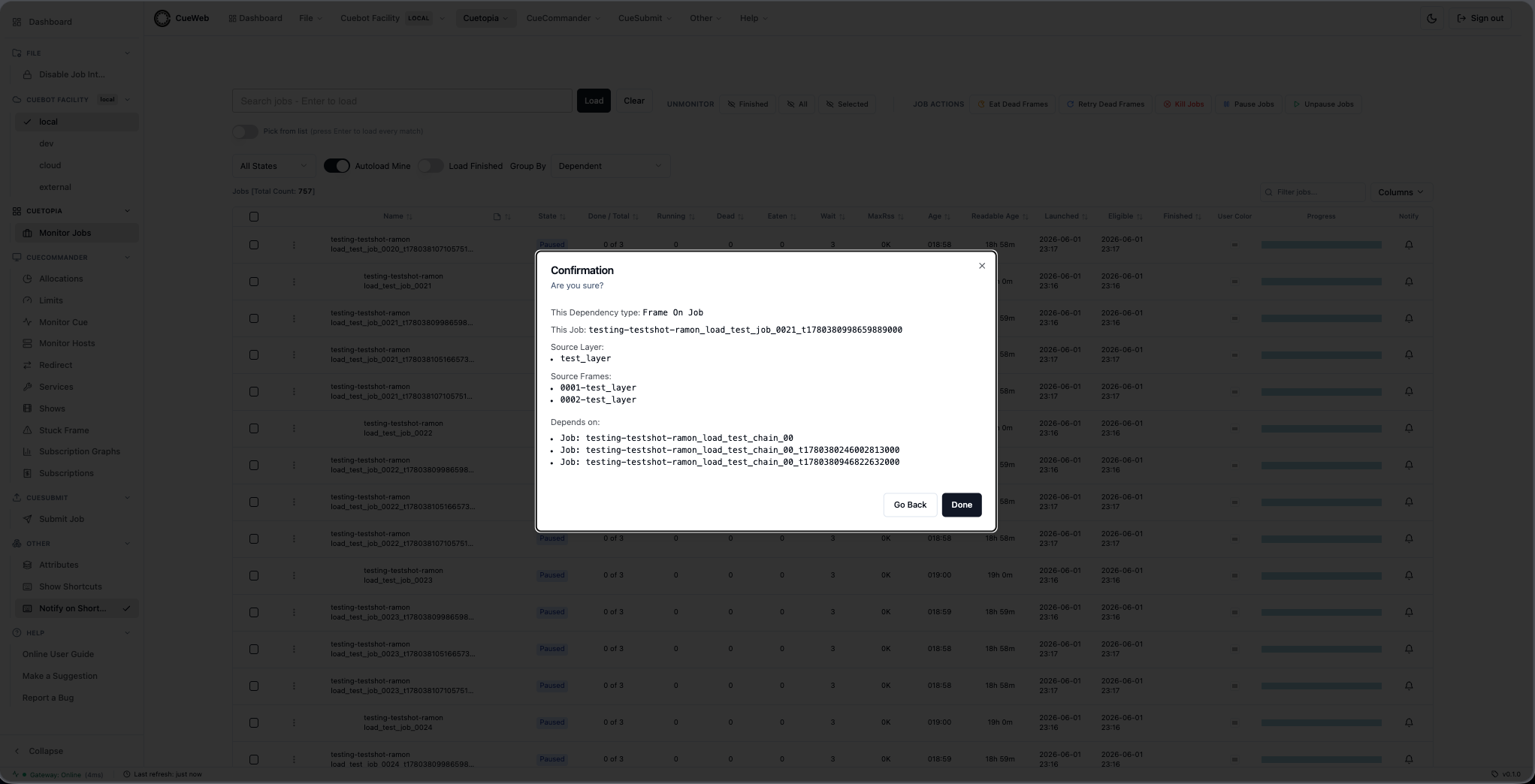

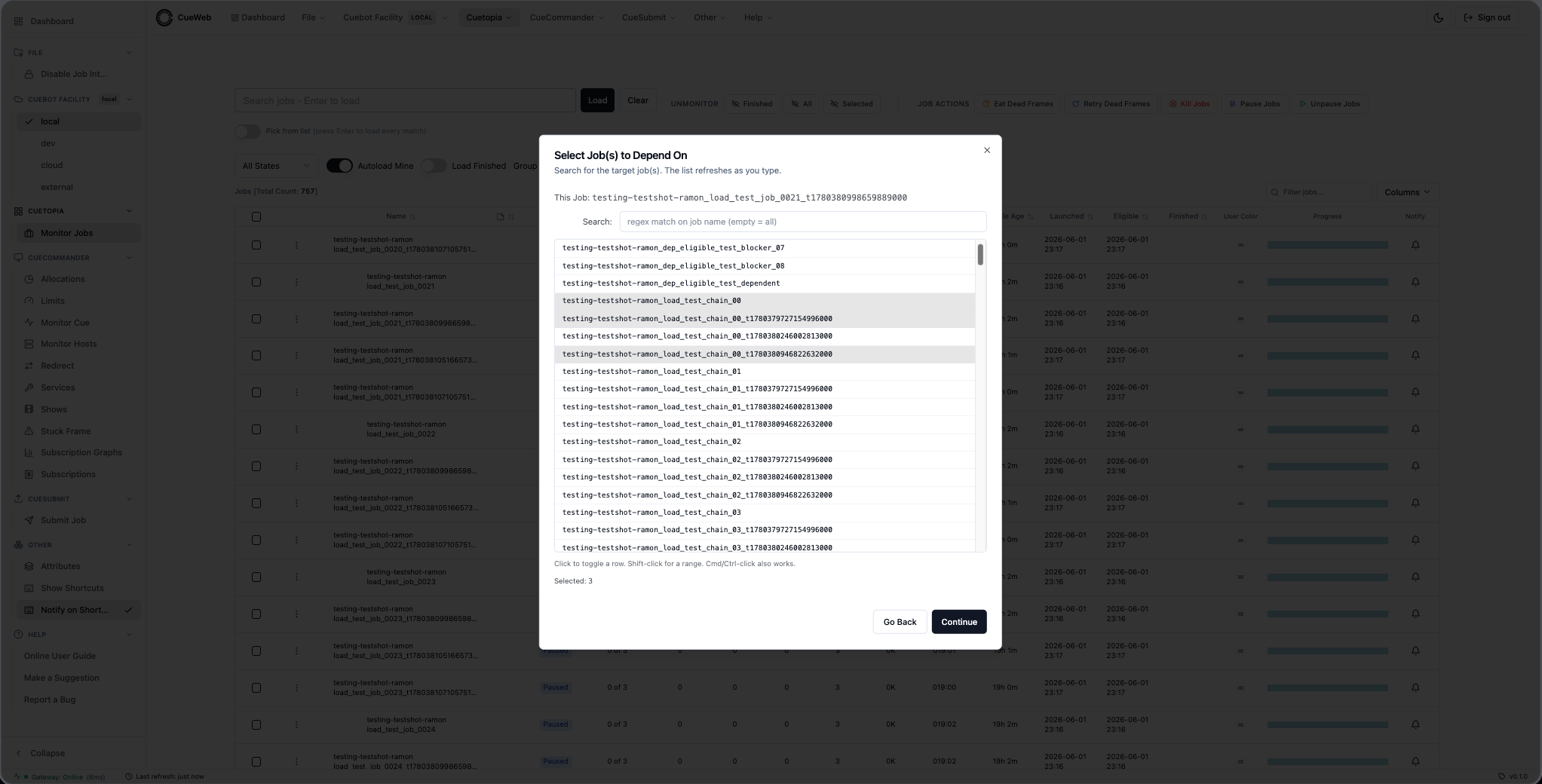

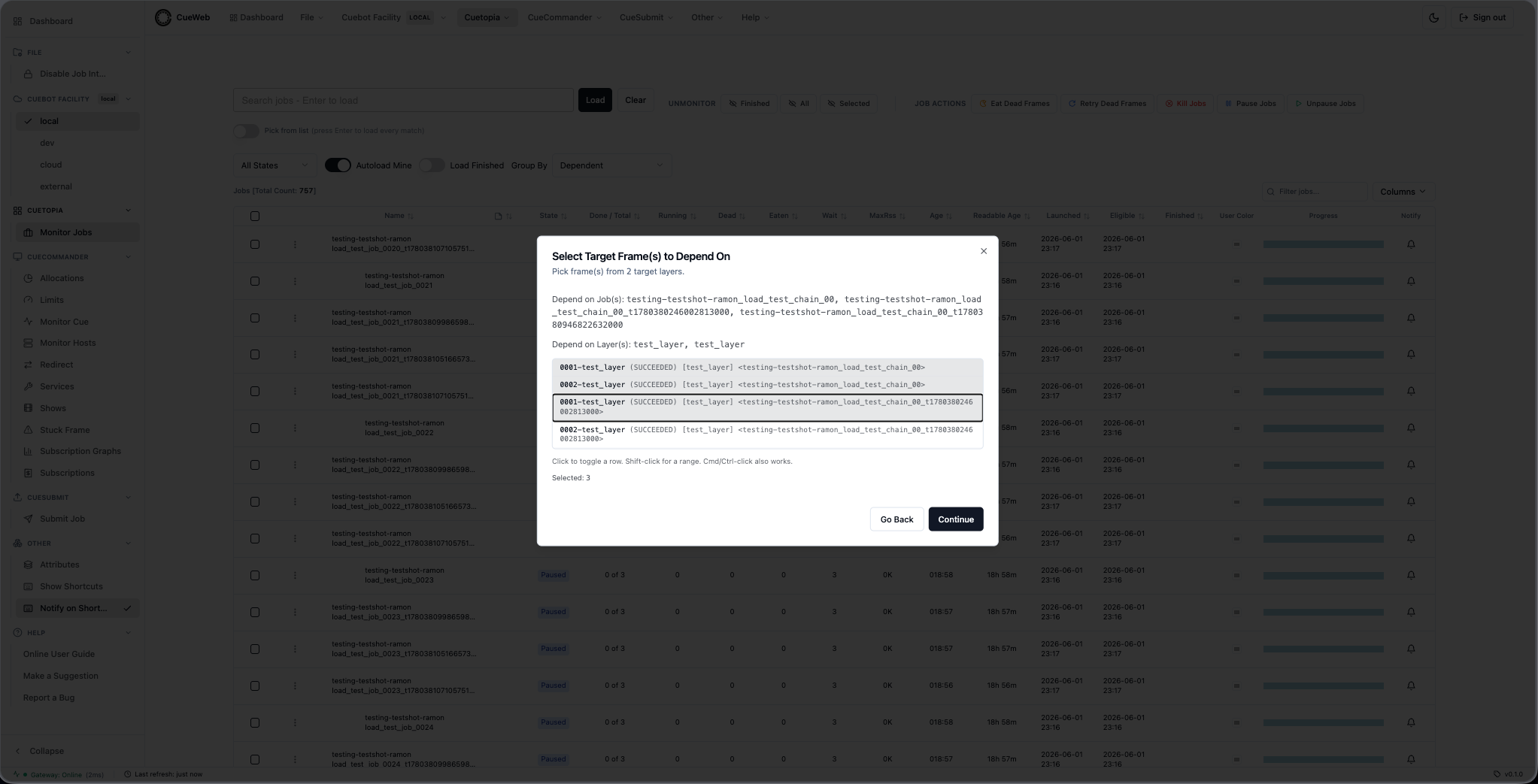

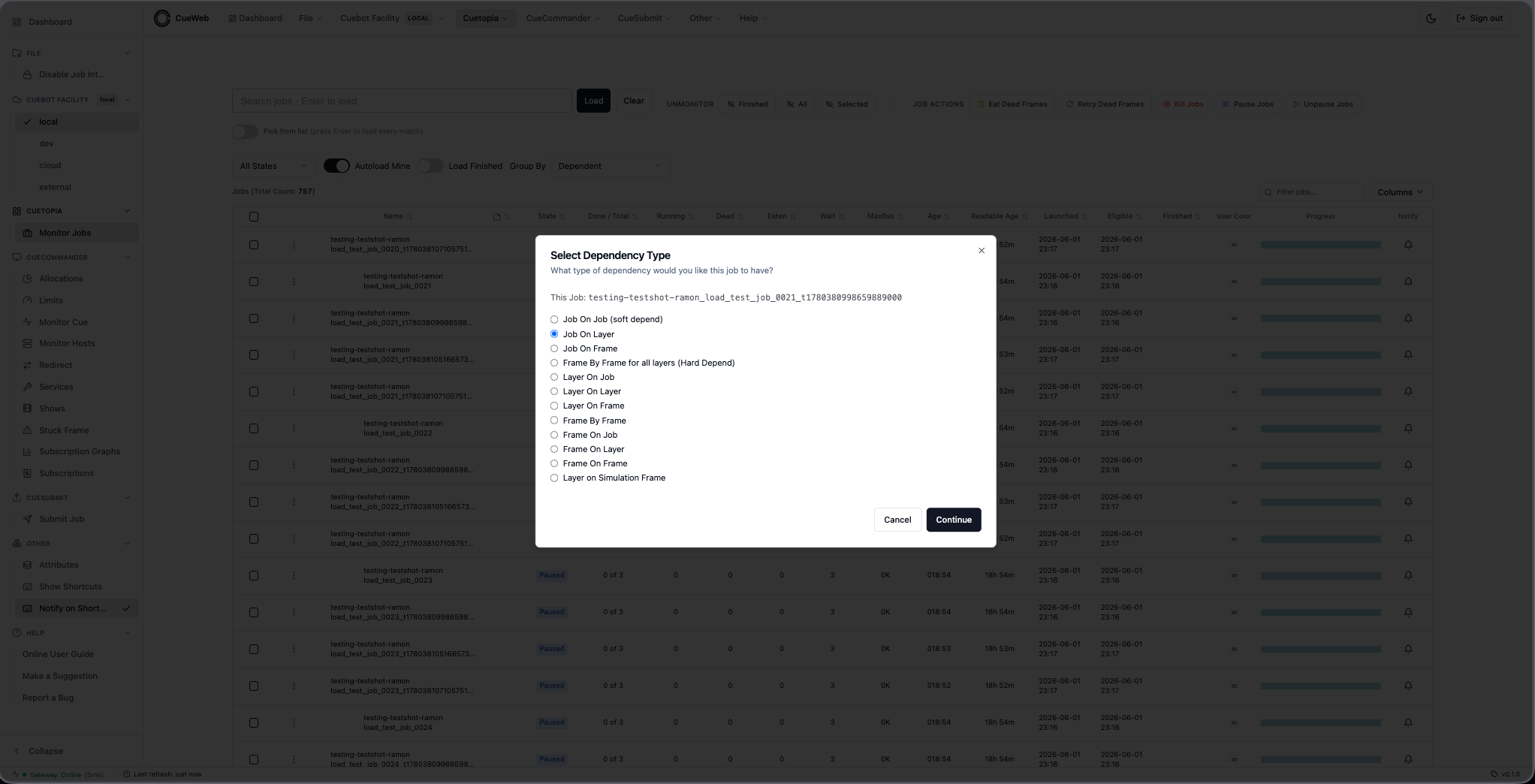

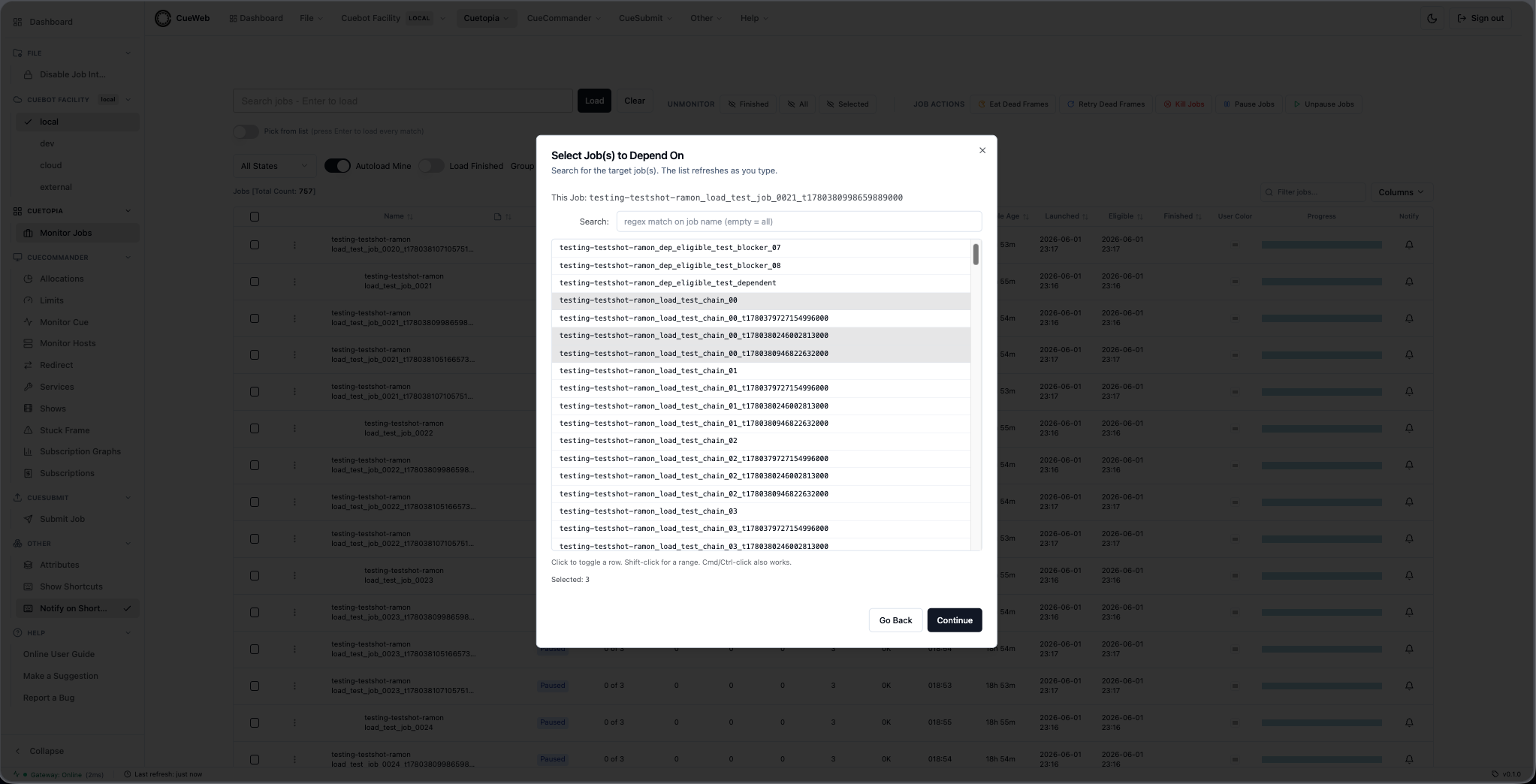

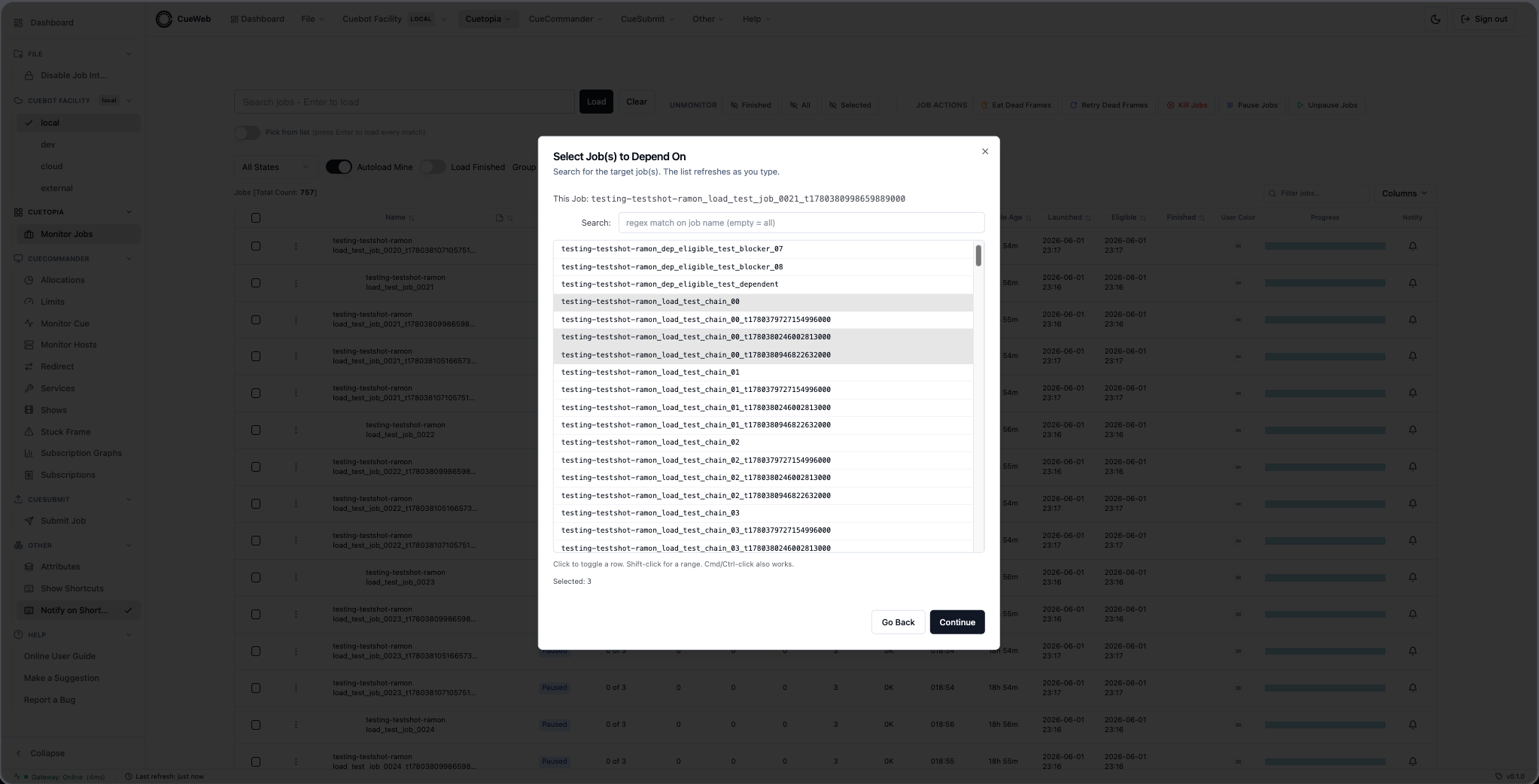

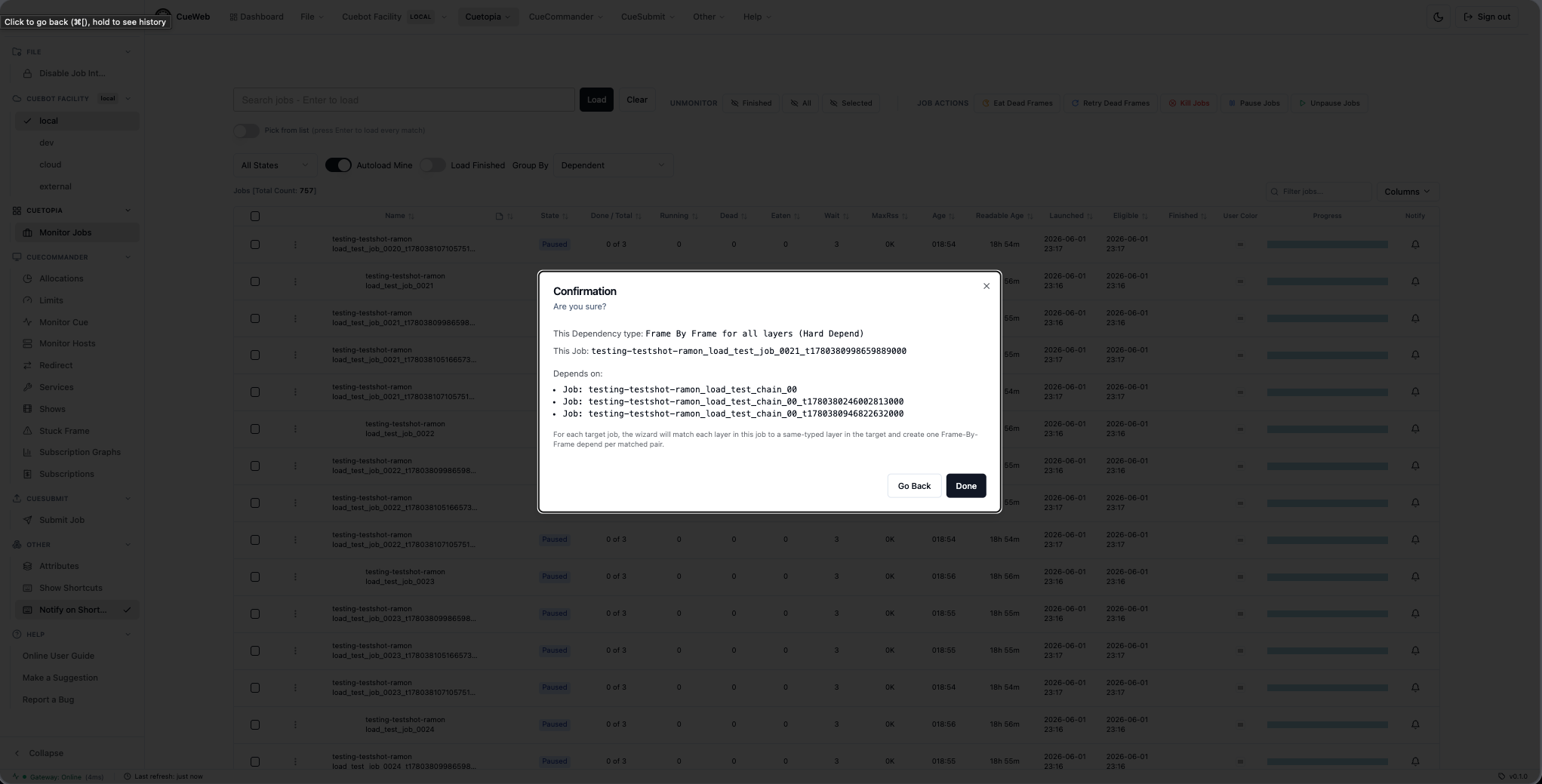

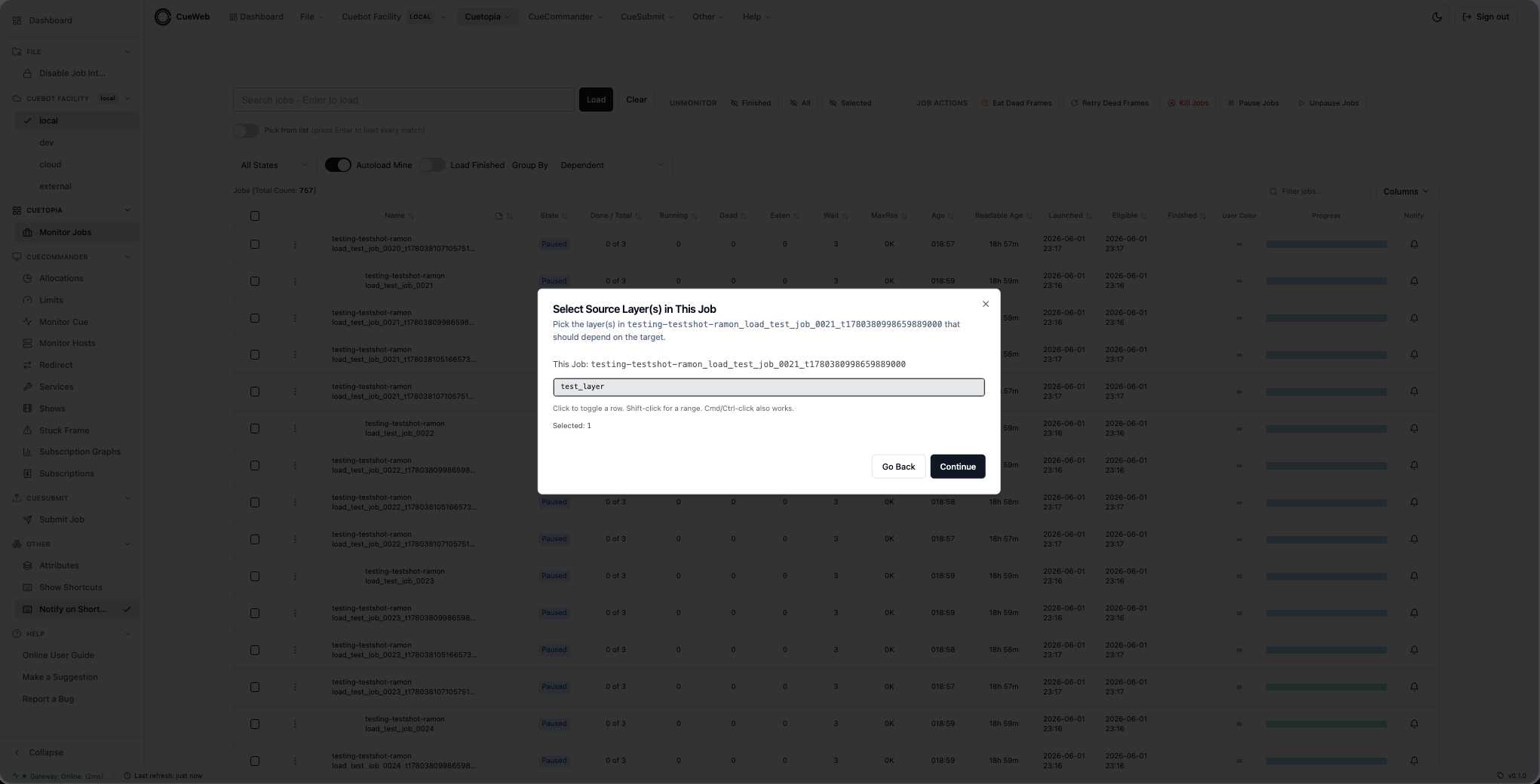

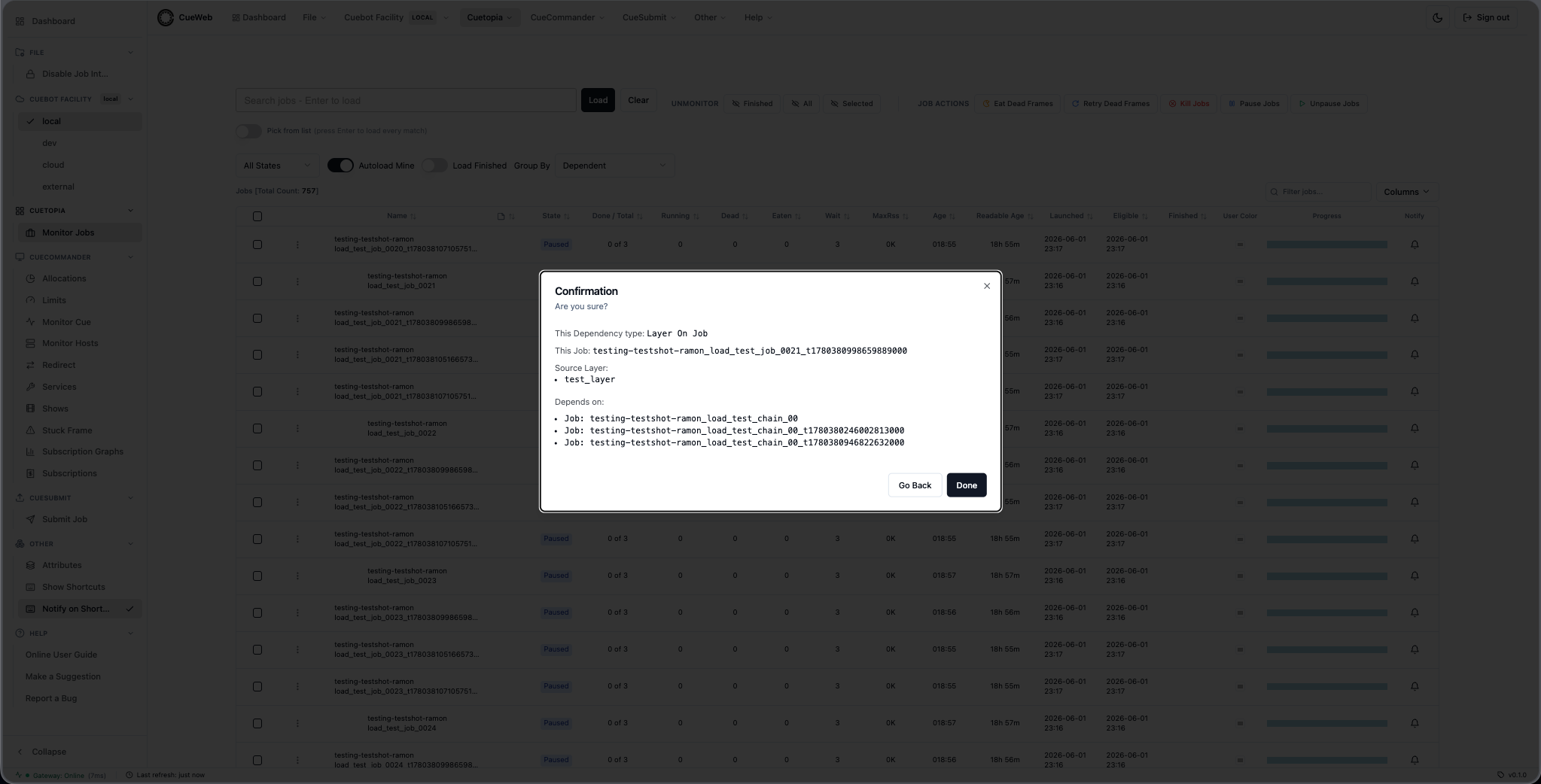

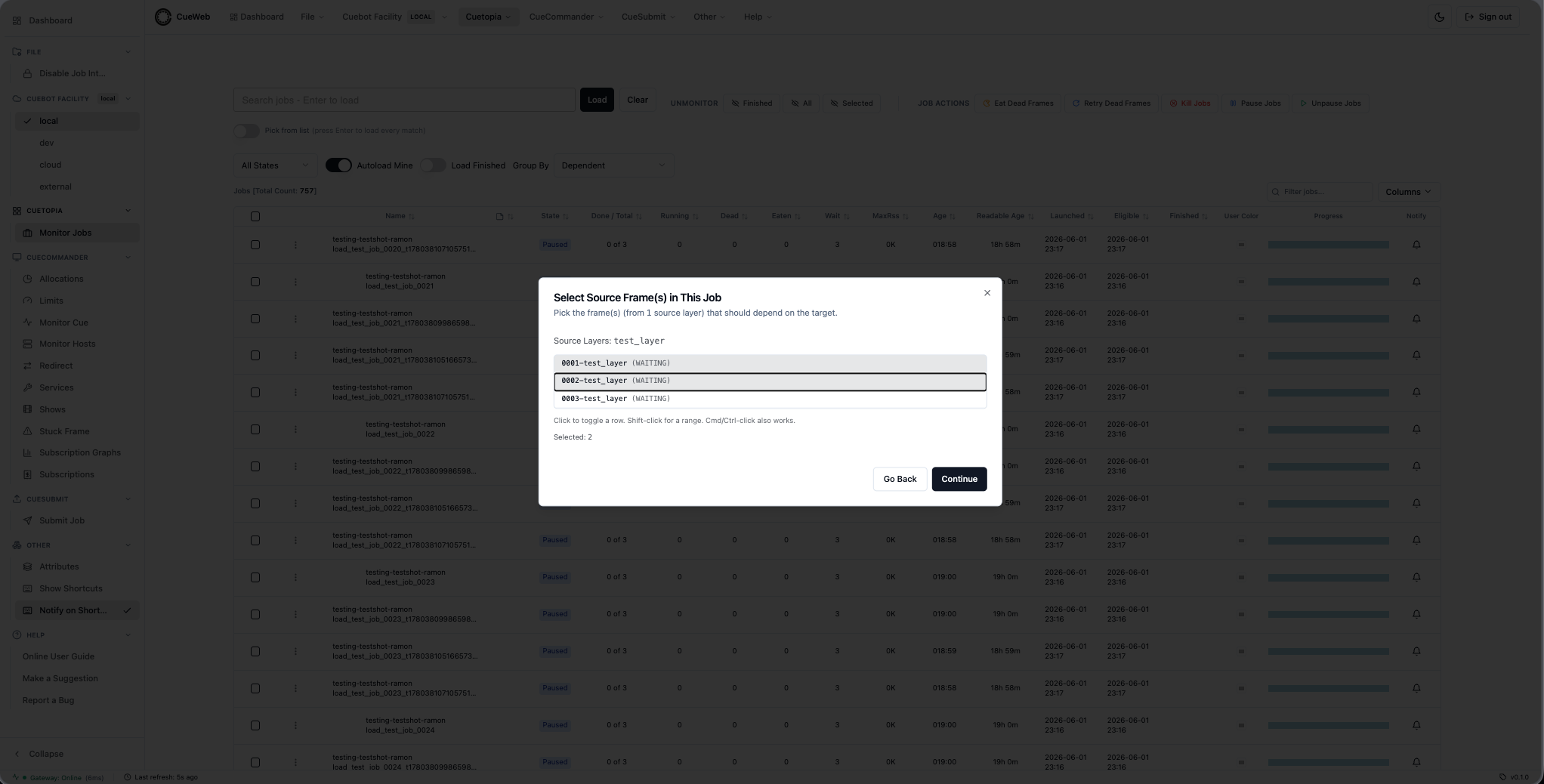

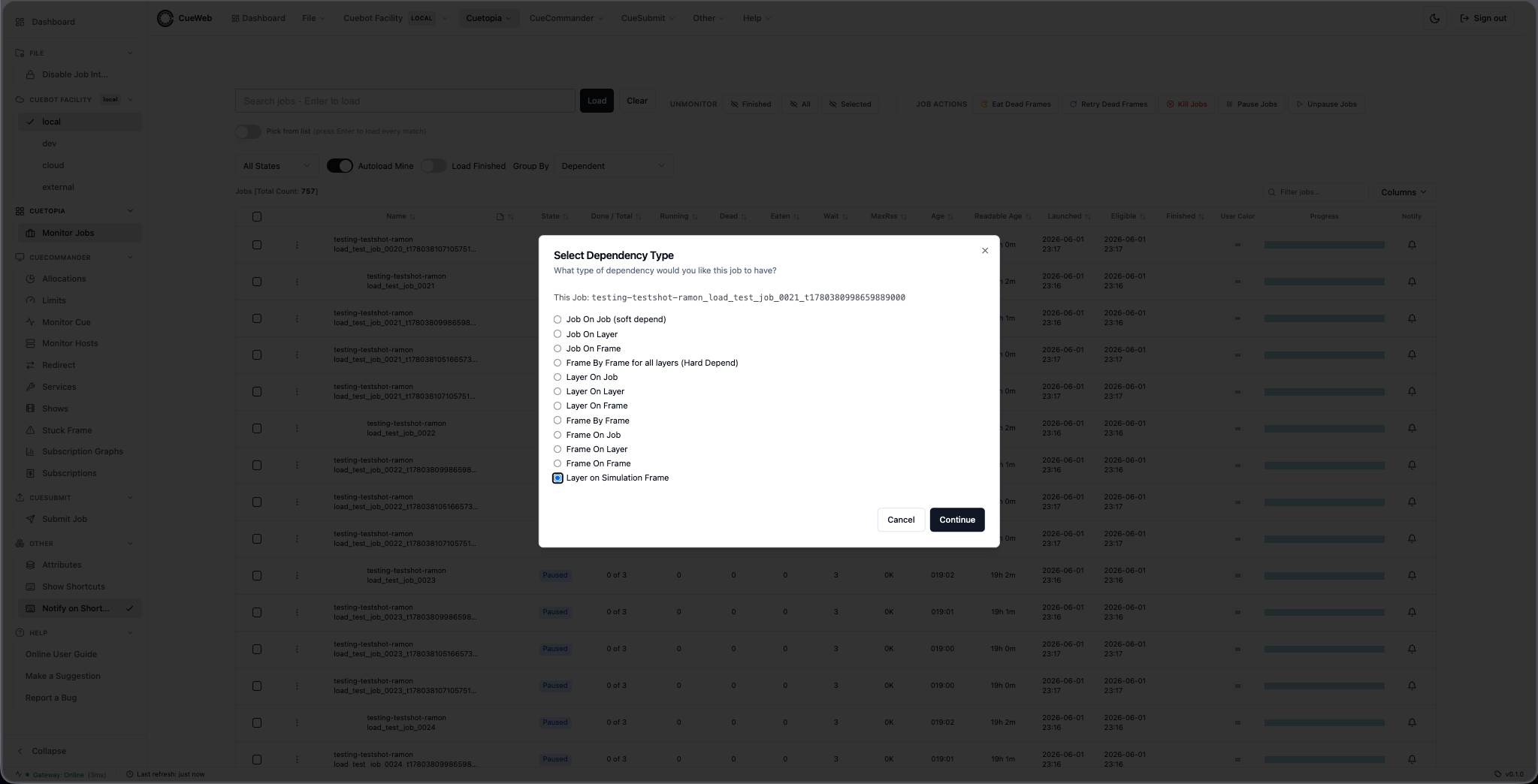

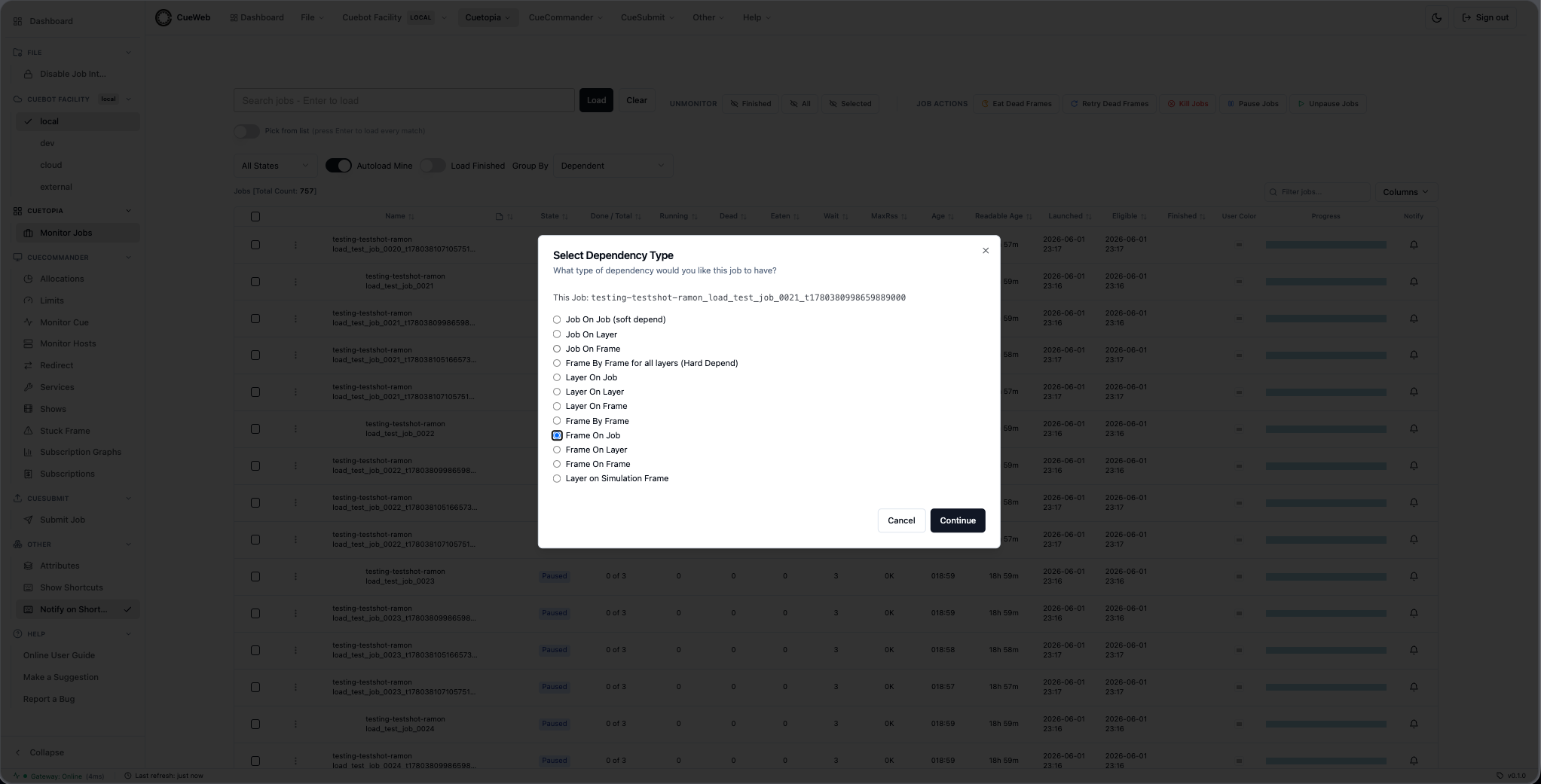

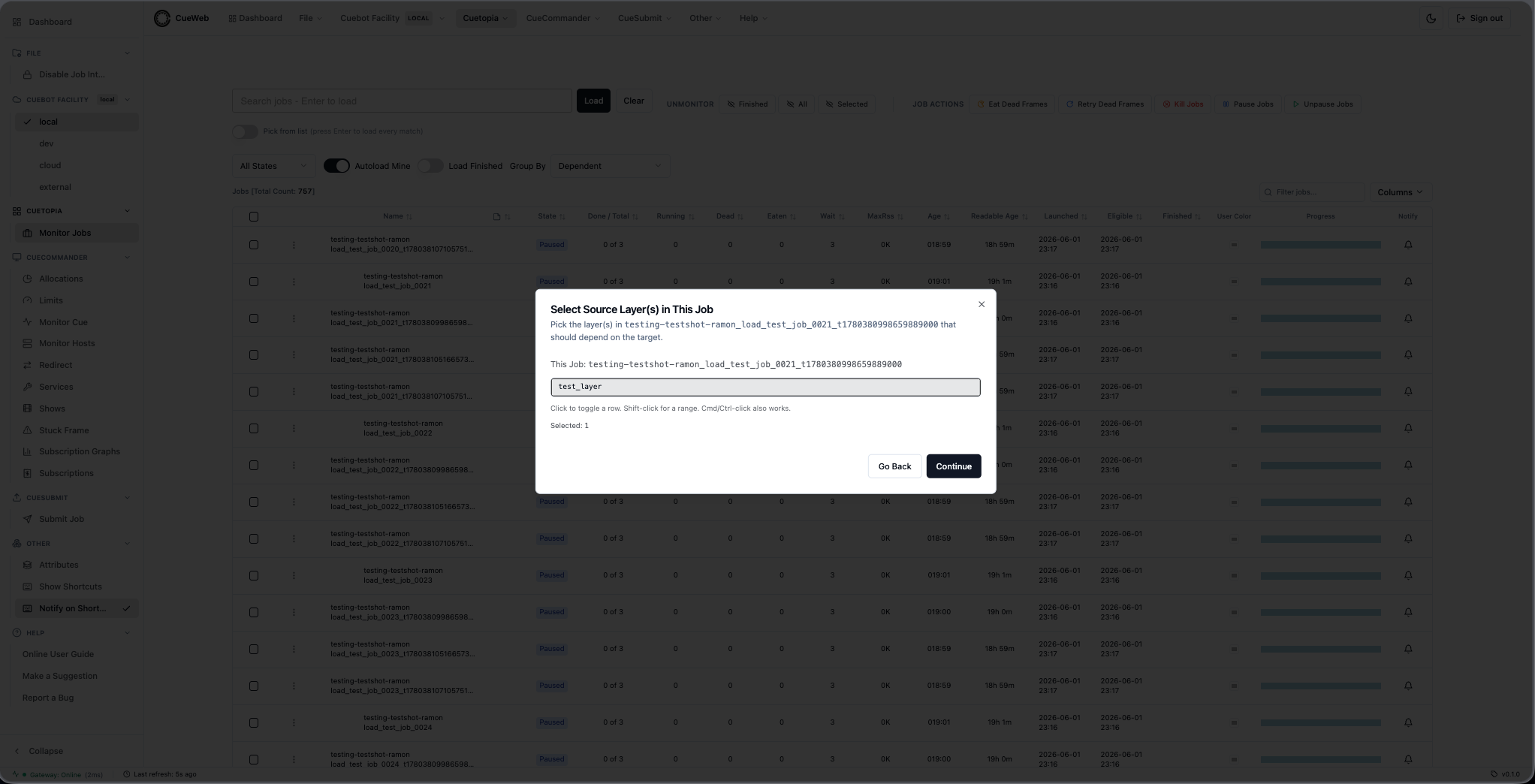

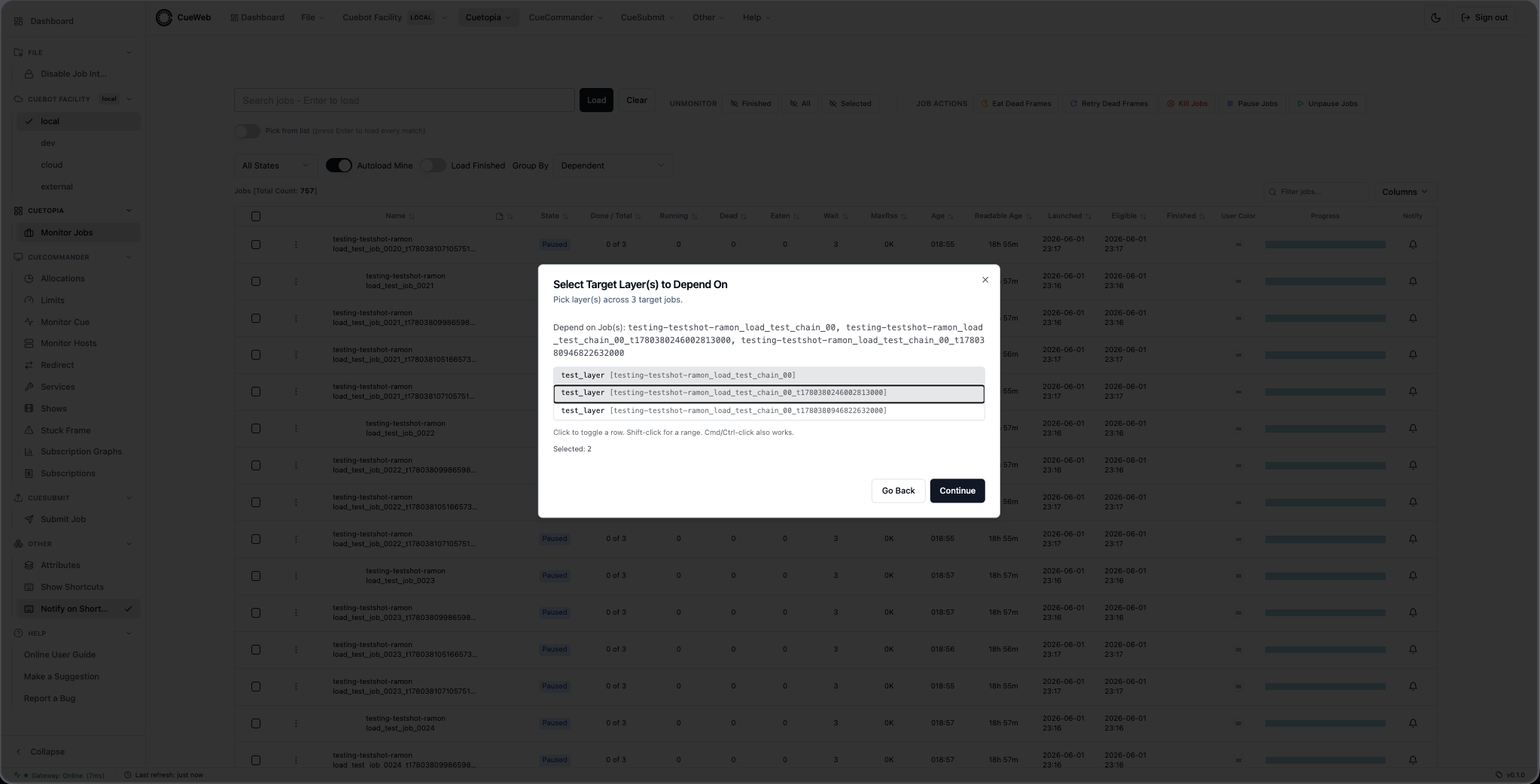

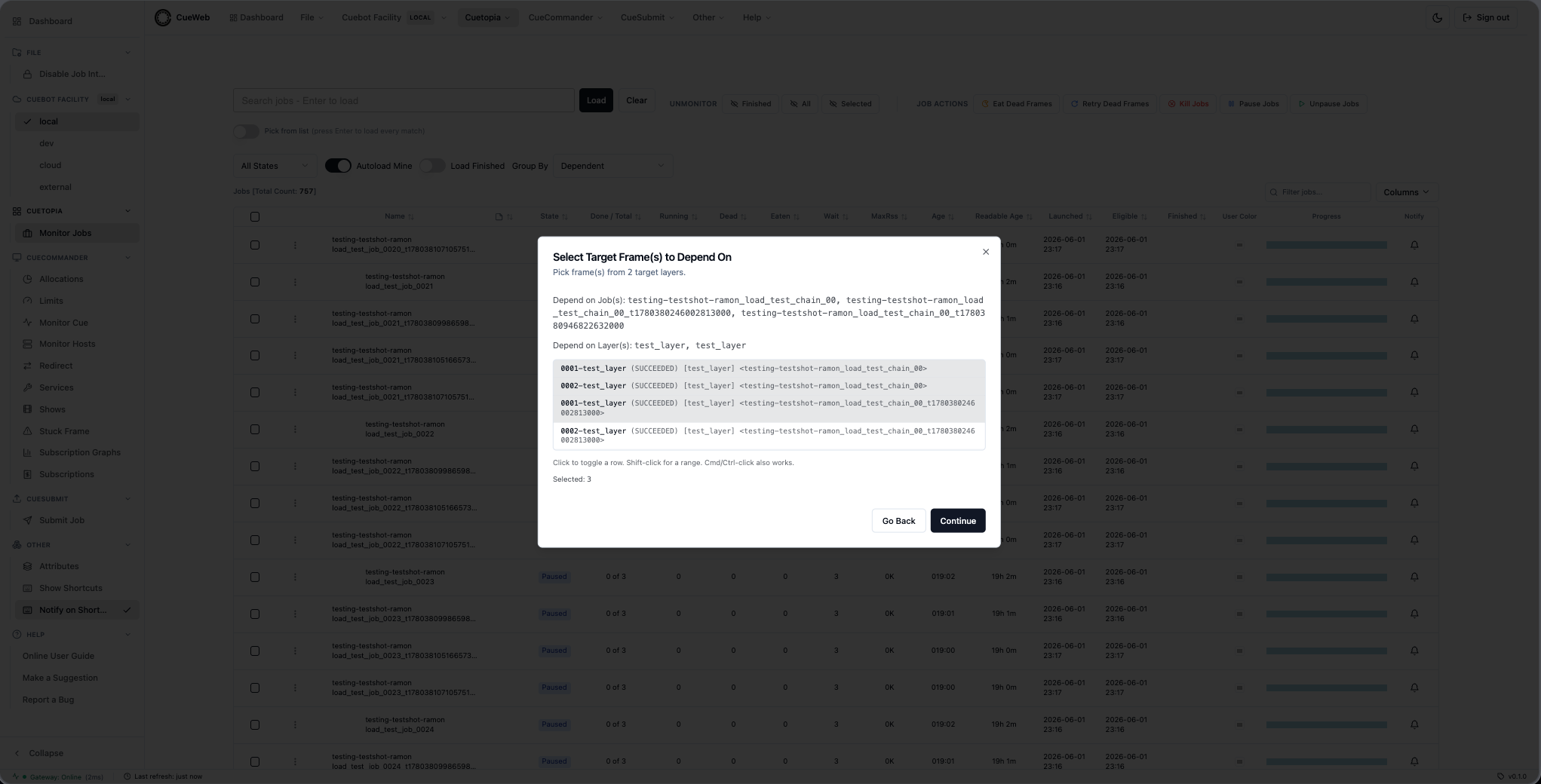

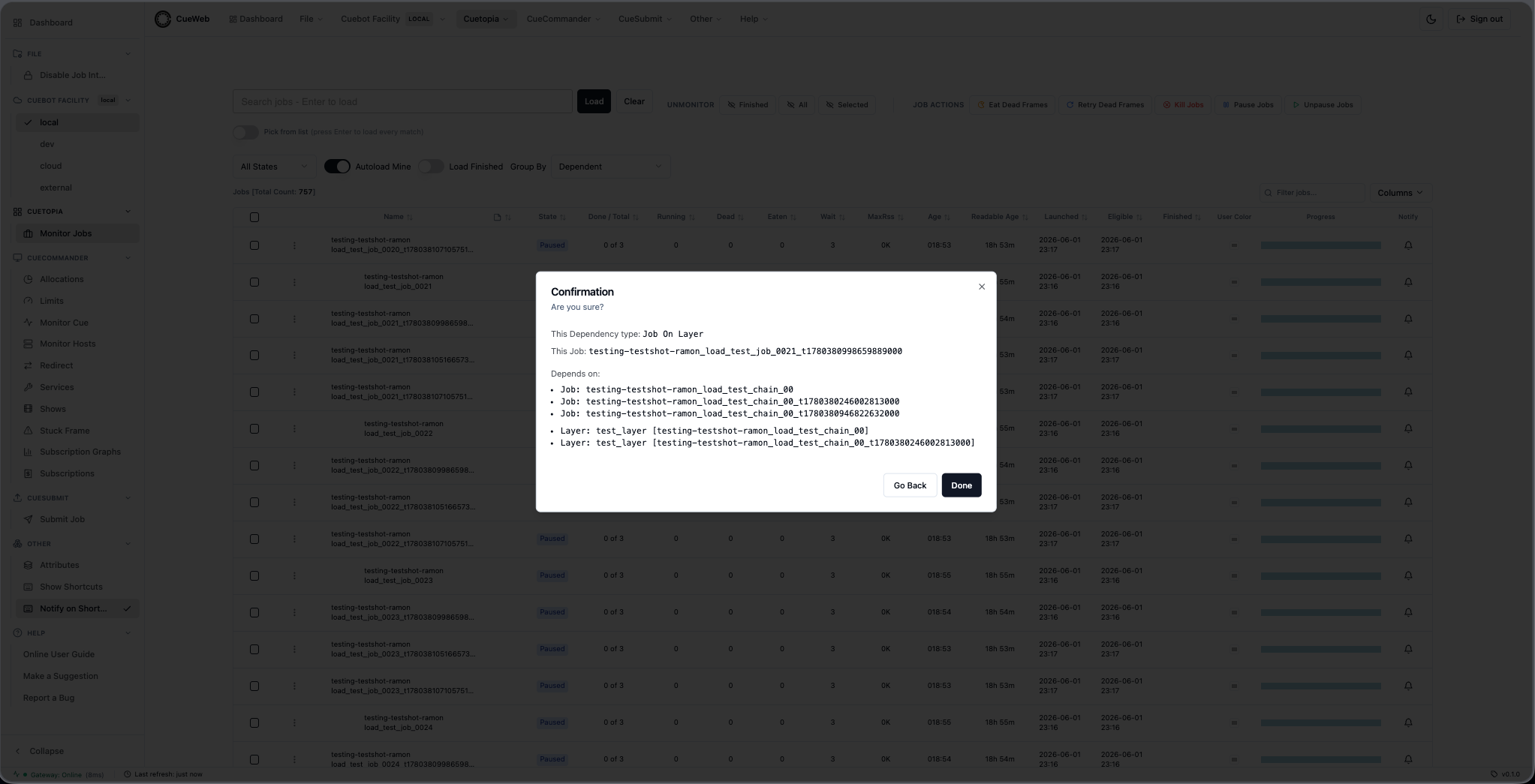

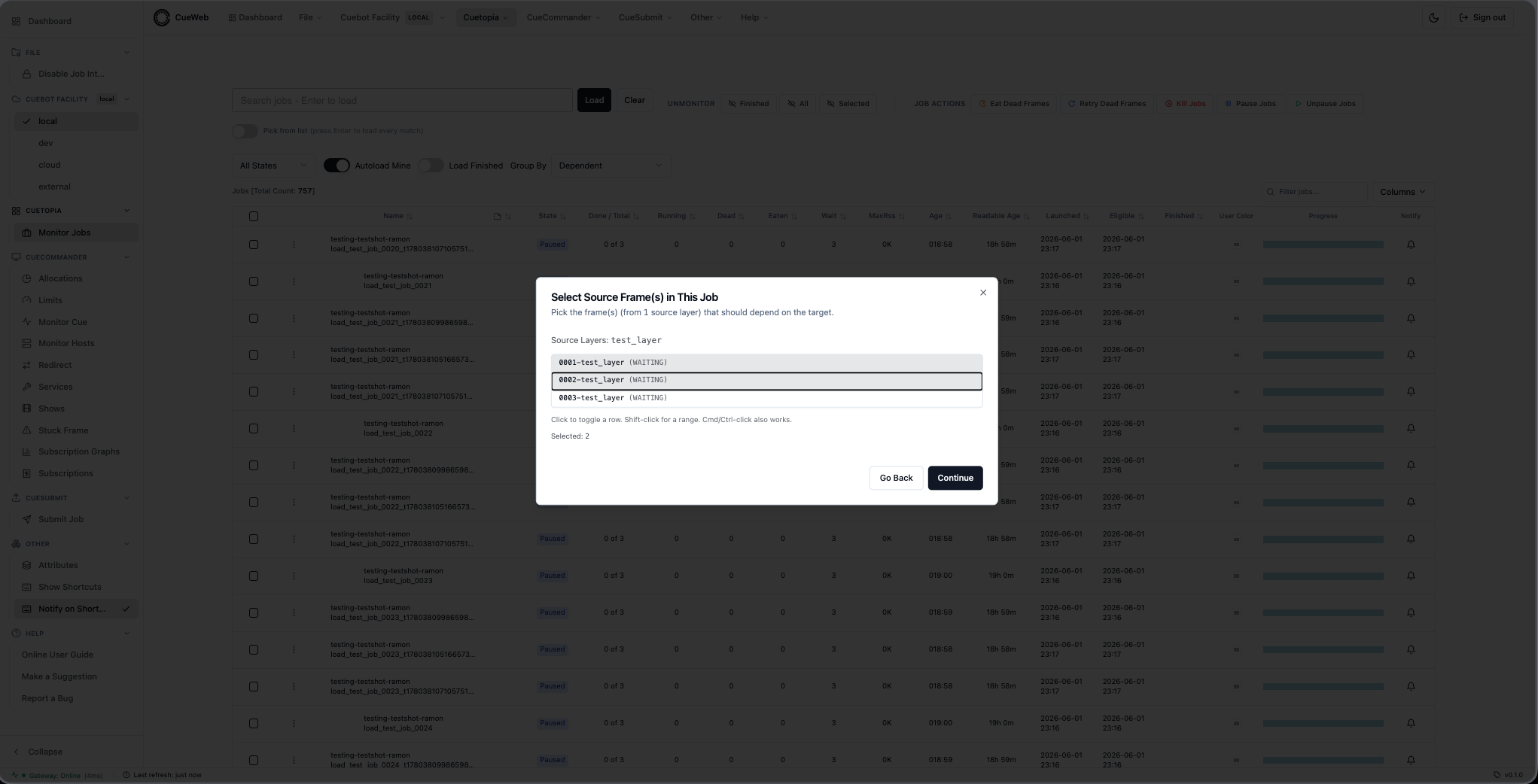

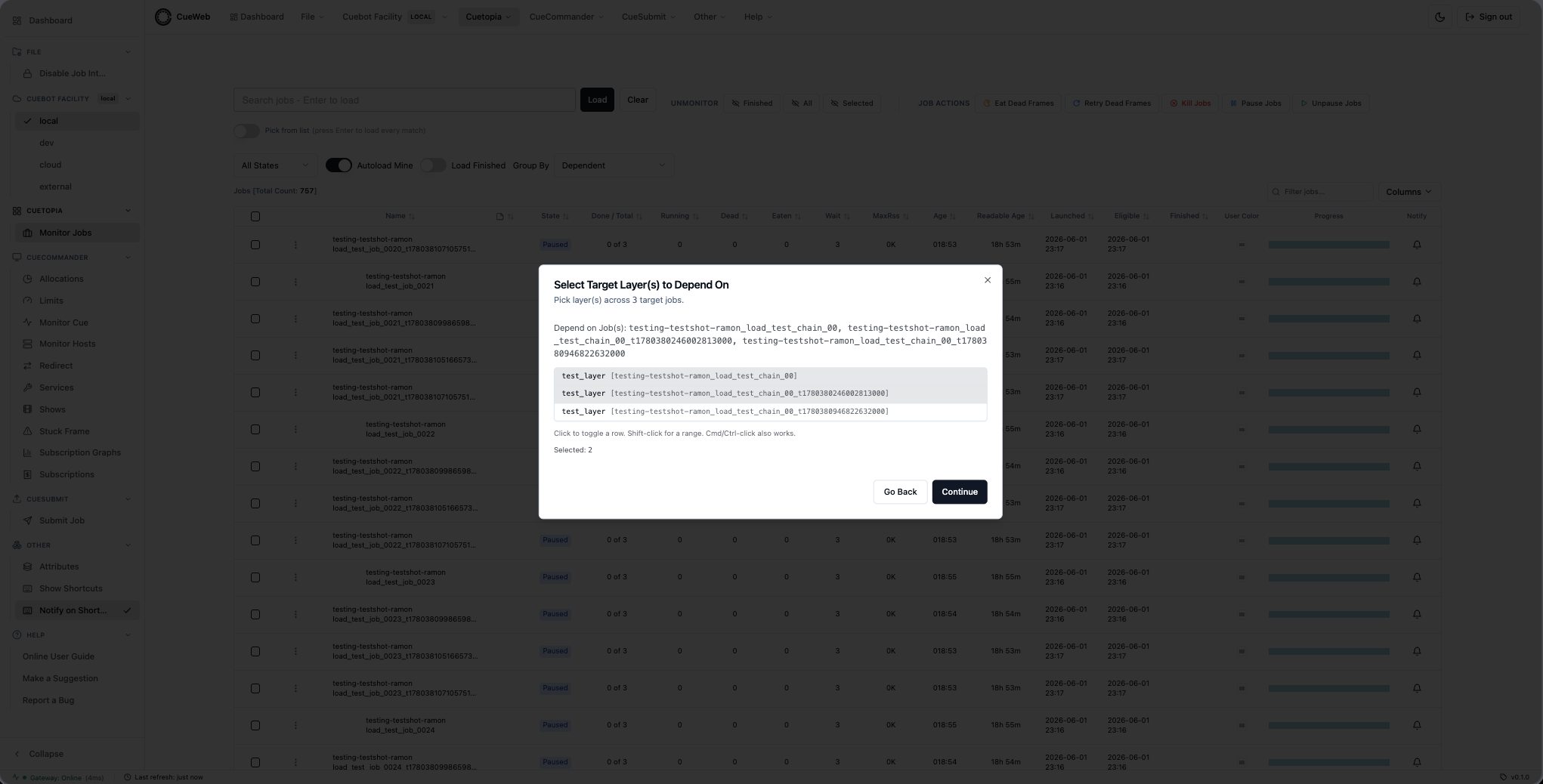

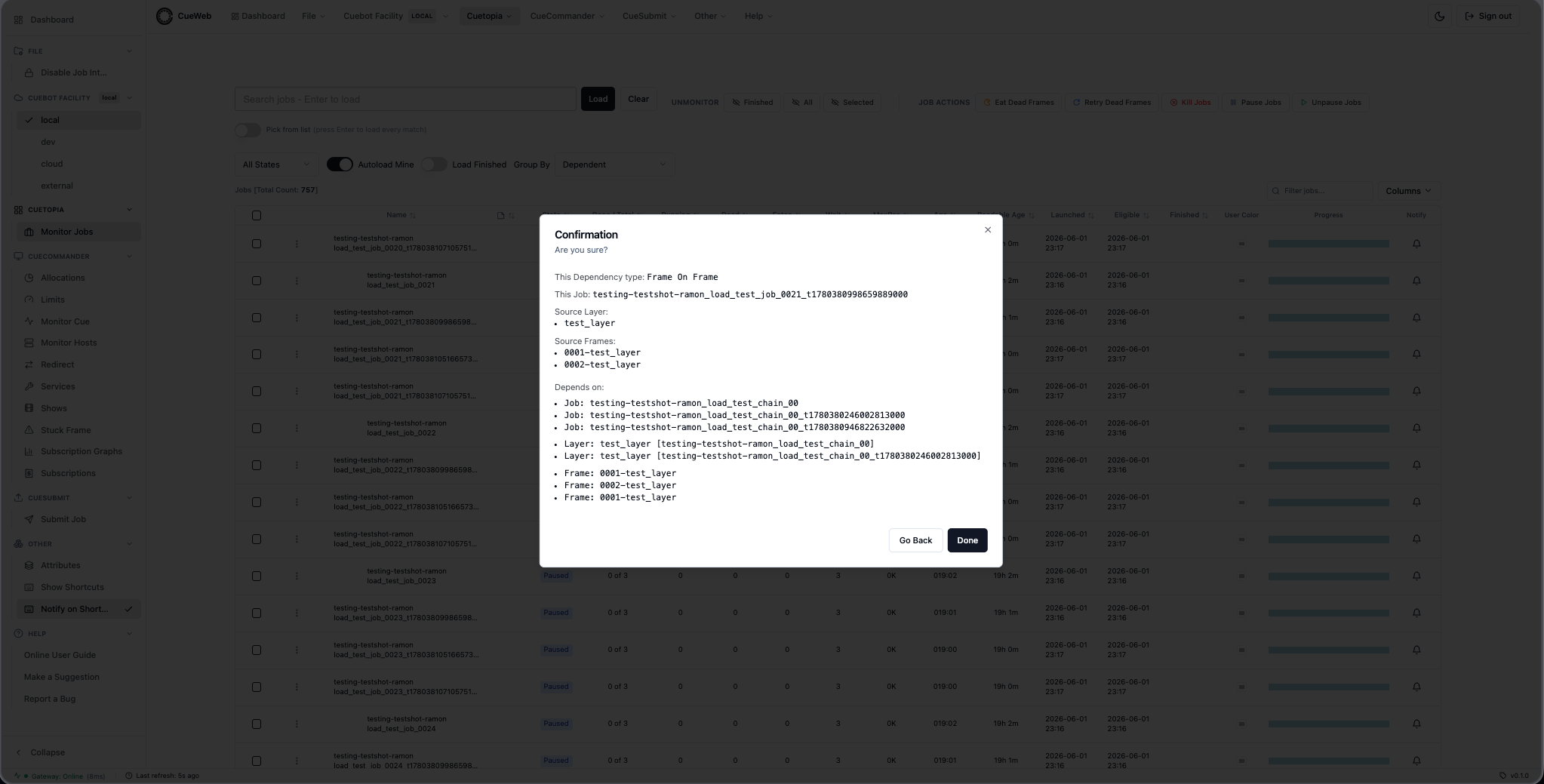

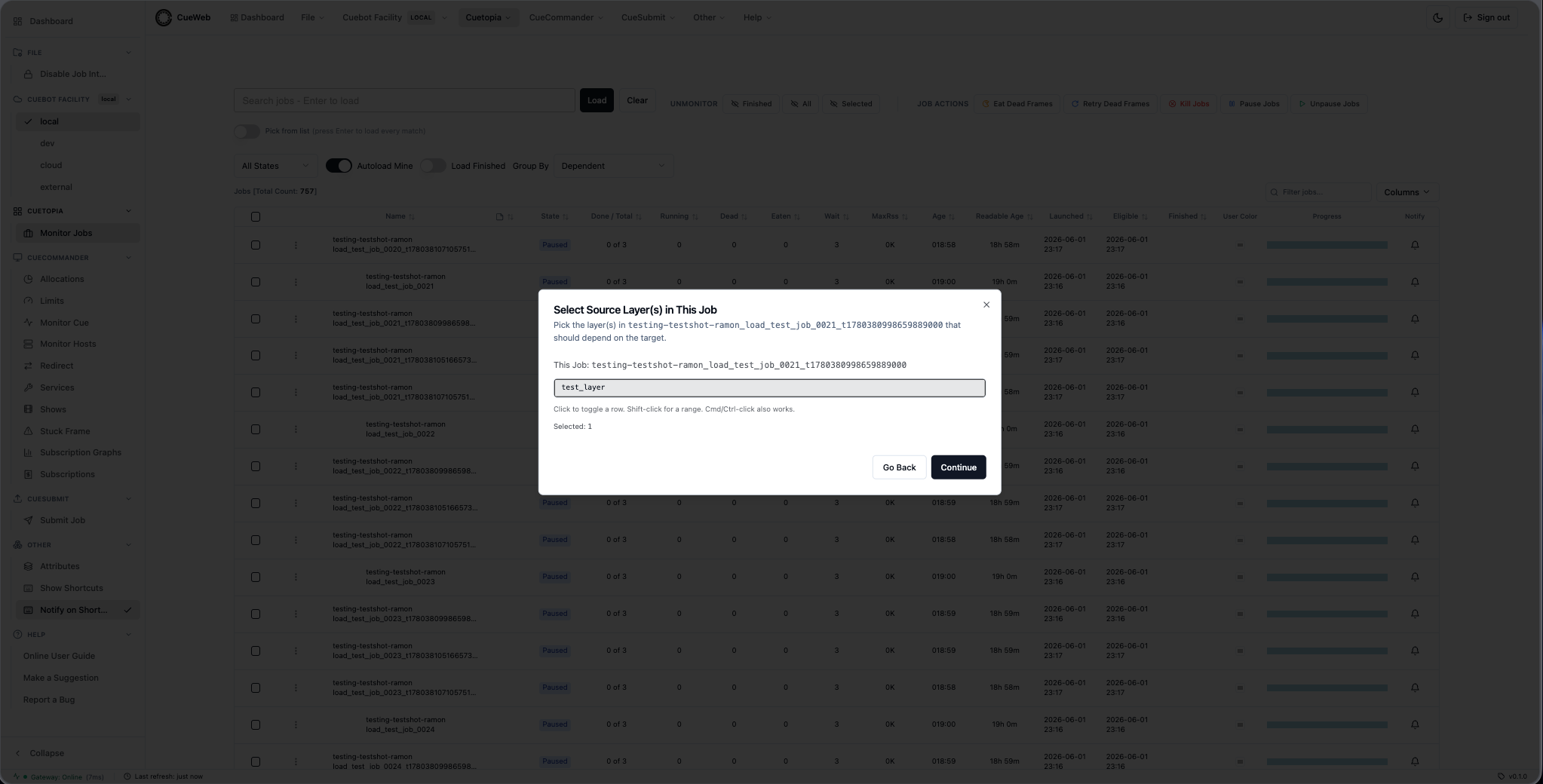

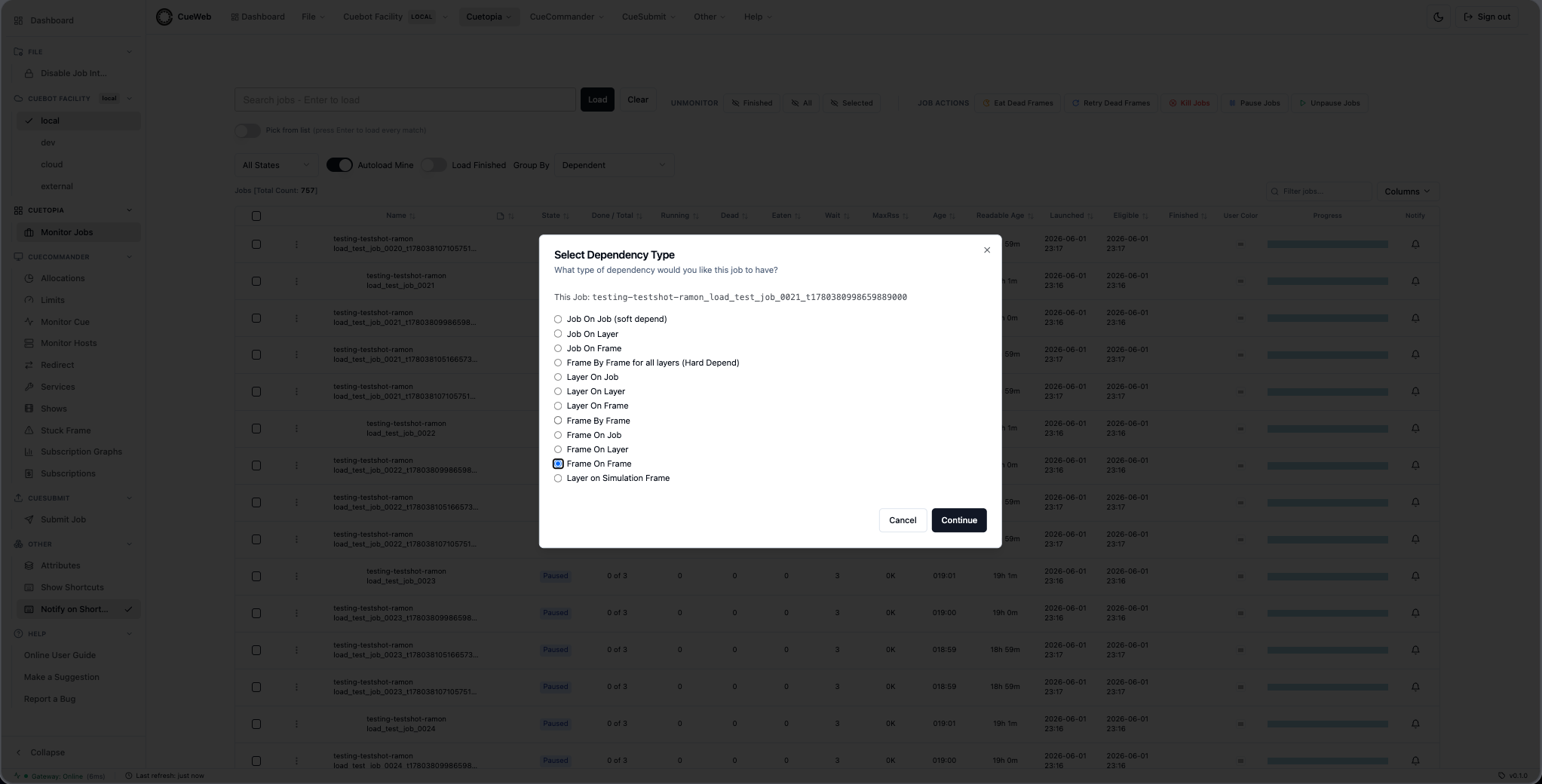

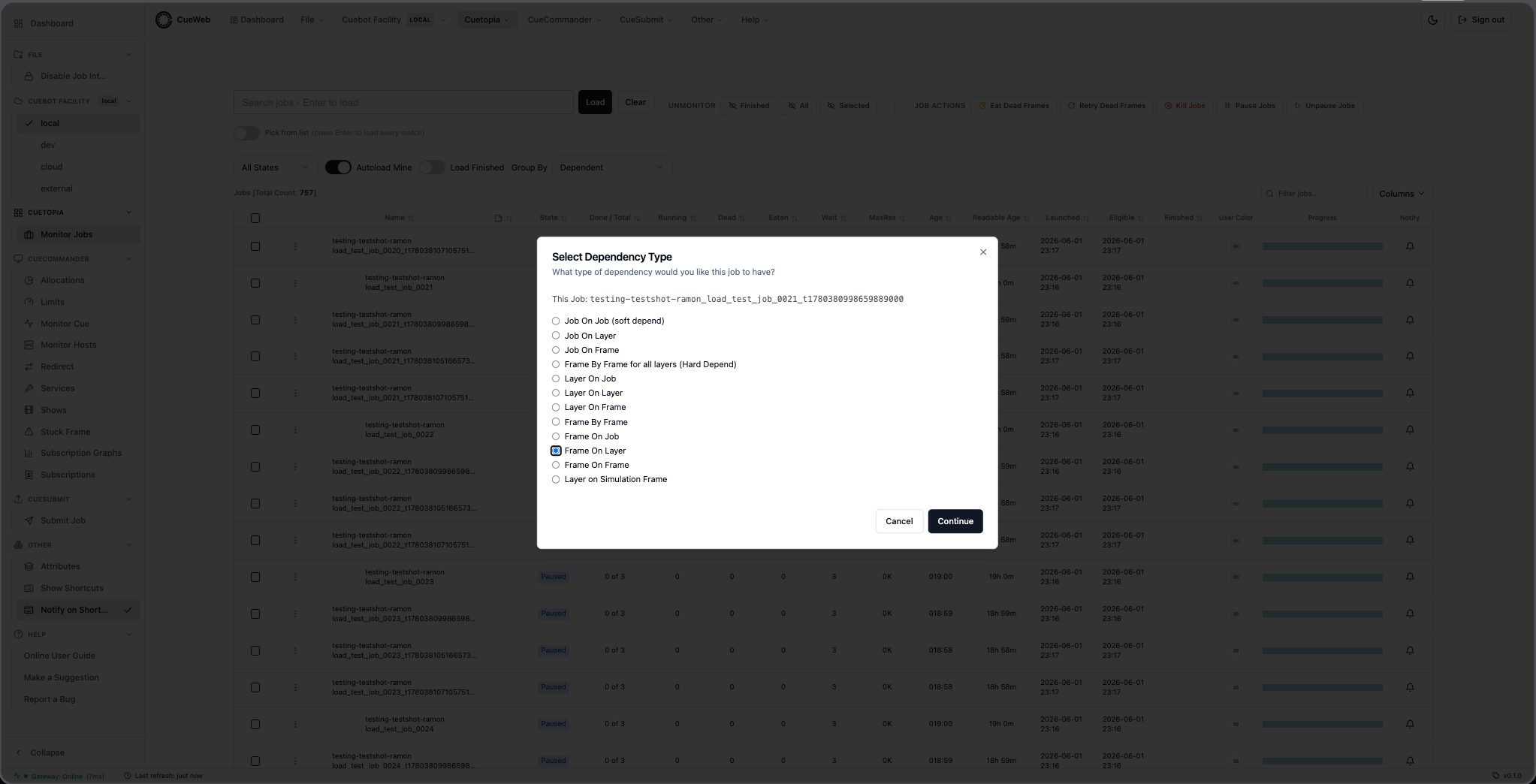

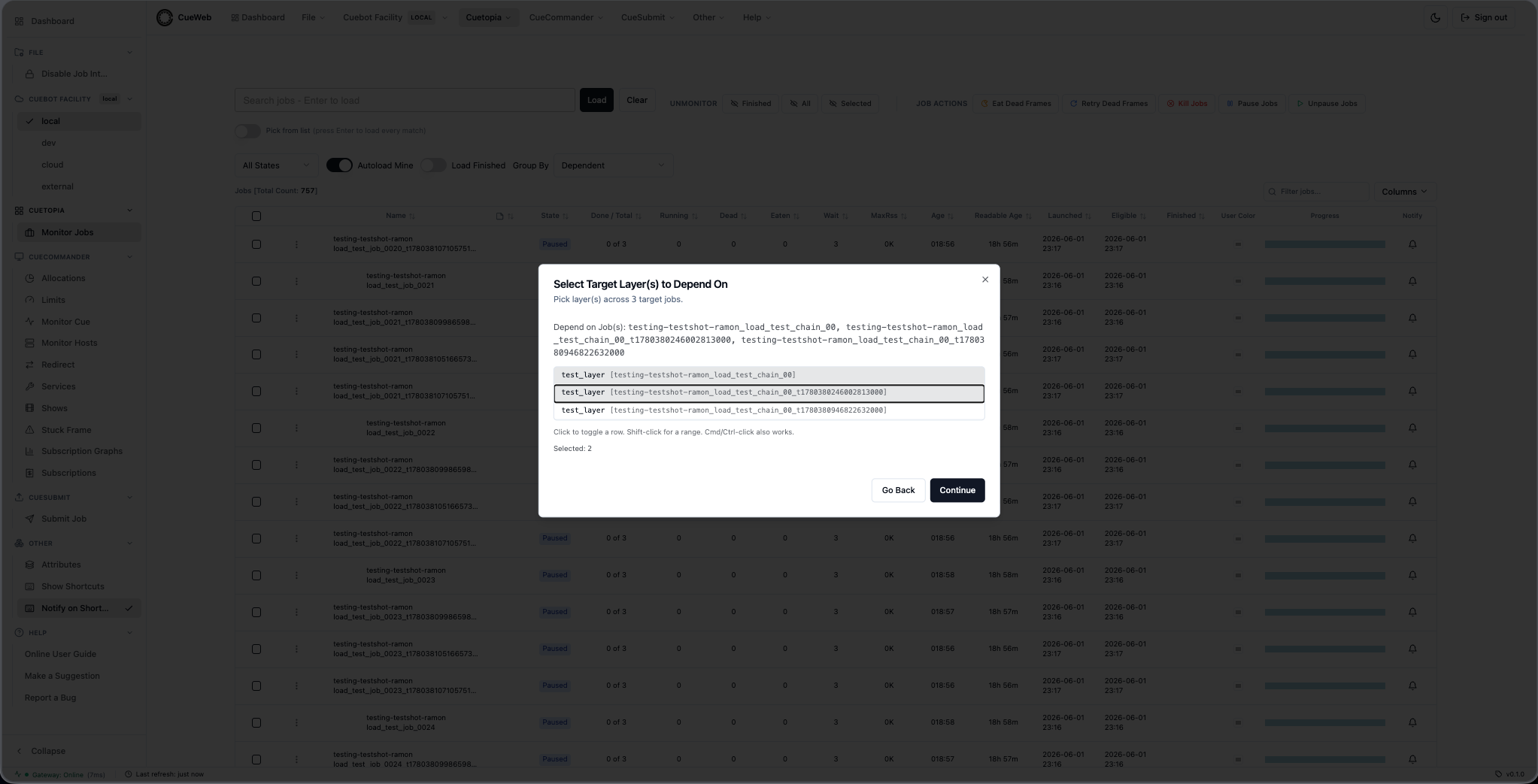

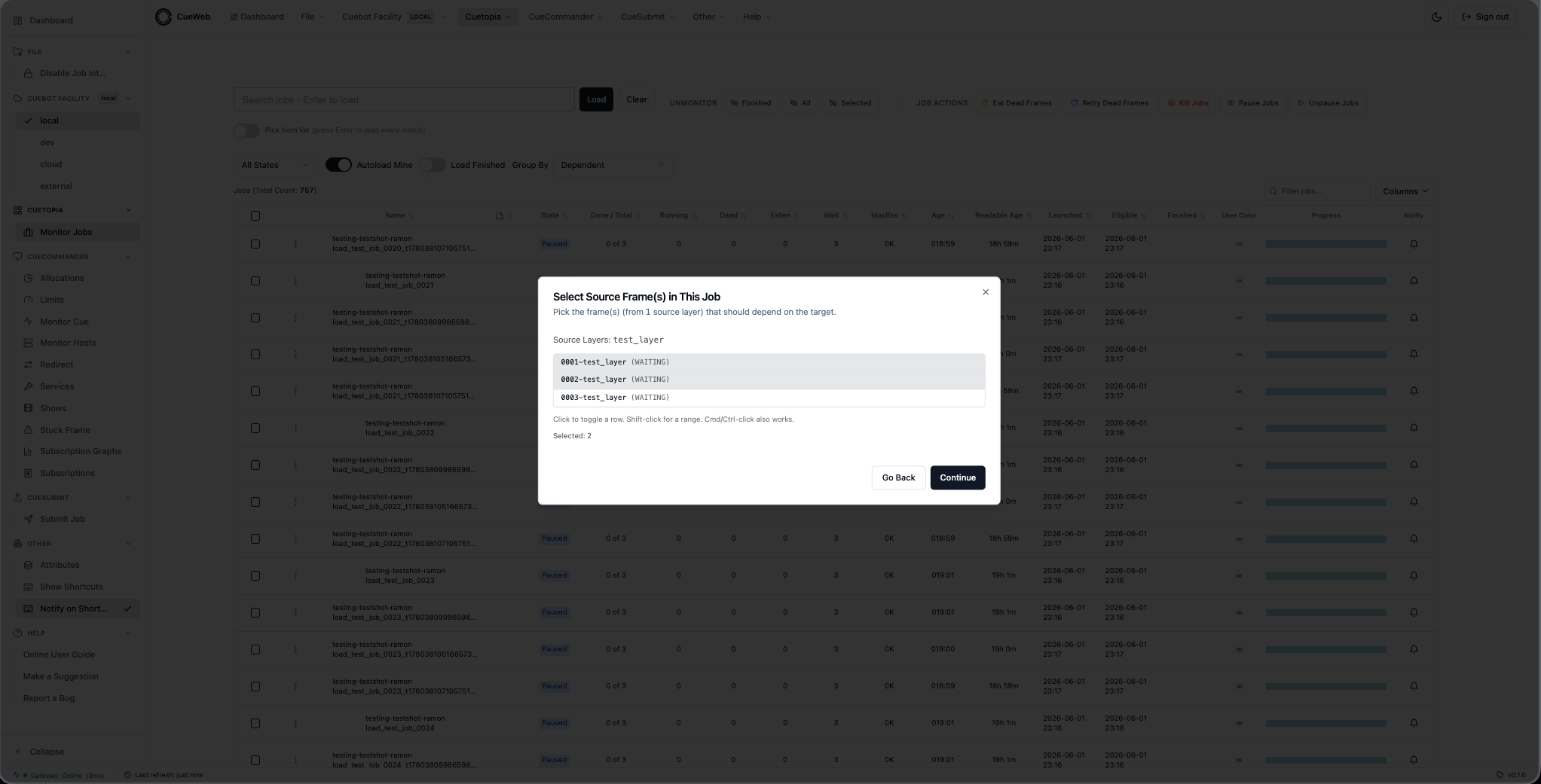

Dependency Wizard…	Open a themed three-step dialog mirroring CueGUI’s DependWizard. Step 1 picks the dependency type (the three Job-On-X types are supported; the other CueGUI types are listed as CueGUI only to set expectations). Step 2 prompts for the target object’s identifiers (job name, plus layer / frame names as needed). Step 3 confirms and dispatches to CreateDependencyOnJob / CreateDependencyOnLayer / CreateDependencyOnFrame via the matching /api/job/action/createdependon* proxy route. See Dependency Wizard dialog.
Drop External Dependencies	Drop external job-on-job dependencies via the DropDepends RPC with target = EXTERNAL.
Drop Internal Dependencies	Drop internal layer-on-layer dependencies via the DropDepends RPC with target = INTERNAL.
Set User Color / Clear User Color	Drive the User Color column for this job. (placeholder)
Set Priority…	Open a themed dialog with a 1-100 slider + number input to adjust the job’s dispatch priority. Higher numbers dispatch first; default is 100. After Apply the Jobs table updates the Priority column optimistically (no wait for the 5s poll). Available everywhere the job context menu appears - both Cuetopia → Monitor Jobs (/) and CueCommander → Monitor Cue (/monitor-cue); the entry is not gated by usePathname(). See Set Priority dialog.
Set Max Retries	Edit the per-frame retry budget.
Reorder Frames / Stagger Frames	Open the reorder / stagger dialogs. (placeholder)
Pause / Unpause	Single toggle entry: shows Pause when the job is running and Unpause when the job is already paused. The label, icon (TbPlayerPause / TbPlayerPlay) and dispatched action all flip on the row’s isPaused flag. The entry is shown disabled (grayed) when the job’s state === "FINISHED" (a terminal state can’t be paused), and when the global Disable Job Interaction safety flag is on. Active in all other states (In Progress, Failing, Dependency).
Auto-Eat On / Auto-Eat Off	Toggle Auto-Eat.
Retry Dead Frames	Retry every dead frame.
Eat Dead Frames	Mark every dead frame as eaten.
Unbook	Unbook running frames. (placeholder)
Kill	Terminate the job.
Show Progress Bar	Surface the stacked progress bar for the job. (placeholder)

Layer Actions

Action	Description
View Layer	Navigate to the layer detail page.
Copy Layer Name	Copy the full layer name to the clipboard.
Drop / View / Wizard dependency items	Manage layer-level dependencies. (placeholders)
Reorder Frames / Stagger Frames	Open the reorder / stagger dialogs. (placeholder)
Properties	Open the layer properties dialog. (placeholder)
Kill	Kill every frame in the layer.
Eat	Eat every frame in the layer.
Retry	Retry every frame in the layer.
Retry Dead Frames	Retry only the dead frames.

Frame Actions

Action	Description
Tail Log / View Log	Open the in-browser log viewer at /frames/<frameName>. Same target as the row’s double-click handler. Surfaces a friendly toast when the frame has not been dispatched yet (no log file on disk).
View Log on <editor>	Launches the log file in a desktop editor. Only rendered when NEXT_PUBLIC_LOG_EDITOR_URL is set. The menu label is derived from the configured value (vscode://... -> “View Log on VSCode”, subl://... -> “View Log on Sublime Text”, txmt://... -> “View Log on TextMate”, idea://... -> “View Log on IntelliJ”, unrecognized -> “View Log in external editor”). See External editor integration below.
Copy Log Path	Copy the absolute log path to the clipboard.
Copy Frame Name	Copy the full frame name.
View Host	Navigate to the host detail page. (placeholder)
Drop / View dependency items	Manage frame-level dependencies. (placeholders)
Filter Selected Layers	Narrow the frames table to the frame’s layer (same as clicking the layer row).
Reorder	Open the reorder dialog. (placeholder)
Preview All	Sequence-preview integration. (placeholder)
Retry	Retry the frame.
Eat	Mark the frame as eaten.
Kill	Kill the running frame.
Eat and Mark done	Eat the frame and treat it as succeeded. (placeholder)
View Processes	Show RQD processes attached to the frame. (placeholder)

External editor integration

The Frame context menu’s View Log on <editor> item launches the log file in a desktop editor.

Aspect	Description
Env var	NEXT_PUBLIC_LOG_EDITOR_URL (build-time). Default in the sandbox deployment is vscode://file{path}; the Dockerfile-level default is empty (item hidden).
Template	The literal {path} is replaced with the absolute log path when the item is clicked. Common values: vscode://file{path}, vscode-insiders://file{path}, subl://open?url=file://{path}, txmt://open?url=file://{path}, idea://open?file={path}.
Why not $EDITOR?	Web browsers can’t read the user’s shell environment or launch arbitrary local programs the way CueGUI does. The URL-scheme approach is the web equivalent: the same trick GitHub’s “Open in VSCode” button uses.
Missing-handler detection	If the chosen editor isn’t installed on the user’s machine, CueWeb shows a warning toast after a short delay pointing the user at the alternatives.
Frame-state guard	When the frame hasn’t been dispatched yet by RQD (no log file on disk), the handler shows a friendly warning toast instead of handing a non-existent path to the editor.

---

Set Priority dialog

The job context menu’s Set Priority… entry opens a themed dialog with a 1-100 range slider and a matching number input - either control drives the value, and both stay in sync. The number input is pre-filled with the job’s current priority. Higher numbers dispatch first; cuebot’s default is 100. Available everywhere the job context menu appears - both Cuetopia → Monitor Jobs (/) and CueCommander → Monitor Cue (/monitor-cue). The dialog and the dispatched action are identical on either page; only the View Job entry above it remains gated to /monitor-cue.

Mounted once via <SetPriorityDialog /> in cueweb/app/jobs/data-table.tsx; opens in response to a cueweb:open-set-priority CustomEvent that setPriorityGivenRow(row) in cueweb/app/utils/action_utils.ts dispatches with { job }. Lives in cueweb/components/ui/set-priority-dialog.tsx.

After Apply:

• setJobPriority(job, value) from action_utils.ts posts { job, val } to /api/job/action/setpriority, which forwards to /job.JobInterface/SetPriority on the REST gateway.
• A success toast confirms the new value.
• The dialog dispatches a cueweb:priority-changed CustomEvent that the Jobs table consumes to update the row’s Priority column optimistically, so the change is visible without waiting for the regular 5-second poll.

---

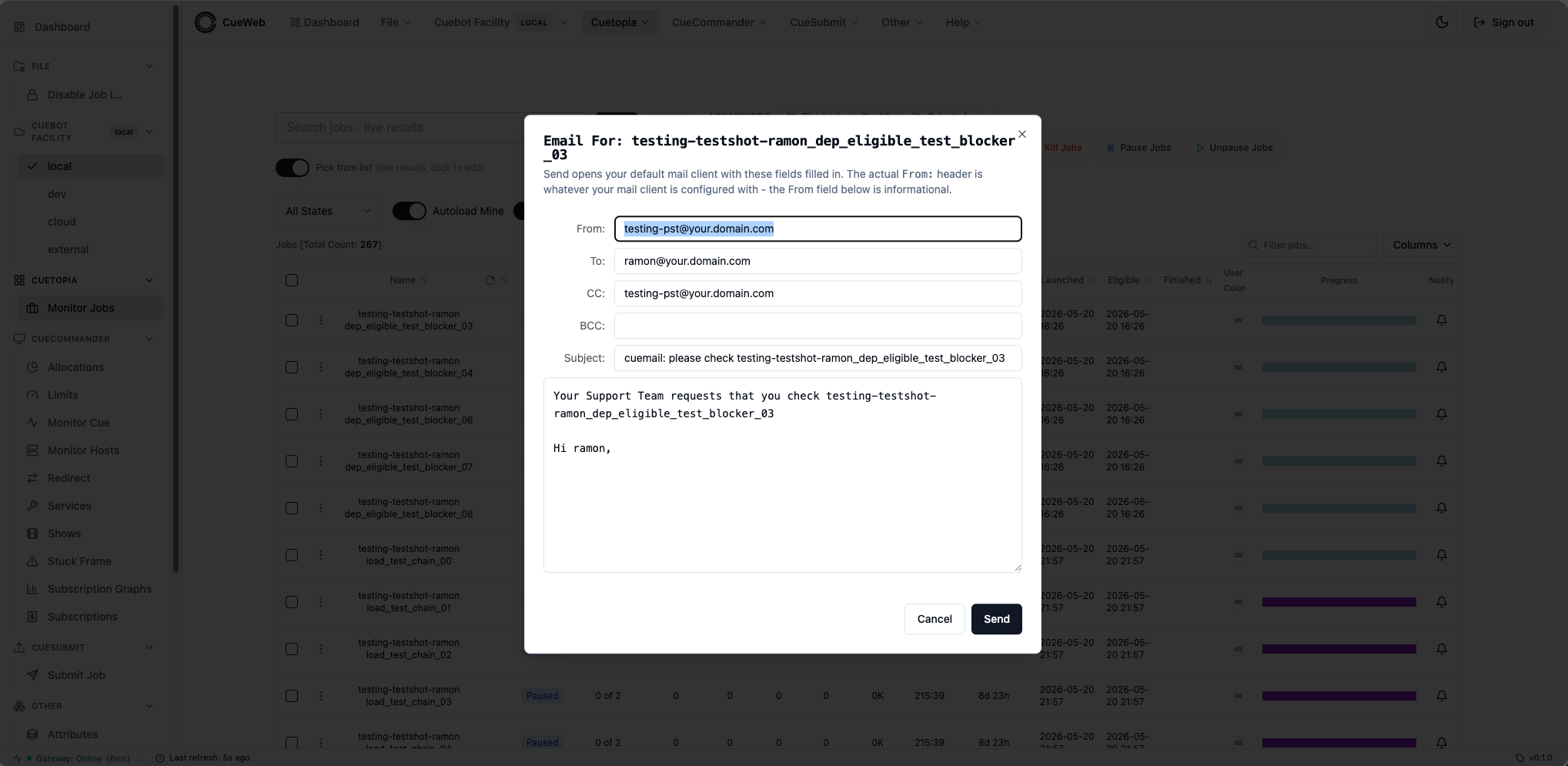

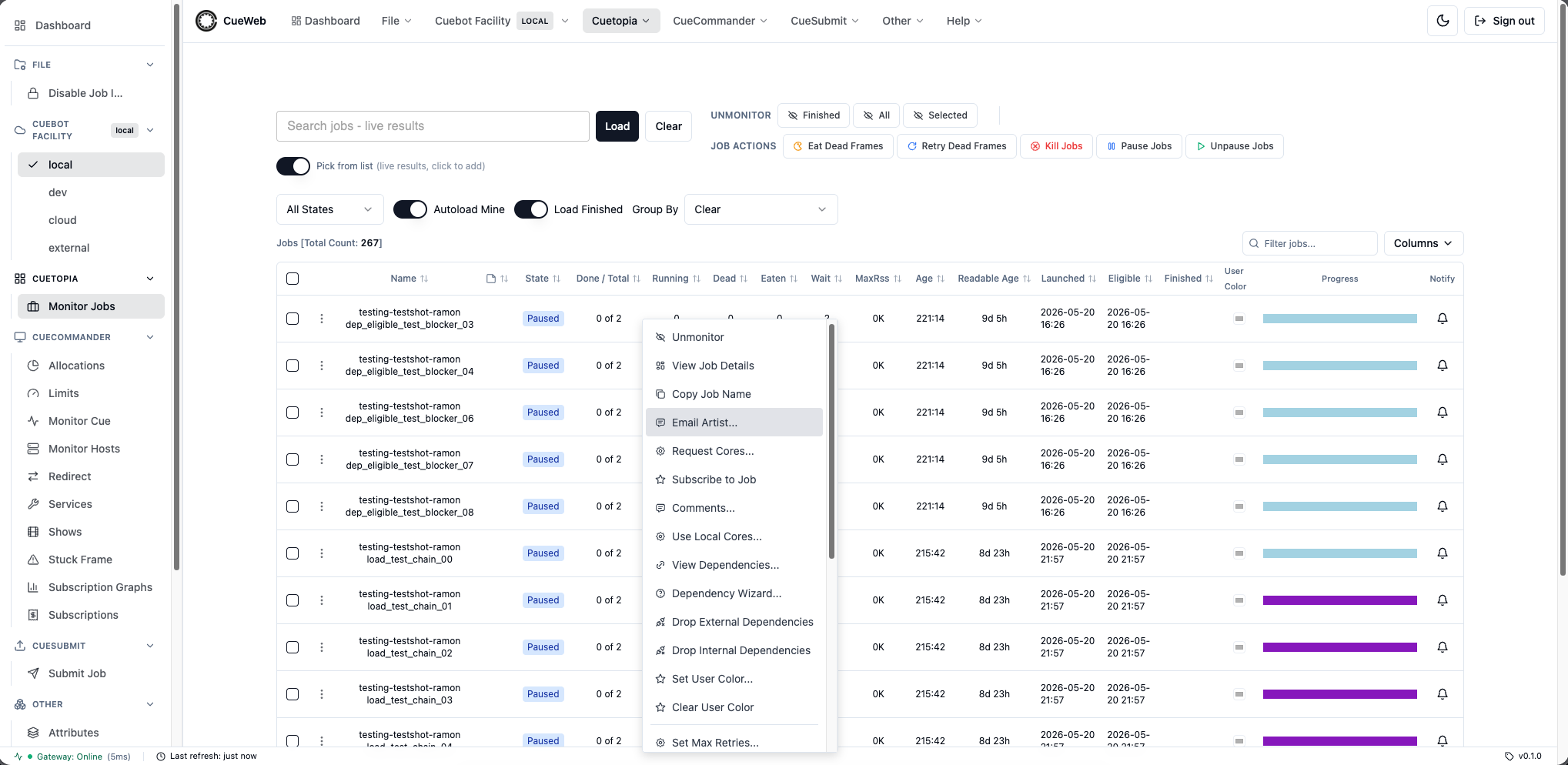

Email Artist dialog

The job context menu’s Email Artist… entry mirrors CueGUI’s EmailDialog. Mounted once via <EmailArtistDialog /> in cueweb/app/jobs/data-table.tsx; opens in response to a cueweb:open-email-artist CustomEvent that emailArtistGivenRow(row) in cueweb/app/utils/action_utils.ts dispatches with { job }. Lives in cueweb/components/ui/email-artist-dialog.tsx.

Defaults derived from the row:

Field	Default value
From	<show>-<NEXT_PUBLIC_EMAIL_SUPPORT_SUFFIX>@<NEXT_PUBLIC_EMAIL_DOMAIN> (informational - see below)
To	<user>@<NEXT_PUBLIC_EMAIL_DOMAIN> (the job’s owner)
CC	same as From
BCC	empty
Subject	cuemail: please check <jobName>
Body	Your Support Team requests that you check <jobName> followed by Hi <user>,

Send mechanism: the Send button builds a mailto: URL with the dialog’s to, cc, bcc, subject, and body and assigns it to window.location.href. The OS hands the URL to the user’s default mail client (Mail.app, Outlook, Thunderbird, etc.).

Browsers don’t let mailto: override the user’s account’s From: header, so the From field in the dialog is informational only - it surfaces the support alias the team typically uses. CueGUI’s EmailDialog can spoof From because it sends through CueGUI’s own SMTP relay; CueWeb’s mailto-based equivalent uses whatever account the user’s mail client is configured with.

Configurable at build time via two env vars (see Environment Variables):

• NEXT_PUBLIC_EMAIL_DOMAIN (default your.domain.com).
• NEXT_PUBLIC_EMAIL_SUPPORT_SUFFIX (default pst, matching CueGUI’s “production support team” alias convention).

---

Request Cores dialog

The job context menu’s Request Cores… entry mirrors CueGUI’s RequestCoresDialog. Mounted once via <RequestCoresDialog /> in cueweb/app/jobs/data-table.tsx; opens in response to a cueweb:open-request-cores CustomEvent that requestCoresGivenRow(row) in cueweb/app/utils/action_utils.ts dispatches with { job }. Lives in cueweb/components/ui/request-cores-dialog.tsx.

Defaults derived from the row:

Field	Default value
From	The signed-in user’s email (session.user.email, falling back to <sessionName>@<NEXT_PUBLIC_EMAIL_DOMAIN> and then to empty).
To	Empty - the user fills in the recipient (team lead, support queue, etc.).
CC	<show>-<NEXT_PUBLIC_EMAIL_REQUEST_CORES_SUFFIX>@<NEXT_PUBLIC_EMAIL_DOMAIN>.
BCC	Empty.
Subject	Requesting Cores for <jobName>.
Body (auto-populated)	Requesting more cores for: header, Job Name: + Group (Folder):, then a fixed-width table of layers with waitingFrames + runningFrames > 0 (Layer Name / Minimum Memory / Min Cores).
Date/Time by which completion is needed	Editable textarea, appended to the body on Send.
Additional notes (flag priority frames etc.)	Editable textarea, appended to the body on Send.

Layer breakdown is fetched asynchronously on dialog open via getLayersForJob(job); the body shows Loading layers... until the response lands, then re-renders with the filtered table.

Send mechanism: the Send button stitches the auto-populated prelude together with the Date/Time and Notes sections, builds a mailto: URL with to, cc, bcc, subject, and body, and assigns it to window.location.href. Same From:-is-informational caveat as the Email Artist dialog. The button is disabled while To is empty.

Configurable at build time:

• NEXT_PUBLIC_EMAIL_DOMAIN (default your.domain.com, shared with Email Artist).
• NEXT_PUBLIC_EMAIL_REQUEST_CORES_SUFFIX (default support, matching CueGUI’s <show>-support@<domain> convention - distinct from Email Artist’s pst).

Subscribe to Job dialog

The job context menu’s Subscribe to Job entry mirrors CueGUI’s SubscribeToJobDialog. Unlike the Notify bell - which is a browser-side subscription that fires an in-app toast (and optional desktop popup) - this entry registers a server-side, email subscriber on Cuebot. When the job reaches FINISHED, Cuebot sends an email to the saved address.

Mounted once via <SubscribeToJobDialog /> in cueweb/app/jobs/data-table.tsx; opens in response to a cueweb:open-subscribe-to-job CustomEvent that subscribeToJobGivenRow(row) in cueweb/app/utils/action_utils.ts dispatches with { job }. Lives in cueweb/components/ui/subscribe-to-job-dialog.tsx.

Defaults derived from the row:

Field	Default value
Job name	Read-only, taken from the row.
From	Read-only label - NEXT_PUBLIC_SUBSCRIBE_FROM_EMAIL if set, otherwise opencue-noreply@<NEXT_PUBLIC_EMAIL_DOMAIN>. Informational only - the actual sender is whatever Cuebot is configured with.
To	Editable; the signed-in user’s session.user.email, falling back to <sessionName-or-jobUser>@<NEXT_PUBLIC_EMAIL_DOMAIN>.

Save mechanism: the Save button trims and validates the To address with a permissive ^\S+@\S+\.\S+$ check (Cuebot does its own validation server-side), then calls addJobSubscriber(job, subscriber) from action_utils.ts. That posts { job, subscriber } to /api/job/action/addsubscriber, which forwards to /job.JobInterface/AddSubscriber via the REST gateway. A success toast confirms the subscription:

The Save button is disabled while the To field is empty or while a save is in flight. Cancel closes the dialog without contacting Cuebot.

Configurable at build time:

• NEXT_PUBLIC_EMAIL_DOMAIN (default your.domain.com, shared with the other email dialogs).
• NEXT_PUBLIC_SUBSCRIBE_FROM_EMAIL (default opencue-noreply@<EMAIL_DOMAIN>). Use this to surface a deployment-specific informational From label without touching the code.

---

Drop External / Internal Dependencies

Two one-click context-menu entries clear the matching depend bucket without opening a dialog. The action posts { job, target } to /api/job/action/dropdepends, which validates target against { INTERNAL, EXTERNAL, ANY_TARGET } server-side and forwards to /job.JobInterface/DropDepends. On success the helper dispatches cueweb:refresh-now (an immediate poll of the Jobs table) and cueweb:depends-changed (clears the Group-By Dependent tree cache and bumps its fetch token), so the Jobs row state, the chevrons in the dependency tree, and any open View Dependencies dialog all reconverge without waiting for the 5s autoload tick.

Entry	Action
Drop External Dependencies	DropDepends with target = EXTERNAL - removes every cross-job depend.
Drop Internal Dependencies	DropDepends with target = INTERNAL - removes every within-job (layer-on-layer / frame-on-X) depend.

---

View Dependencies dialog

The job context menu’s View Dependencies… entry mirrors CueGUI’s DependDialog: a read-only table of the job’s depend.DependSeq so the user can audit which depends are still blocking the job.

Mounted once via <ViewDependenciesDialog /> in cueweb/app/jobs/data-table.tsx; opens in response to a cueweb:open-view-dependencies CustomEvent that viewDependenciesGivenRow(row) in cueweb/app/utils/action_utils.ts dispatches with { job }. Lives in cueweb/components/ui/view-dependencies-dialog.tsx.

On open, the dialog calls fetchJobDepends(job) from action_utils.ts, which posts { job } to /api/job/action/getdepends. The proxy route forwards to /job.JobInterface/GetDepends via the REST gateway, and the dialog renders the returned DependSeq as a table.

Columns mirror CueGUI’s DependDialog table:

Column	Source field
Type	depend.type (e.g. JOB_ON_JOB, LAYER_ON_FRAME).
Target	depend.target (INTERNAL or EXTERNAL).
Active	depend.active boolean - true while the depend still blocks the dependent.
OnJob	depend.depend_on_job - the job this depend waits on.
OnLayer	depend.depend_on_layer - the layer (empty for job-level depends).
OnFrame	depend.depend_on_frame - the frame (empty for job / layer-level depends).

The Refresh button re-issues the GetDepends RPC so the user can verify that a freshly created depend appears in the table without re-opening the dialog. Close dismisses the dialog.

---

Dependency Wizard dialog

The job context menu’s Dependency Wizard… entry mirrors CueGUI’s DependWizard: a multi-step dialog that walks the user through creating a new depend on the current job.

Mounted once via <DependencyWizardDialog /> in cueweb/app/jobs/data-table.tsx; opens in response to a cueweb:open-dependency-wizard CustomEvent that dependencyWizardGivenRow(row) in cueweb/app/utils/action_utils.ts dispatches with { job }. Lives in cueweb/components/ui/dependency-wizard-dialog.tsx.

The wizard implements every CueGUI depend.DependType, including the UI-only Hard Depend variant. Every picker is multi-select (matching CueGUI’s QListWidget(ExtendedSelection) behavior) and Done fires the full cross-product of source x target picks. The table below summarizes the step list and underlying RPC per type:

Type	Steps	Underlying RPC(s)
JOB_ON_JOB	Type → Job → Confirm	/job.JobInterface/CreateDependencyOnJob
JOB_ON_LAYER	Type → Job → Layer → Confirm	/job.JobInterface/CreateDependencyOnLayer
JOB_ON_FRAME	Type → Job → Layer → Frame → Confirm	/job.JobInterface/CreateDependencyOnFrame
JFBF (Hard Depend - “Frame By Frame for all layers”)	Type → Job → Confirm	/layer.LayerInterface/CreateFrameByFrameDependency per matched-type layer pair, across every picked target job
LAYER_ON_JOB	Type → Source Layer → Job → Confirm	/layer.LayerInterface/CreateDependencyOnJob
LAYER_ON_LAYER	Type → Source Layer → Job → Layer → Confirm	/layer.LayerInterface/CreateDependencyOnLayer
LAYER_ON_FRAME	Type → Source Layer → Job → Layer → Frame → Confirm	/layer.LayerInterface/CreateDependencyOnFrame
FRAME_BY_FRAME	Type → Source Layer → Job → Layer → Confirm	/layer.LayerInterface/CreateFrameByFrameDependency
FRAME_ON_JOB	Type → Source Layer → Source Frame → Job → Confirm	/frame.FrameInterface/CreateDependencyOnJob
FRAME_ON_LAYER	Type → Source Layer → Source Frame → Job → Layer → Confirm	/frame.FrameInterface/CreateDependencyOnLayer
FRAME_ON_FRAME	Type → Source Layer → Source Frame → Job → Layer → Frame → Confirm	/frame.FrameInterface/CreateDependencyOnFrame
LAYER_ON_SIM_FRAME	Type → Source Layer → Job → Sim Layer → Frame → Confirm	/frame.FrameInterface/CreateDependencyOnFrame per source frame x picked sim frame

Fan-out semantics: Done issues len(sources) * len(targets) parallel RPCs through one performAction call so the user gets a single summary toast. Picking M source layers and N target layers under LAYER_ON_LAYER, for example, fires M*N CreateDependencyOnLayer RPCs.

1. Select Dependency Type. A radio-group lists every depend.DependType CueGUI offers, including the UI-only Hard Depend variant. All twelve are now wired.
2. Source pickers (Layer / Frame in THIS job). Layer-On-X, Frame-By-Frame, Frame-On-X, and Layer-On-Sim-Frame all need source object(s) in this job before targeting another job. The wizard fetches getLayersForJob(thisJob) to populate the source-layer picker; the source-frame picker then fetches getFramesForJob(thisJob) once and filters client-side to every picked source layer (so the user can multi-select layers and still pick frames across them).
3. Target Job picker. A regex search box drives a scrollable list of matching jobs (debounced 250ms, capped at 200 rows). The query is forwarded to getJobsForRegex(regex, include_finished=true), which posts to /api/job/getjobs. An empty query falls back to .*. Multi-select - pick as many target jobs as you want.
4. Target Layer picker. Layers are fetched in parallel from every picked target job via getLayersForJob and concatenated. Each row carries its parentJobName; when multiple target jobs are picked the parent is rendered as a [parentJob] annotation so duplicates can be told apart. For LAYER_ON_SIM_FRAME the list is filtered client-side to layers whose services array contains a token matching /sim/i.
5. Target Frame picker. Frames are fetched in parallel from every parent job of the picked target layers, then filtered to the picked layer names. Each row shows (state) [layerName] <parentJobName> annotations where useful for disambiguation.
6. Confirmation. A read-only summary of the dependency type, this job, picked source object(s), and picked target object(s). Done dispatches to the matching wrapper in action_utils.ts, which expands the full source x target cross-product into one performAction call (parallel RPCs, single summary toast).

The Hard Depend (JFBF) case is handled client-side: on Done the wizard fetches the layer list for this job and for every picked target job in parallel, pairs each target job’s layers with this job’s layers by layer.type, and bulk-fires /layer.LayerInterface/CreateFrameByFrameDependency for every matched pair across every target job. The success toast notes how many target jobs and layer pairs were created (<this-job> -> <N> jobs (<M> layer pairs)). If no types match, the wizard surfaces a warning toast instead of opening empty RPCs against Cuebot.

Each step has Go Back / Continue (or Done) buttons; Cancel on step 1 dismisses the wizard. The dialog is locked while a Done request is in flight, and Go Back rewinds one step at a time so a wrong choice can be corrected without restarting the wizard.

Wizard walk-throughs

The screenshots below show the screen flow for each dependency type. Every picker is multi-select; Done fires the full source x target cross-product (see the table above for which RPC each type calls).

Job On Job (3 steps) - the shortest path. Pick the target job(s) the current job should wait on.

Job On Layer (4 steps) - one extra target-layer picker.

Job On Frame (5 steps) - drill all the way down to specific target frames.

Frame By Frame for all layers (Hard Depend, 3 steps) - the wizard pairs source/target layers by layer.type and bulk-fires one Frame-By-Frame depend per matched pair on Done.

Layer On Job (4 steps) - first source-side type. Pick layer(s) in THIS job, then the target job(s).

Layer On Layer (5 steps).

Layer On Frame (6 steps).

Frame By Frame (5 steps). Single source layer x single target layer, frame-by-frame.

Frame On Job (5 steps). Drill into source frames, then pick target job(s).

Frame On Layer (6 steps).

Frame On Frame (7 steps) - the longest path. Drill into a source frame and a target frame.

Layer On Simulation Frame. Similar to Layer On Frame, but the target layer picker is filtered to layers whose services array matches /sim/i.

---

CueSubmit (Job Submission UI)

CueWeb ships a browser-based equivalent of the standalone CueSubmit CLI tool at the /cuesubmit route, reachable from the CueSubmit top-level dropdown in the header (and the matching entry in the sidebar / mobile nav drawer). It mirrors the CueSubmit dialog layout one-for-one with a few quality-of-life improvements made possible by running in the browser.

Sections

Section	Fields
Job Info	Job Name, Show (dropdown populated from /api/show/getshows), Shot, Facility (dropdown from NEXT_PUBLIC_CUEBOT_FACILITIES), Username
Layer Info	Layer Name, Dependency Type (none / Layer / Frame), Frame Spec, Chunk Size, Memory, Job Type, Services, Limits, Override Cores
Per-type options	Shell: Command To Run. Maya: Maya File + Camera. Nuke: Nuke File + Write Nodes. Blender: Blender File + Output Path + Output Format.
Final command	Read-only preview that updates per-keystroke. Mirrors the same text cuebot will see.
Submission Details	Multi-layer table (Layer Name / Job Type / Frames / Depend Type) with + / − / ↓ / ↑ buttons. Clicking a row loads it into the Layer Info editor.
Action row	Cancel · Reset · Submit.

Validation rules

Field	Rule
Job Name, Layer Name, Shot	Letters, numbers, ., -, _ only. No spaces (cuebot uses the name in the log path).
Frame Spec	Must match cuebot frame-spec syntax: 1-10, 1-100x2, 1-100y3, 1-100:2, comma-separated segments. Reverse ranges (e.g. 10-1) are rejected.
Memory	Number with optional unit suffix (256m, 1g, 3.2G). Empty inherits the service’s int_mem_min.
Chunk Size	Positive integer.
At least one layer	Submit is disabled with a validation error when zero layers are configured.

Username and the Edit override

When CueWeb is deployed with NEXT_PUBLIC_AUTH_PROVIDER non-empty, the Username field is pre-populated from the signed-in session and rendered read-only. A small Edit checkbox to the right of the field toggles it editable. Unticking the box snaps the value back to the signed-in user. In sandbox mode (no auth) the field is always editable and the Edit checkbox is hidden.

Defaults tuned for the OpenCue sandbox

The form chooses defaults that produce a runnable submission against the seeded sandbox out of the box:

• Memory: 256m. The seeded default service has a 3.2 GB minimum, which the sandbox RQD usually can’t satisfy. The 256 MB default keeps trivial jobs dispatchable.
• Facility: local when the user picks [Default]. The seeded sandbox’s RQD belongs to the local.general allocation; cuebot’s internal fallback (cloud) does not match.
• UID: derived deterministically from the username (1000-65000). Cuebot rejects uid=0 with Cannot launch jobs as root, so CueWeb never emits zero.

These three defaults match what the standalone CueSubmit CLI tool produces against the same sandbox.

Autocomplete history

Job Name, Shot, and Layer Name are wired to native <datalist> dropdowns populated from localStorage (per-field, deduped case-insensitively, capped at 25 entries). The Python CueSubmit CLI keeps an on-disk cache for the same reason - so a user’s previous values are one keystroke away. On every successful submit the relevant values are recorded automatically.

Draft auto-save

The whole form auto-saves to localStorage on every change and restores on mount, so an accidental refresh doesn’t wipe a multi-layer setup. The draft is cleared on Cancel, on Reset (after the confirm dialog), and on a successful submit.

Reset

Between Cancel and Submit, a Reset button clears every field and brings the form back to the blank-canvas state. A themed confirmation dialog (Radix-based, light/dark aware) replaces the native browser confirm() so the prompt doesn’t look like an OS pop-up. Autocomplete history is not cleared on Reset.

Submit flow

Step	Detail
1. Validate	The form payload is parsed against the zod schema before any network call. Inline error messages render under each field on blur.
2. Build spec	The server-side route builds the OpenCue cjsl XML spec - direct port of pyoutline’s outline.backend.cue.serialize (cores / threadable heuristic, depend element shape, service defaulting, XML escaping).
3. Launch	POST /api/job/submit proxies to job.JobInterface/LaunchSpecAndWait on the REST gateway, which returns the resolved job(s).
4. Persist history	Job Name, Shot, and all Layer Names are appended to the autocomplete histories; the draft is cleared.
5. Redirect	The page navigates to the tabbed /jobs/<name> job-detail view so the user can watch the new job’s frames go WAITING -> RUNNING -> SUCCEEDED.

“View in Monitor Jobs” deep link

The tabbed job-detail page has a View in Monitor Jobs button in its header (next to the title). Clicking it navigates to /?search=<jobname>. Cuetopia’s Jobs table reads the search URL param on mount, runs the same search the toolbar input would (regex-escaped so the literal job name matches), and then strips the param so a refresh doesn’t re-fire.

Help popovers

The ? buttons next to Frame Spec and Command To Run open small themed popovers with:

• Frame Spec examples: 1-10, 1-100x2, 1-100y2, 1-100:2, 1,3,5,7, 1-50,75-100.
• Command tokens substituted by cuebot at dispatch: #IFRAME#, #ZFRAME#, #FRAME_START#, #FRAME_END#, #FRAME_CHUNK#, #FRAMESPEC#, #LAYER#, #JOB#, #FRAME#.

---

API Integration

JWT Token Generation

CueWeb generates JWT tokens for REST Gateway authentication:

// Token structure
{
  "header": {
    "alg": "HS256",
    "typ": "JWT"
  },
  "payload": {
    "sub": "user-id",
    "exp": 1234567890  // Unix timestamp
  }
}

API Endpoints Used

CueWeb communicates with these REST Gateway endpoints:

Endpoint	Purpose
show.ShowInterface/GetShows	List available shows
show.ShowInterface/GetActiveShows	List active shows for the Shows page
show.ShowInterface/FindShow	Get specific show
show.ShowInterface/CreateShow	Create a show
show.ShowInterface/EnableBooking / EnableDispatching	Toggle a show’s booking / dispatch
show.ShowInterface/SetDefaultMaxCores / SetDefaultMinCores	Set a show’s default cores
show.ShowInterface/SetCommentEmail	Set a show’s comment notification email
show.ShowInterface/CreateSubscription	Subscribe a show to an allocation
show.ShowInterface/GetGroups	List a show’s groups for the group-tree detail page
job.GroupInterface/GetJobs	List a group’s jobs (group tree, lazy-loaded per group)
job.GroupInterface/ReparentGroups	Move groups under a new parent group (group-tree drag)
job.GroupInterface/ReparentJobs	Move jobs into a group (group-tree drag)
job.JobInterface/GetJobs	List jobs for show
job.JobInterface/FindJob	Get specific job
job.JobInterface/GetFrames	Get frames for job
job.JobInterface/Pause	Pause job
job.JobInterface/Resume	Resume job
job.JobInterface/Kill	Kill job
job.JobInterface/GetComments	List comments for a job
job.JobInterface/AddComment	Add a new comment to a job
comment.CommentInterface/Save	Update an existing comment’s subject/message
comment.CommentInterface/Delete	Delete a comment
layer.LayerInterface/GetLayer	Get layer details
layer.LayerInterface/GetFrames	Get frames for layer
frame.FrameInterface/Retry	Retry frame
frame.FrameInterface/Kill	Kill frame
frame.FrameInterface/Eat	Eat frame
host.HostInterface/GetHosts	List hosts for the Monitor Hosts page
facility.AllocationInterface/GetAll	List allocations (Allocations page + subscription dropdowns)
host.HostInterface/FindHost	Resolve a single host by name for the host detail page
host.HostInterface/GetProcs	List the procs running on a host (detail page Procs tab)
host.HostInterface/GetComments	List a host’s comments (detail page Comments tab)
host.HostInterface/Lock / Unlock	Lock / unlock a host
host.HostInterface/Reboot / RebootWhenIdle	Reboot a host immediately / when idle
host.HostInterface/AddTags / RemoveTags	Add / remove host tags

CueWeb Proxy Routes

The browser does not call REST Gateway directly; it goes through Next.js API proxies that attach the JWT. Comment- and host-related routes:

Route	Forwards to
POST /api/job/getcomments	job.JobInterface/GetComments
POST /api/job/action/addcomment	job.JobInterface/AddComment
POST /api/job/action/addsubscriber	job.JobInterface/AddSubscriber
POST /api/comment/action/save	comment.CommentInterface/Save
POST /api/comment/action/delete	comment.CommentInterface/Delete
POST /api/host/gethosts	host.HostInterface/GetHosts (unwraps the gateway’s double-nested {hosts:{hosts:[...]}} to a flat array)
POST /api/host/findhost	host.HostInterface/FindHost (unwraps to the bare host, or null)
POST /api/host/getprocs	host.HostInterface/GetProcs (unwraps {procs:{procs:[...]}} to a flat array)
POST /api/host/getcomments	host.HostInterface/GetComments (unwraps {comments:{comments:[...]}} to a flat array)
POST /api/host/action/lock	host.HostInterface/Lock
POST /api/host/action/unlock	host.HostInterface/Unlock
POST /api/host/action/reboot	host.HostInterface/Reboot
POST /api/host/action/rebootwhenidle	host.HostInterface/RebootWhenIdle
POST /api/host/action/addtags	host.HostInterface/AddTags (body { host, tags })
POST /api/host/action/removetags	host.HostInterface/RemoveTags (body { host, tags })
POST /api/show/getactiveshows	show.ShowInterface/GetActiveShows (unwraps {shows:{shows:[...]}} to a flat array)
POST /api/allocation/getall	facility.AllocationInterface/GetAll (unwraps {allocations:{allocations:[...]}} to a flat array)
POST /api/show/action/enablebooking	show.ShowInterface/EnableBooking (body { show, enabled })
POST /api/show/action/enabledispatching	show.ShowInterface/EnableDispatching (body { show, enabled })
POST /api/show/action/setdefaultmaxcores	show.ShowInterface/SetDefaultMaxCores (body { show, max_cores })
POST /api/show/action/setdefaultmincores	show.ShowInterface/SetDefaultMinCores (body { show, min_cores })
POST /api/show/action/setcommentemail	show.ShowInterface/SetCommentEmail (body { show, email })
POST /api/show/action/createsubscription	show.ShowInterface/CreateSubscription (body { show, allocation_id, size, burst })
POST /api/show/getgroups	show.ShowInterface/GetGroups (group-tree detail page; body { show: { id } })
POST /api/group/getjobs	job.GroupInterface/GetJobs (a group’s jobs; body { group: { id } })
POST /api/group/action/reparentgroups	job.GroupInterface/ReparentGroups (body { group: { id }, groups: { groups: [...] } })
POST /api/group/action/reparentjobs	job.GroupInterface/ReparentJobs (body { group: { id }, jobs: { jobs: [...] } })

The /api/host/action/* routes validate the request body (400 on malformed JSON or a missing host; addtags / removetags additionally require a tags array), forward through handleRoute, and propagate the gateway’s real HTTP status (a failed RPC returns its 4xx/5xx, not 200).

The /api/show/action/* routes likewise validate their bodies (400 on malformed JSON or a missing/mistyped field: enabled must be boolean, max_cores/min_cores must be numeric, allocation_id a non-empty string) and propagate the real HTTP status. createsubscription maps Cuebot’s duplicate-key error to a short “show already has a subscription on that allocation” message.

---

Configuration Files

next.config.js

Key configuration options:

module.exports = {
  // Enable React strict mode
  reactStrictMode: true,

  // Output standalone build
  output: 'standalone',

  // Image optimization
  images: {
    unoptimized: true
  },

  // Security headers
  async headers() {
    return [
      {
        source: '/(.*)',
        headers: [
          { key: 'X-Frame-Options', value: 'DENY' },
          { key: 'X-Content-Type-Options', value: 'nosniff' }
        ]
      }
    ]
  }
}

Docker Configuration

Default Dockerfile exposes:

Port	Service
3000	CueWeb HTTP

Required volume mounts for log viewing:

# Mount frame log directory
-v /path/to/logs:/tmp/rqd/logs:ro

---

Global Application Header

CueWeb mounts a persistent header at the top of every authenticated route via app/layout.tsx. The header is implemented in components/ui/app-header.tsx and is hidden on /login* routes only.

Layout, left to right:

• OpenCue logo + “CueWeb” wordmark: The logo swaps between public/opencue-icon-black.png and public/opencue-icon-white.png (dark mode). Clicking the logo returns to / (Monitor Jobs).
• File dropdown:
  • Disable Job Interaction - read-only safety toggle (see Disable Job Interaction).
• Cuebot Facility dropdown: one item per configured facility (default local / dev / cloud / external; overridable via NEXT_PUBLIC_CUEBOT_FACILITIES). A small chip on the menu trigger shows the currently-active facility.
• Cuetopia dropdown:
  • Monitor Jobs (/)
• CueCommander dropdown (mirrors the CueGUI Views/Plugins menu):
  • Allocations (/allocations) - implemented; allocations table with cores/hosts stats (see Allocations).
  • Limits (/limits)
  • Monitor Cue (/monitor-cue)
  • Monitor Hosts (/hosts) - implemented; host registry with row actions (lock/unlock, reboot, edit tags) and a per-host detail page (see Monitor Hosts).
  • Redirect (/redirect)
  • Services (/services)
  • Shows (/shows) - implemented; shows stats table with Create Show, Show Properties, and Create Subscription, plus a per-show group-tree detail page at /shows/[showName] (see Shows).
  • Stuck Frame (/stuck-frames)
  • Subscription Graphs (/subscription-graphs)
  • Subscriptions (/subscriptions)

  Routes that have not been implemented yet 404 gracefully.

• Other dropdown:
  • Attributes - toggles the docked Attributes panel (see Attributes Panel).
  • Show Shortcuts - opens the keyboard-shortcuts overlay (same as pressing ?). Dispatches a cueweb:open-shortcuts CustomEvent on window that the KeyboardShortcuts component listens for.
  • Notify on Shortcut - toggle that controls whether every triggered shortcut also fires a small toast naming the action. Default ON. Persisted under localStorage["cueweb.shortcutNotifications"] with cross-tab sync via the storage event plus a cueweb:shortcut-notifications-changed CustomEvent. See Keyboard shortcuts overlay (+ menu access).
• Help dropdown - CueGUI parity:
  • A search input at the top that searches across every menu command in CueWeb via the useMenuRegistry hook (app/utils/use_menu_registry.ts). Matches render as Group > Label.
  • Online User Guide - NEXT_PUBLIC_DOCS_URL (default https://www.opencue.io/docs/).
  • Make a Suggestion - NEXT_PUBLIC_SUGGESTIONS_URL (default https://github.com/AcademySoftwareFoundation/OpenCue/issues/new?labels=enhancement&template=enhancement.md).
  • Report a Bug - NEXT_PUBLIC_BUGS_URL (default https://github.com/AcademySoftwareFoundation/OpenCue/issues/new?labels=bug&template=bug_report.md).
• Theme toggle: Switches between light and dark mode (see Theming below).
• Sign out: Always rendered. With a session, signOut() clears it and redirects to /login; without a session, the click just navigates to /login. When a session is present, the session’s name or email is shown to the left of the button (truncated, hidden on mobile).

The /login page handles both auth configurations:

• NEXT_PUBLIC_AUTH_PROVIDER= (empty) renders only the CueWeb Home button - useful for sandbox deployments without authentication.
• NEXT_PUBLIC_AUTH_PROVIDER=github,okta,google,ldap (or any subset) renders one sign-in button per configured provider.

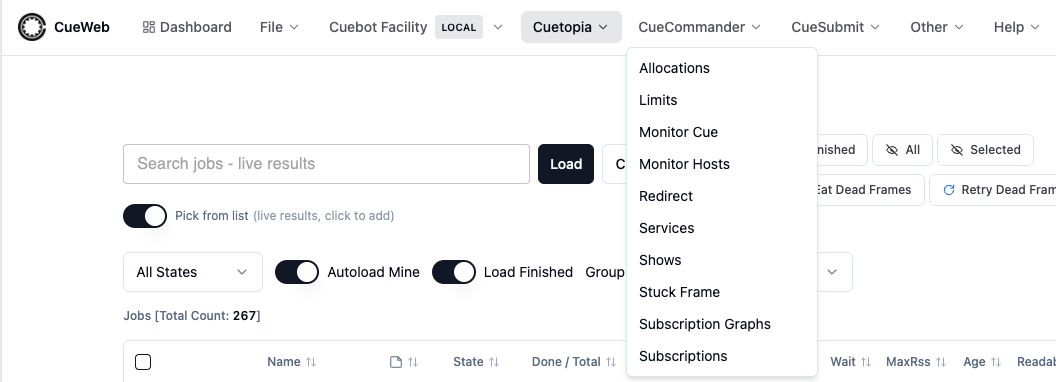

The header dropdown menus:

The bottom status bar:

---

Left Sidebar

CueWeb also mounts a collapsible sidebar to the left of the content area. Implemented in components/ui/app-sidebar.tsx and hidden on /login* and on viewports smaller than the md breakpoint.

• Same six groups as the header (File, Cuebot Facility, Cuetopia, CueCommander, Other, Help), organized as accordion sections built on the Collapsible primitive.
• The group containing the currently-active route auto-expands on navigation.
• A Collapse button at the bottom toggles between expanded (w-60) and icon-only (w-16).
• The Other group mirrors the header’s Other menu and ships three controls in both expanded and collapsed modes:
  • Attributes (toggle, with check icon when the panel is open).
  • Show Shortcuts (opens the keyboard-shortcuts overlay; same as pressing ? or the header’s Other ▸ Show Shortcuts item).
  • Notify on Shortcut (toggle, with check icon when on; controls the per-shortcut toast).
• Persisted state:
  • cueweb.sidebar.collapsed - overall expanded vs icon-only.
  • cueweb.sidebar.openGroups - per-group open/closed map.

---

Mobile Navigation

On phone-sized viewports the desktop sidebar is hidden entirely. A hamburger button appears on the LEFT of the global header instead; tapping it opens a side drawer mirroring every sidebar group.

Aspect	Description
Trigger	Tap the hamburger button in the global header.
Groups	Dashboard, File (Disable Job Interaction), Cuebot Facility, Cuetopia, CueCommander, Other (Attributes / Show Shortcuts / Notify on Shortcut), Help.
Scrolling	The drawer itself scrolls when the menu list is taller than the viewport.
Auto-close	Tapping any navigation link closes the drawer automatically.
Hidden on	/login*.

The drawer toggles share state with the desktop sidebar - flipping Attributes or Disable Job Interaction in the drawer is reflected in the desktop sidebar when the viewport is widened again.

Per-row Actions button

To replace right-click on touch devices, every Jobs / Layers / Frames row has a small ⋮ Actions button as its leftmost cell. Tapping it opens the row’s full context menu - the same action set you’d get from desktop right-click, including Copy Job / Layer / Frame Name, View Log, View Log on <editor>, Pause / Kill / Eat / Retry, etc. The column is always visible (it can’t be hidden through the Columns dropdown).

Responsive Jobs page

Adaptation	What changes on small screens
Search column + action toolbar	Stack vertically on small viewports instead of sitting side-by-side.
Monitor Jobs toolbar groups	Unmonitor and Job Actions groups stack with each label taking its own line above its buttons. The vertical divider between groups is hidden.
Data table containers	Horizontally swipeable so the wide grids can be navigated without forcing page-level scroll.
Shortcuts overlay	Caps its width and height so the dialog never bleeds past the viewport, and scrolls internally if the contents overflow.

LAN access

By default the client builds same-origin relative URLs for every API call, so the same image works whether the browser reaches it at localhost on the dev machine or at a LAN IP from a phone on the same network. The build-time NEXT_PUBLIC_URL env var defaults to an empty string for this reason.

Caveat	Workaround
The modern browser clipboard API is restricted to secure contexts (HTTPS / localhost). On plain-HTTP LAN access it’s either unavailable or rejected.	CueWeb automatically falls back to a legacy copy path outside secure contexts, including iOS Safari. Copy Job Name / Copy Layer Name / Copy Frame Name / Copy Log Path still work.
Desktop notification popups also require a secure context. Subscribe to Job still works on LAN HTTP - the in-app toast always fires - but the optional OS-level notification banner is skipped.	Serve CueWeb over HTTPS (self-signed cert is enough for LAN testing) to enable the desktop popup.

---

Disable Job Interaction (safety mode)

Header File ▸ Disable Job Interaction (and the sidebar’s File group) toggle a single global flag persisted under localStorage["cueweb.safety.disable-job-interaction"]. The useDisableJobInteraction hook (app/utils/use_disable_job_interaction.ts) keeps every consumer in sync via a cueweb:disable-job-interaction-changed CustomEvent (same tab) and the browser’s storage event (cross-tab).

When the flag is on:

• A ReadOnlyBanner (components/ui/read-only-banner.tsx) renders an amber strip just under the header with a Re-enable button.
• The jobs toolbar action buttons (Eat Dead Frames, Retry Dead Frames, Pause, Unpause, Kill) disable themselves visually and ignore clicks. Unmonitor is non-destructive and remains active.
• The right-click context menus on job, layer, and frame rows dim every destructive item (Pause / Unpause / Retry / Retry Dead Frames / Eat / Eat Dead Frames / Kill). The Pause/Unpause entry is a single toggle whose label flips on isPaused - both flavors are dimmed the same way. Unmonitor and Comments on the job menu remain active.

---

Attributes Panel

Other ▸ Attributes (header or sidebar) toggles a docked drawer implemented in components/ui/attributes-panel.tsx.

• Selection: clicking any row in the jobs table fires setAttributeSelection({...}) from app/utils/use_attribute_selection.ts. The panel listens via the useAttributeSelection hook and re-renders for the new entity.
• Position: a dock-position picker in the title bar lets users place the panel on the right (default), bottom, left, or top of the viewport. Persisted under cueweb.attributes.position.
• Open state: persisted under cueweb.attributes.open (and synced across consumers via cueweb:attributes-panel-changed).
• Filter input: narrows the key/value tree live; parent groups stay visible whenever any descendant matches.

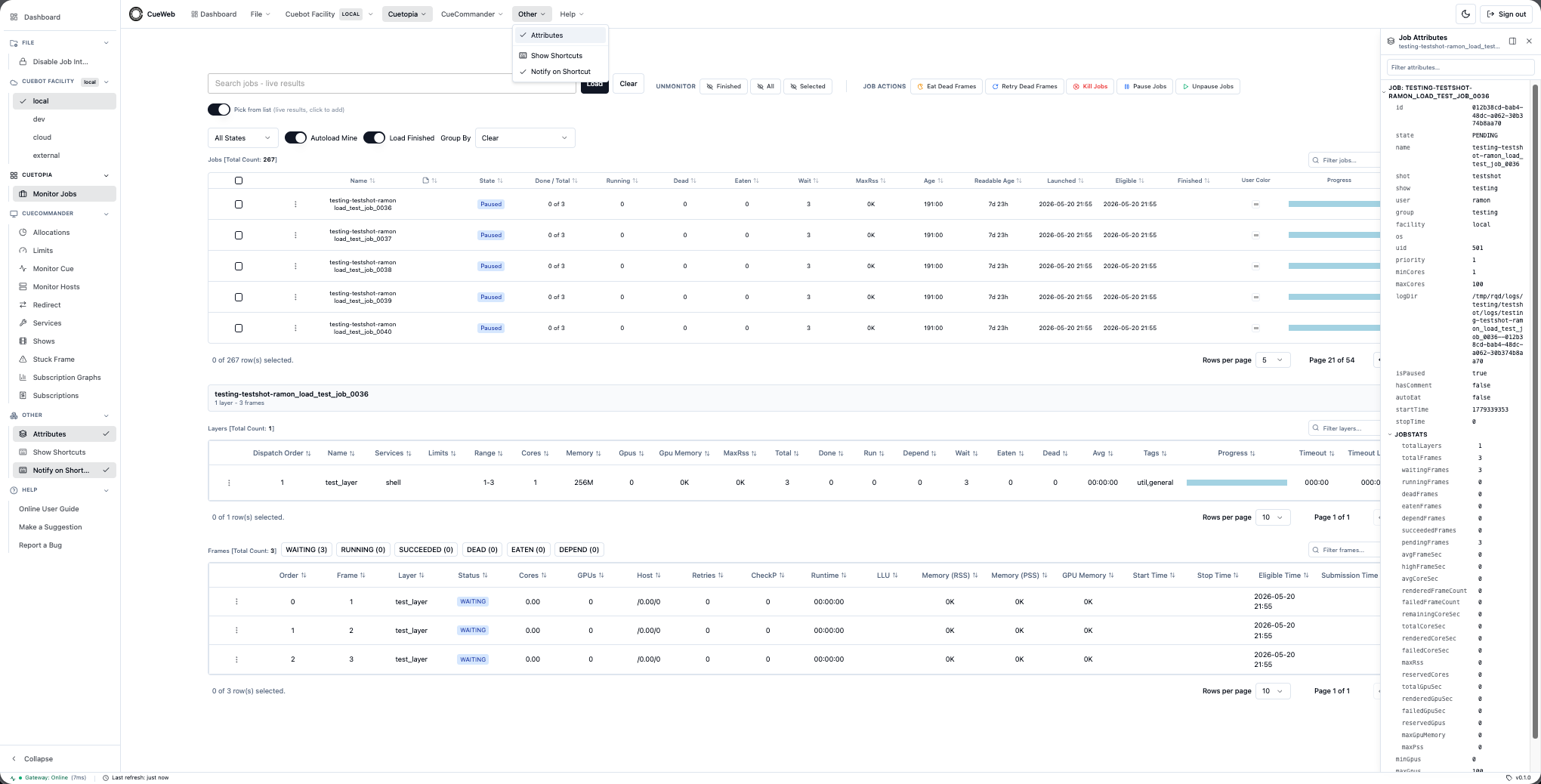

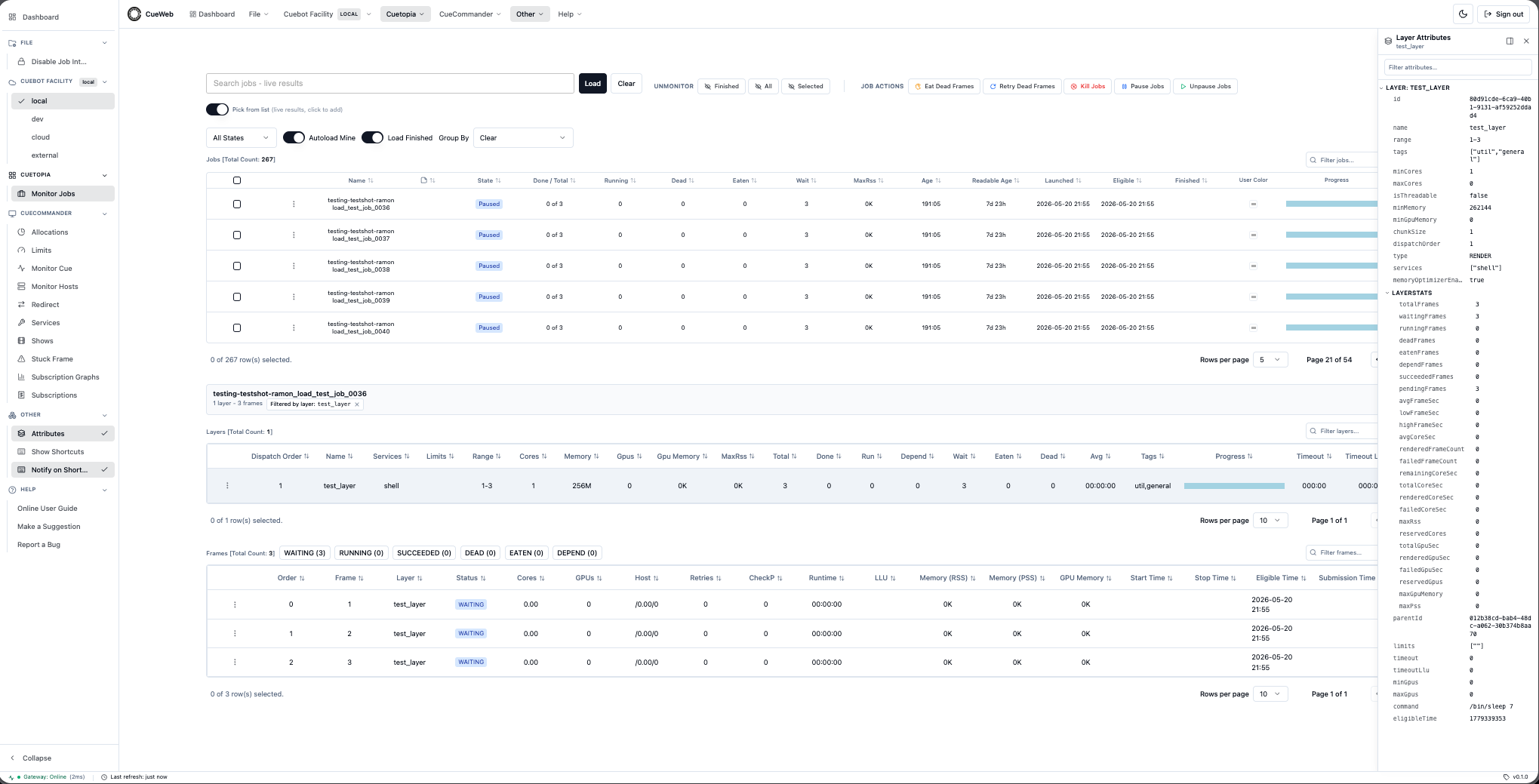

The Attributes panel for a selected job and for a selected layer:

The panel docked on each edge of the viewport - right, bottom, left, and top:

---

Breadcrumbs

Reusable primitive at components/ui/breadcrumbs.tsx, accepting Array<{ label, href?, title? }>. Renders a Home icon segment (/) by default, separates segments with ChevronRight, and gives the last segment aria-current="page". Labels are wrapped in a Radix Tooltip with max-w-[40ch] truncate, so over-long names collapse with an ellipsis and the full text is recoverable on hover.

Currently mounted on every detail view (non-last segments are next/links; segments without an href render as plain text):

• /frames/[frame-name] -> Home > Jobs > <jobName> > <layerName> > <frameName>
  • The job name is parsed from the frameLogDir query parameter (RQD logs are named <jobName>.<frameName>.rqlog).
  • The layer name and frame name come from the loaded Frame payload, falling back to the route param while the fetch is pending.
• /jobs/[job-name]/comments -> Home > Jobs > <jobName> > Comments

Per-job and per-layer detail pages do not exist yet, so those segments currently render as plain text; once those routes land they can be upgraded to clickable links by setting the href field on the corresponding BreadcrumbItem.

---

Status Bar

CueWeb mounts an IDE-style fixed status bar at the bottom of every authenticated route. Implemented in components/ui/status-bar.tsx and hidden on /login*. Three metrics, each with a tooltip:

• Gateway (left): a colored dot, the literal Online / Offline, and the last round-trip latency in milliseconds when online.
  • Polled every 10s by fetch('/api/health'). The probe POSTs {} to show.ShowInterface/GetActiveShows with a 5s AbortController timeout and reports { gatewayOnline, status, latencyMs, checkedAt, error? }.
  • When the gateway is unreachable, the whole bar’s surface turns red so the failure is visible at a glance.
• Last refresh (center): live relative timestamp (“just now”, “Ns ago”, …). Updated whenever the jobs table fires a cueweb:jobs-refreshed CustomEvent (every 5s while the table is mounted). Re-renders once per second so the timestamp stays accurate between events.
• Version (right): v<NEXT_PUBLIC_APP_VERSION>. Resolved at build time in next.config.js:
  1. If NEXT_PUBLIC_APP_VERSION is set, that value wins.
  2. Otherwise it falls back to the version field in cueweb/package.json.
     • The Dockerfile exposes a matching ARG NEXT_PUBLIC_APP_VERSION, so CI can pass a Git SHA or build tag via --build-arg.

GET /api/health

Cheap reachability check used by the status bar. Returns a 200 with the following body in both the healthy and unhealthy cases (so the UI can render the offline state without surfacing a network-tab error):

{
  "gatewayOnline": true,
  "status": 200,
  "latencyMs": 30,
  "checkedAt": "2026-05-20T07:58:51.098Z"
}

When gatewayOnline is false, the response additionally includes an error field with a short human-readable hint.

---

Theming

Theme Toggle

CueWeb supports light and dark themes:

• Light Mode: Default theme with light backgrounds
• Dark Mode: Dark theme for reduced eye strain

Toggle via the sun/moon button in the global header (or press t). The choice persists across sessions. Every view has a dark equivalent; for example, the Monitor Jobs page in dark mode:

CSS Variables

Key theme variables (defined in Tailwind config):

/* Light theme */
--background: 0 0% 100%;
--foreground: 222.2 84% 4.9%;

/* Dark theme */
--background: 222.2 84% 4.9%;
--foreground: 210 40% 98%;

---

Performance Optimization

Auto-refresh

• Default refresh interval: 5 seconds
• Tables auto-update without full page reload
• Configurable per-table refresh rates

Virtualization

• Large job lists use virtual scrolling
• Only visible rows are rendered
• Improves performance with 1000+ jobs

Web Workers

• Filtering operations run in background threads
• Main thread remains responsive during searches
• Reduces UI blocking

---

Troubleshooting

Common Issues

“Failed to fetch jobs”

Cause: Cannot connect to REST Gateway

Solution:

1. Verify REST Gateway is running
2. Check NEXT_PUBLIC_OPENCUE_ENDPOINT is correct
3. Verify network connectivity
4. Check browser console for CORS errors

Authentication Loop

Cause: OAuth configuration mismatch

Solution:

1. Verify NEXTAUTH_URL matches actual URL
2. Check OAuth provider callback URLs
3. Ensure NEXTAUTH_SECRET is set

JWT Token Errors

Cause: Secret mismatch between CueWeb and REST Gateway

Solution:

1. Ensure NEXT_JWT_SECRET matches REST Gateway’s JWT_SECRET
2. Check token expiration settings

Blank Page on Load

Cause: Build-time environment variables not set

Solution:

1. Rebuild with correct environment variables
2. Check NEXT_PUBLIC_* variables are set during build

Debug Mode

Enable verbose logging:

# Set in environment
DEBUG=cueweb:* npm run dev

Browser Console

Check browser developer tools for:

• Network request failures
• JavaScript errors
• WebSocket connection issues

---

File Structure

cueweb/
├── app/                              # Next.js app directory
│   ├── api/                          # API proxy routes
│   │   ├── comment/action/save/      # CommentInterface/Save
│   │   ├── comment/action/delete/    # CommentInterface/Delete
│   │   └── job/
│   │       ├── action/addcomment/    # JobInterface/AddComment
│   │       └── getcomments/          # JobInterface/GetComments
│   ├── jobs/                         # Jobs pages
│   │   └── [job-name]/comments/      # Per-job Comments page
│   ├── utils/                        # Client helpers
│   │   ├── action_utils.ts           # add/save/delete comment helpers
│   │   ├── get_utils.ts              # getJobComments
│   │   └── comment_macros.ts         # Predefined-macro localStorage CRUD
│   ├── login/                        # Login page
│   └── page.tsx                      # Main page
├── components/                       # React components
│   └── ui/                           # Shadcn UI components
├── lib/                              # Utility libraries
│   └── auth.ts                       # Authentication config
├── public/                           # Static assets
├── Dockerfile                        # Container configuration
├── next.config.js                    # Next.js configuration
├── package.json                      # Dependencies (incl. react-markdown, rehype-sanitize)
└── tailwind.config.js                # Tailwind CSS config

---

Related Documentation

• CueWeb Quick Start - Getting started guide
• CueWeb User Guide - Complete usage guide
• CueWeb Tutorial - Step-by-step tutorial
• CueWeb Developer Guide - Development reference
• REST API Reference - API documentation
• Deploying CueWeb - Deployment guide
