Airflow Watcher 👁️

An Airflow plugin and standalone REST API for monitoring DAG failures, SLA misses, task health, and scheduling delays — with built-in alerting via Slack, Email, and PagerDuty.

Airflow Watcher ships two independent components that share the same monitors, notifiers, metrics layer, and pluggable backend system:

Component	Runs in	Auth	Use case
Plugin	Airflow webserver process	Airflow session cookies + FAB RBAC	UI dashboards, internal API at `/api/watcher`
Standalone API	Separate FastAPI process	Bearer token + per-key RBAC	External integrations, CI/CD, dashboards, automation

Both components support three data backends controlled by a single env var:

`AIRFLOW_WATCHER_BACKEND`	Data source
`airflow` (default)	Airflow metadata DB (Postgres / MySQL / SQLite via Airflow ORM)
`bigquery`	External BigQuery table (e.g. dbt callback results)
`sqlalchemy`	Any SQLAlchemy-compatible DB with a flat results table

Features

Plugin Features

📊 Dashboard View — 7 custom Airflow UI pages for monitoring
🔒 Airflow RBAC — DAG-level filtering via Airflow's FAB security manager
🔌 Zero Config — Auto-registers via Airflow's plugin entry point
📡 Internal REST API — /api/watcher/* endpoints on the webserver

API Features

🚀 Standalone FastAPI — Runs outside the Airflow webserver
🔑 Bearer Token Auth — Constant-time token validation with key rotation
🗂️ Per-Key RBAC — Map API keys to specific DAGs
📄 Swagger UI — Interactive docs at /docs
⚡ Response Caching — Thread-safe TTL cache (default 60s)
🚦 Rate Limiting — Per-IP sliding window (default 120 req/min, returns 429 with Retry-After)
📋 Structured Logging — JSON log format with request IDs (AIRFLOW_WATCHER_LOG_FORMAT=json)
/healthz Liveness Probe — No auth required, checks DB connectivity

Shared Features

🚨 DAG Failure Monitoring — Real-time tracking of DAG and task failures
⏰ SLA Miss Detection — Alerts when DAGs miss their SLA deadlines
📈 Trend Analysis — Historical failure and SLA miss trends
🔔 Multi-channel Notifications — Slack, Email, and PagerDuty alerts
📡 Metrics Export — StatsD/Datadog and Prometheus support
⚙️ Flexible Alert Rules — Pre-defined templates or custom rules

Airflow Version Compatibility

Airflow Version	Status
2.7.x – 2.10.x	Fully supported — tested in CI
2.5.x – 2.6.x	Should work, not actively tested
3.x	Not yet supported — the `<3.0` pin in `pyproject.toml` is intentional. Airflow 3.0 removes `airflow.models.SlaMiss` (used by `SLAMonitor`) and changes the metadata DB schema. A compatibility release is planned; track progress in the issue tracker.

Installation

📖 See INSTALL.md for detailed installation and configuration instructions.

Alerting & Monitoring

📖 See ALERTING.md for complete alerting configuration:

Slack — Rich notifications with blocks
Email — SMTP-based alerts
PagerDuty — Incident management with deduplication
StatsD/Datadog — Real-time metrics
Prometheus — /metrics endpoint for scraping

Quick Alerting Setup

# Slack alerts
export AIRFLOW_WATCHER_SLACK_WEBHOOK_URL="https://hooks.slack.com/..."

# PagerDuty (optional)
export AIRFLOW_WATCHER_PAGERDUTY_ROUTING_KEY="your-key"

# Choose alert template
export AIRFLOW_WATCHER_ALERT_TEMPLATE="production_balanced"

Plugin (Airflow UI)

The plugin runs inside the Airflow webserver process. Once installed, it auto-registers with Airflow, adds a "Watcher" menu to the UI, and exposes REST endpoints at /api/watcher/*.

By default the plugin reads from Airflow's own metadata DB — no extra configuration needed. Set AIRFLOW_WATCHER_BACKEND=bigquery (or sqlalchemy) in your Airflow environment to switch every plugin endpoint to an external data source instead.

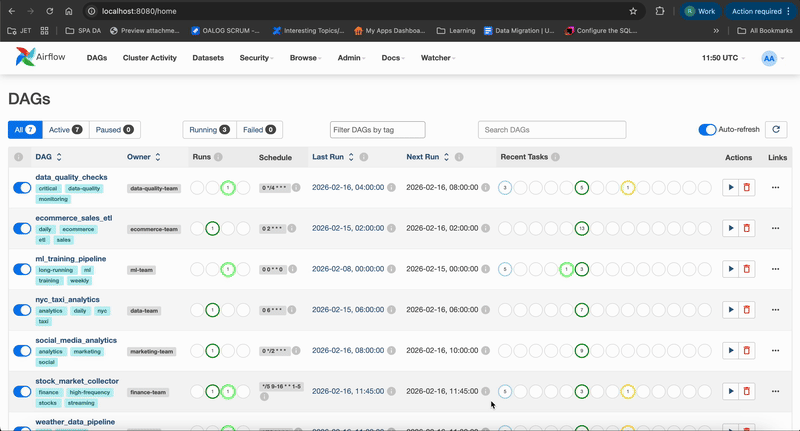

Demo

Plugin Architecture

+--------------------------------------------------------------+
|                   Airflow Webserver                          |
|                                                              |
|  +--------------------------------------------------------+  |
|  |              Airflow Watcher Plugin                    |  |
|  |                                                        |  |
|  |  +-------------+     +------------------------------+  |  |
|  |  | Flask Views  |    |     monitor_provider         |  |  |
|  |  | (Dashboard)  |<---|  routes based on BACKEND env |  |  |
|  |  |              |    +----------+-------------------+  |  |
|  |  | REST API     |              |                       |  |
|  |  | /api/watcher |    +---------+----------+            |  |
|  |  +-------------+     |         |          |            |  |
|  |                       ▼         ▼          ▼            |  |
|  |              +--------+  +------+--+  +--------+       |  |
|  |              | Airflow|  |BigQuery |  |  SQL   |       |  |
|  |              |  ORM   |  | Client  |  | Client |       |  |
|  |              |(default|  |(BQ table|  |(any DB)|       |  |
|  |              +---+----+  +----+----+  +---+----+       |  |
|  |                  |            |           |             |  |
|  +------------------+-----------+-----------+-------------+  |
|                     |           |           |                 |
|          +----------+     +-----+   +-------+                 |
|          ▼                ▼         ▼                         |
|  +--------------+  +----------+  +----------+                 |
|  | Airflow DB   |  | BigQuery |  | Postgres |                 |
|  | (meta DB)    |  |  Table   |  | MySQL    |                 |
|  +--------------+  +----------+  | SQLite   |                 |
|                                  +----------+                 |
+--------------------------------------------------------------+

UI Views

Once installed, navigate to Watcher in the Airflow UI navigation to access:

Menu Item	Description
Airflow Dashboard	Overview metrics
Airflow Health	DAG health status (success/failed/delayed/stale)
DAG Scheduling	Queue and pool utilization
DAG Failures	Recent failures with details
SLA Tracker	SLA misses and delays
Task Health	Long-running and zombie tasks
Dependencies	Cross-DAG dependency tracking

Plugin RBAC

The plugin integrates with Airflow's built-in FAB security manager to enforce DAG-level access control. No separate configuration is needed — it reads directly from Airflow's role and permission system.

How It Works

Admin / Op roles see all DAGs across every Watcher page and API endpoint
Custom roles only see DAGs they have can_read permission on
Filtering is mandatory and applied server-side — restricted users cannot bypass it
Aggregate stats (failure counts, SLA misses, health scores) are recomputed per-user so no global data leaks
A 🔒 badge appears in the filter bar for non-admin users

Setting Up DAG-Level Permissions

Add access_control to your DAG definitions to grant team-specific access:

from airflow import DAG

dag = DAG(
    dag_id="weather_data_pipeline",
    schedule_interval="@hourly",
    access_control={
        "team_weather": {"can_read", "can_edit"},
    },
)

Then create matching roles in Airflow (Admin → Security → List Roles) and assign users to them. The Watcher plugin will automatically pick up the permissions.

What Gets Filtered

Area	Filtering
Dashboard stats	Failure count, SLA misses, health score — all scoped to user's DAGs
Failures page	Only failures from accessible DAGs
SLA page	Only SLA misses from accessible DAGs
Health page	Health status, stale DAGs, scheduling lag — filtered
Task health	Long-running tasks, zombies, retries — filtered
Scheduling	Concurrent runs, delayed DAGs — filtered
Dependencies	Cross-DAG deps, correlations — filtered
All `/api/watcher` endpoints	Same RBAC enforcement as UI pages

RBAC Demo

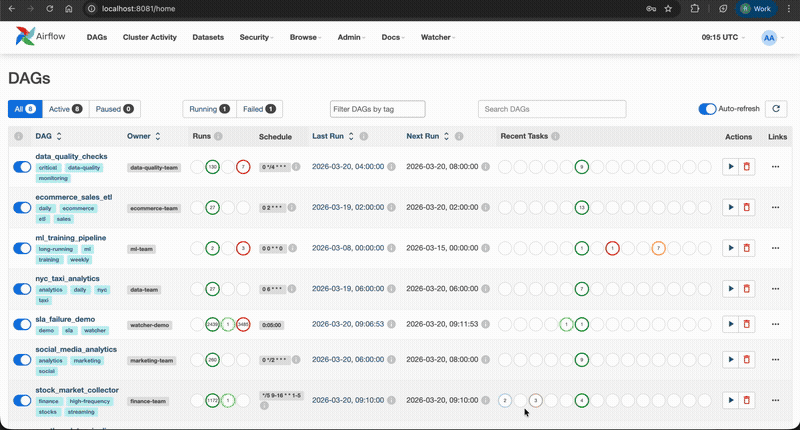

Admin — sees all DAGs:

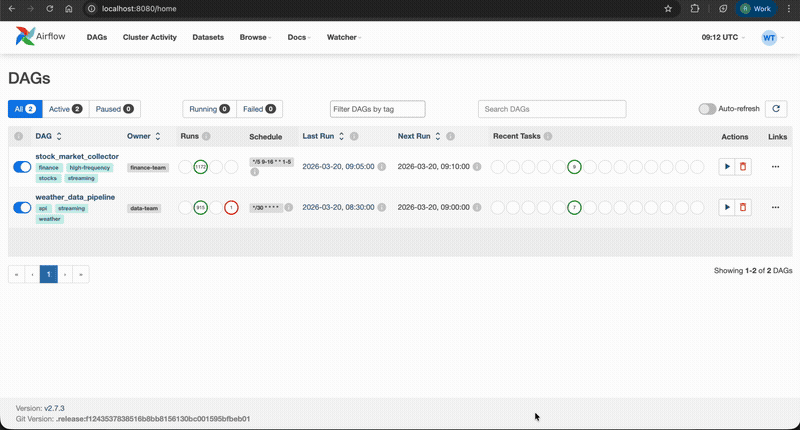

Weather user — sees only weather & stock DAGs:

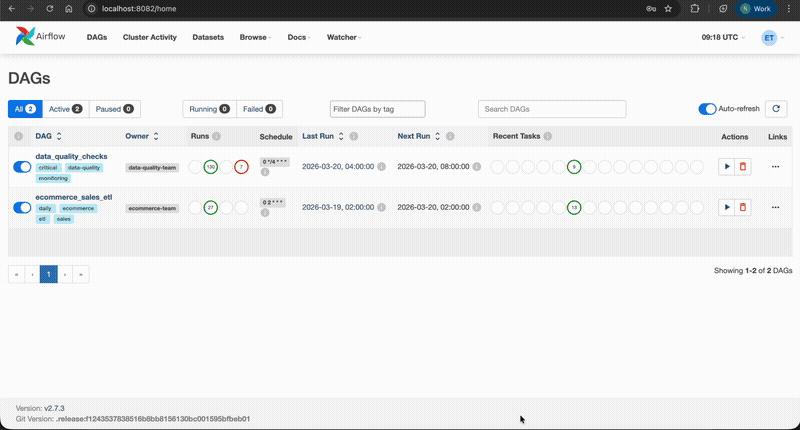

Ecommerce user — sees only ecommerce & data quality DAGs:

Plugin API Endpoints — `/api/watcher`

The plugin exposes a REST API at /api/watcher/* on the Airflow webserver. Authentication uses Airflow's session cookies (same login as the UI). All endpoints return JSON with a standard {status, data, timestamp} envelope.

Failures

Method	Path	Params	Description
GET	`/api/watcher/failures`	`dag_id`, `hours`, `limit`	Recent DAG failures
GET	`/api/watcher/failures/stats`	`hours`	Failure rate statistics

SLA

Method	Path	Params	Description
GET	`/api/watcher/sla/misses`	`dag_id`, `hours`, `limit`	SLA miss events
GET	`/api/watcher/sla/stats`	`hours`	SLA miss statistics

Health

Method	Path	Params	Description
GET	`/api/watcher/health`	—	System health summary (200 healthy, 503 degraded)
GET	`/api/watcher/health/<dag_id>`	—	Health for a specific DAG

Tasks

Method	Path	Params	Description
GET	`/api/watcher/tasks/long-running`	`threshold_minutes`	Tasks exceeding duration threshold
GET	`/api/watcher/tasks/retries`	`hours`, `min_retries`	Tasks with excessive retries
GET	`/api/watcher/tasks/zombies`	`threshold_minutes`	Potential zombie tasks
GET	`/api/watcher/tasks/failure-patterns`	`hours`	Task failure pattern analysis

Scheduling

Method	Path	Params	Description
GET	`/api/watcher/scheduling/lag`	`hours`, `threshold_minutes`	Scheduling delay percentiles
GET	`/api/watcher/scheduling/queue`	—	Current queue status
GET	`/api/watcher/scheduling/pools`	—	Pool utilization
GET	`/api/watcher/scheduling/stale-dags`	`expected_interval_hours`	DAGs not running on schedule
GET	`/api/watcher/scheduling/concurrent`	—	DAGs with multiple concurrent runs

DAGs

Method	Path	Params	Description
GET	`/api/watcher/dags/import-errors`	—	DAG import errors
GET	`/api/watcher/dags/status-summary`	—	DAG status summary with health score
GET	`/api/watcher/dags/complexity`	—	DAG complexity analysis
GET	`/api/watcher/dags/inactive`	`days`	Inactive DAGs

Dependencies

Method	Path	Params	Description
GET	`/api/watcher/dependencies/upstream-failures`	`hours`	Upstream failure cascade analysis
GET	`/api/watcher/dependencies/cross-dag`	—	Cross-DAG dependencies
GET	`/api/watcher/dependencies/correlations`	`hours`	Failure correlations
GET	`/api/watcher/dependencies/impact/<dag_id>/<task_id>`	—	Downstream impact analysis

Overview

Method	Path	Params	Description
GET	`/api/watcher/overview`	—	Combined overview of all monitoring data

Demo Environment

To test the plugin locally with sample DAGs and pre-configured RBAC users:

cd demo
docker-compose up -d

Then visit http://localhost:8080 and navigate to the Watcher menu.

User	Password	Role	Visible DAGs
`admin`	`admin`	Admin	All 8 DAGs
`weather_user`	`weather123`	team_weather	weather_data_pipeline, stock_market_collector
`ecommerce_user`	`ecommerce123`	team_ecommerce	ecommerce_sales_etl, data_quality_checks

See demo/README.md for more details.

Plugin Backend Configuration

By default the plugin reads from Airflow's metadata DB. Set AIRFLOW_WATCHER_BACKEND in the Airflow webserver environment to switch to an external source — no code changes, no redeploy of the plugin itself.

BigQuery backend

# In docker-compose.yml, airflow.cfg, or MWAA/Composer env vars:
AIRFLOW_WATCHER_BACKEND=bigquery
AIRFLOW_WATCHER_BQ_TABLE=project.dataset.table
# Optional: override column names if your table differs from the dbt-callback default
# AIRFLOW_WATCHER_SCHEMA_JSON='{"col_dag_id":"pipeline_id","col_elapsed_time":"duration_seconds"}'

Authentication uses Application Default Credentials (Workload Identity on GKE/Composer, service account key otherwise).

SQLAlchemy backend

AIRFLOW_WATCHER_BACKEND=sqlalchemy
AIRFLOW_WATCHER_BQ_TABLE=my_results_table      # flat table name (no project/dataset prefix)
AIRFLOW_WATCHER_EXTERNAL_DB_URI=postgresql://user:pass@host/db
# Optional column overrides:
# AIRFLOW_WATCHER_SCHEMA_JSON='{"col_dag_id":"pipeline_id"}'

Feature availability per backend

See the Feature matrix in the BigQuery Backend section below. The same matrix applies when the backends are used via the plugin.

Standalone API (FastAPI)

A lightweight, standalone REST API that runs outside the Airflow webserver. Use this when you want to call monitoring endpoints from external services, dashboards, or CI/CD pipelines without adding load to the Airflow webserver.

📖 Interactive API Docs (Swagger UI) — browse all 28 endpoints without running the server.

API Architecture

                                 ┌─────────────────┐
                                 │  External Client │
                                 │  (curl / app)    │
                                 └────────┬─────────┘
                                          │
                              Authorization: Bearer <key>
                                          │
                                          ▼
┌─────────────────────────────────────────────────────────────────┐
│                    Standalone FastAPI Service                   │
│                    http://localhost:8081                        │
│                                                                 │
│  ┌──────────┐   ┌──────────┐   ┌──────────┐   ┌────────────┐    │
│  │  Auth    │──▶│  RBAC    │──▶│  Cache   │──▶│  Monitors  │    │
│  │(Bearer)  │   │(dag map) │   │ (TTL 60s)│   │  (6 core)  │    │
│  └──────────┘   └──────────┘   └──────────┘   └──────┬─────┘    │
│                                                       │         │
│  ┌──────────────────────────────────────────────────┐ │         │
│  │              API Routers (11)                     │ │        │
│  │  /failures /sla /tasks /scheduling /dags          │◀┘        │
│  │  /dependencies /overview /health /alerts          │          │
│  │  /cache /metrics                                  │          │
│  └──────────────────────────────────────────────────┘           │
│                         │                                       │
│  ┌──────────────┐  ┌────▼──────┐  ┌─────────────────────────┐   │
│  │  Notifiers   │  │  Envelope │  │  Emitters               │   │
│  │  Slack/Email │  │  {status, │  │  StatsD / Prometheus    │   │
│  │  PagerDuty   │  │   data}   │  │  /metrics               │   │
│  └──────────────┘  └───────────┘  └─────────────────────────┘   │
└──────────────────────────┬──────────────────────────────────────┘
                           │
                           ▼
               ┌───────────────────────┐
               │  Airflow Metadata DB  │
               │  (PostgreSQL / MySQL) │
               └───────────────────────┘

Quick Start

📖 See INSTALL.md — API Quick Start for setup instructions.

# 1. Install standalone extras
pip install -e ".[standalone]"

# 2. Create .env file (already gitignored)
cat > .env << 'EOF'
AIRFLOW_WATCHER_DB_URI=postgresql://airflow:airflow@localhost:5432/airflow
AIRFLOW_WATCHER_API_KEYS=your-secret-api-key-here
EOF

# 3. Start the server
python src/airflow_watcher/api/main.py
# → Uvicorn running on http://0.0.0.0:8081

# 4. Test it
curl -H "Authorization: Bearer your-secret-api-key-here" \
     http://localhost:8081/api/v1/health/

Interactive API Docs

📖 Browse the full API spec online: Airflow Watcher API Docs (Swagger UI — no server required)

When running locally, the same docs are available at http://localhost:8081/docs.

Authentication & Configuration

📖 See INSTALL.md for full authentication, configuration, and RBAC setup.

Key environment variables:

Variable	Default	Description
`AIRFLOW_WATCHER_DB_URI`	(required for `airflow` backend)	Airflow metadata DB connection string
`AIRFLOW_WATCHER_API_KEYS`	(none)	Comma-separated Bearer tokens; omit to disable auth
`AIRFLOW_WATCHER_BACKEND`	`airflow`	Data source: `airflow` (metadata DB), `bigquery`, or `sqlalchemy`
`AIRFLOW_WATCHER_BQ_TABLE`	(none)	Required for `bigquery`/`sqlalchemy` — table name (`project.dataset.table` for BQ, plain table name for SQL)
`AIRFLOW_WATCHER_EXTERNAL_DB_URI`	(none)	Required for `sqlalchemy` backend — SQLAlchemy connection string
`AIRFLOW_WATCHER_SCHEMA_JSON`	(none)	JSON object overriding column names for external backends
`AIRFLOW_WATCHER_RBAC_ENABLED`	`false`	Enable per-key DAG filtering
`AIRFLOW_WATCHER_CACHE_TTL`	`60`	Response cache TTL in seconds

See the BigQuery Backend section for BQ-specific setup.

API Endpoints

All endpoints return a standard JSON envelope:

{
  "status": "success",
  "data": { ... },
  "timestamp": "2026-03-27T12:34:56.789000Z"
}

Failures — `/api/v1/failures`

Method	Path	Params	Description
GET	`/`	`dag_id`, `hours` (1–8760, default 24), `limit` (1–500, default 50), `offset` (default 0)	Recent DAG failures
GET	`/stats`	`hours` (1–8760, default 24)	Failure rate statistics

SLA — `/api/v1/sla`

Method	Path	Params	Description
GET	`/misses`	`dag_id`, `hours` (1–8760, default 24), `limit` (1–500, default 50), `offset` (default 0)	SLA miss events
GET	`/stats`	`hours` (1–8760, default 24)	SLA miss statistics

Tasks — `/api/v1/tasks`

Method	Path	Params	Description
GET	`/long-running`	`threshold_minutes` (1–10080, default 60)	Tasks exceeding duration threshold
GET	`/retries`	`hours` (1–8760, default 24), `min_retries` (1–100, default 2)	Tasks with excessive retries
GET	`/zombies`	`threshold_minutes` (1–10080, default 120)	Potential zombie tasks
GET	`/failure-patterns`	`hours` (1–8760, default 168)	Task failure pattern analysis

Scheduling — `/api/v1/scheduling`

Method	Path	Params	Description
GET	`/lag`	`hours` (1–8760, default 24), `threshold_minutes` (1–10080, default 10)	Scheduling delay percentiles
GET	`/queue`	—	Current queue status
GET	`/pools`	—	Pool utilization
GET	`/stale-dags`	`expected_interval_hours` (1–720, default 24)	DAGs not running on schedule
GET	`/concurrent`	—	DAGs with multiple concurrent runs

DAGs — `/api/v1/dags`

Method	Path	Params	Description
GET	`/import-errors`	—	DAG import/parse errors
GET	`/status-summary`	—	Overall DAG counts and health score
GET	`/complexity`	—	DAGs ranked by task count
GET	`/inactive`	`days` (1–365, default 30)	Active DAGs with no recent runs

Dependencies — `/api/v1/dependencies`

Method	Path	Params	Description
GET	`/upstream-failures`	`hours` (1–8760, default 24)	Tasks in upstream_failed state
GET	`/cross-dag`	—	Cross-DAG dependency map
GET	`/correlations`	`hours` (1–8760, default 24)	Failure correlations between DAGs
GET	`/impact/{dag_id}/{task_id}`	—	Downstream cascading failure impact

Overview — `/api/v1/overview`

Method	Path	Description
GET	`/`	Combined snapshot of all monitors (cached 60s)

Health — `/api/v1/health`

Method	Path	HTTP Code	Description
GET	`/`	200 if healthy, 503 if degraded	System health (score ≥ 70 & no import errors = healthy)
GET	`/{dag_id}`	200	Per-DAG health with recent failures and SLA misses

Alerts — `/api/v1/alerts`

Method	Path	Description
GET	`/rules`	List all configured alert rules
POST	`/evaluate`	Evaluate rules and dispatch notifications

Cache — `/api/v1/cache`

Method	Path	Description
POST	`/invalidate`	Clear all cached metrics

Metrics — `/metrics` (optional, root level)

Method	Path	Description
GET	`/metrics`	Prometheus exposition format (requires `AIRFLOW_WATCHER_PROMETHEUS_ENABLED=true`)

Infrastructure — `/healthz` (no auth required)

Method	Path	Description
GET	`/healthz`	Liveness probe: `{status: "ok"/"degraded", uptime_seconds, db_connected}`

Example API Responses (click to expand)

GET /api/v1/overview/

{
  "status": "success",
  "data": {
    "failure_stats": {"total_runs": 142, "failed_runs": 3, "failure_rate": 2.11, "unique_failed_dags": 2,
      "most_failing_dags": [{"dag_id": "etl_customers", "failure_count": 2}]},
    "sla_stats": {"total_misses": 1, "top_dags_with_misses": [{"dag_id": "etl_customers", "miss_count": 1}]},
    "long_running_tasks": 0, "zombie_count": 0,
    "queue_status": {"queued_count": 2, "scheduled_count": 5},
    "dag_summary": {"total_dags": 18, "active_dags": 15, "paused_dags": 3, "health_score": 92},
    "import_errors": 0
  },
  "timestamp": "2026-04-10T08:15:32.456000Z"
}

GET /api/v1/health/ — returns HTTP 200 when healthy, 503 when degraded

{
  "status": "success",
  "data": {
    "status": "healthy", "health_score": 92,
    "summary": {"total_dags": 18, "active_dags": 15, "paused_dags": 3, "health_score": 92},
    "dag_health": {"healthy": 15, "degraded": 2, "critical": 1},
    "import_error_count": 0
  },
  "timestamp": "2026-04-10T08:15:33.012000Z"
}

GET /api/v1/failures/?hours=24

{
  "status": "success",
  "data": {
    "failures": [{"dag_id": "etl_customers", "run_id": "scheduled__2026-04-10T06:00:00+00:00",
      "state": "failed", "duration": 153.0,
      "failed_tasks": [{"task_id": "load_to_bq", "operator": "BigQueryInsertJobOperator",
        "try_number": 3, "max_tries": 3, "state": "failed"}]}],
    "count": 1, "filters": {"dag_id": null, "hours": 24}
  },
  "timestamp": "2026-04-10T08:15:34.789000Z"
}

GET /healthz

{"status": "ok", "uptime_seconds": 3612.45, "db_connected": true, "read_db_connected": true}

read_db_connected only appears when a read-replica is configured.

API RBAC, Request Flow & Integration Examples

API RBAC (Role-Based Access Control)

When AIRFLOW_WATCHER_RBAC_ENABLED=true, each API key can only see its mapped DAGs:

export AIRFLOW_WATCHER_RBAC_ENABLED=true
export AIRFLOW_WATCHER_RBAC_KEY_DAG_MAPPING='{"team-a-key": ["weather_pipeline", "stock_collector"], "team-b-key": ["ecommerce_etl"]}'
export AIRFLOW_WATCHER_API_KEYS="team-a-key,team-b-key,admin-key"

Key	Sees
`team-a-key`	Only `weather_pipeline` and `stock_collector`
`team-b-key`	Only `ecommerce_etl`
`admin-key`	Empty results (not in mapping — denied by default)

To grant full access to a key, add it to the mapping with ["*"]:

export AIRFLOW_WATCHER_RBAC_KEY_DAG_MAPPING='{"team-a-key": ["weather_pipeline"], "admin-key": ["*"]}'

Or set AIRFLOW_WATCHER_RBAC_FAIL_OPEN=true to allow unmapped keys to see all DAGs (not recommended for production).

Request Flow

Client Request
  │
  ├─▶ Middleware: adds X-API-Version: 1.0 header
  │
  ├─▶ Auth Dependency: validates Bearer token (constant-time)
  │     └── 401 if invalid/missing
  │
  ├─▶ RBAC Dependency: resolves allowed DAG IDs for this key
  │     └── 403 if DAG not in allowed set
  │
  ├─▶ Cache Layer: check MetricsCache (thread-safe, TTL-based)
  │     ├── HIT  → return cached response
  │     └── MISS → call monitor
  │
  ├─▶ Monitor: queries Airflow metadata DB via SQLAlchemy
  │
  ├─▶ RBAC Filter: strips DAGs the caller isn't allowed to see
  │
  └─▶ Envelope: wraps in {status, data, timestamp} → HTTP 200

Integration Examples

curl:

# Health check (no auth)
curl http://localhost:8081/healthz

# Get failures (with auth)
curl -H "Authorization: Bearer $API_KEY" \
     "http://localhost:8081/api/v1/failures/?hours=24&limit=10"

# Get overview snapshot
curl -H "Authorization: Bearer $API_KEY" \
     http://localhost:8081/api/v1/overview/

# Evaluate and fire alerts
curl -X POST -H "Authorization: Bearer $API_KEY" \
     http://localhost:8081/api/v1/alerts/evaluate

# Clear cache
curl -X POST -H "Authorization: Bearer $API_KEY" \
     http://localhost:8081/api/v1/cache/invalidate

Python:

import requests

API_URL = "http://localhost:8081"
HEADERS = {"Authorization": "Bearer your-secret-key"}

# Get system health
resp = requests.get(f"{API_URL}/api/v1/health/", headers=HEADERS)
health = resp.json()["data"]
print(f"Score: {health['health_score']}, Status: {health['status']}")

# Get recent failures
resp = requests.get(f"{API_URL}/api/v1/failures/", headers=HEADERS,
                    params={"hours": 12, "limit": 20})
for failure in resp.json()["data"]["failures"]:
    print(f"  {failure['dag_id']} failed at {failure['execution_date']}")

# Get scheduling lag
resp = requests.get(f"{API_URL}/api/v1/scheduling/lag", headers=HEADERS)
lag = resp.json()["data"]
print(f"p95 lag: {lag['scheduling_lag']['p95']}s")

JavaScript (fetch):

const API_URL = "http://localhost:8081";
const headers = { Authorization: "Bearer your-secret-key" };

// Get overview
const resp = await fetch(`${API_URL}/api/v1/overview/`, { headers });
const { data } = await resp.json();
console.log(`Failures: ${data.failure_stats.failed_runs}`);
console.log(`Health: ${data.dag_summary.health_score}`);

BigQuery Backend

Airflow Watcher can read dbt run results from BigQuery instead of the Airflow metadata DB. This is useful when:

The Airflow DB is not reachable from the monitoring host
You already ingest dbt callback data into BigQuery (e.g. via the dbt callback plugin)
You want a read-only monitoring API with no DB access

Works in both the plugin and the standalone API — same env vars, same behaviour.

Install

pip install "airflow-watcher[bigquery]"
# or include alongside standalone:
pip install "airflow-watcher[standalone,bigquery]"

Configure

export AIRFLOW_WATCHER_BACKEND=bigquery
export AIRFLOW_WATCHER_BQ_TABLE=project.dataset.table
# DB_URI is NOT required in BigQuery mode
export AIRFLOW_WATCHER_API_KEYS=your-secret-key   # standalone only

Override individual column names when your table schema differs from the dbt-callback default:

export AIRFLOW_WATCHER_SCHEMA_JSON='{"col_dag_id":"pipeline_id","col_elapsed_time":"duration_seconds","col_state":"run_state"}'

Authentication uses Application Default Credentials (gcloud auth application-default login or a service account).

Start

# Standalone API
python src/airflow_watcher/api/main.py

# Plugin — set env vars in your Airflow webserver environment
# (docker-compose.yml, airflow.cfg, MWAA/Composer env vars, etc.)

Feature matrix

Feature	Airflow backend	BigQuery backend
Recent failures	Full (DB)	dbt model errors from BQ
Failure statistics	Full	Full
Scheduling lag	Full	Derived from dbt timing
Long-running tasks	Full	dbt invocation elapsed time
Stale / inactive DAGs	Full	Derived from BQ dag overview
DAG health summary	Full	Derived from BQ dag overview
Failure correlations	Full	Full (co-occurrence in BQ)
Cost analysis (GB billed)	Not available	Full (`adapter_response` metadata)
SLA misses	Full	Not available (`backend_note` returned)
Retry counts	Full	Not available
Zombie tasks	Full	Not available (no heartbeat in BQ)
Worker pool utilization	Full	Not available
Live queue depth	Full	Not available
DAG import errors	Full	Not available
Cross-DAG dependency graph	Full (DagBag)	Not available
Cascading failure impact	Full (DagBag)	Not available

Endpoints backed by unavailable data return empty results with a backend_note field — they do not error.

SQLAlchemy Backend

Read monitoring data from any flat table on a SQLAlchemy-compatible database (PostgreSQL, MySQL, SQLite). Useful when dbt results are written to a relational DB rather than BigQuery.

Works in both the plugin and the standalone API.

Install

pip install "airflow-watcher[standalone]"   # SQLAlchemy is included

Configure

export AIRFLOW_WATCHER_BACKEND=sqlalchemy
export AIRFLOW_WATCHER_EXTERNAL_DB_URI=postgresql://user:pass@host/db
export AIRFLOW_WATCHER_BQ_TABLE=my_results_table   # flat table name
# Optional column overrides:
# export AIRFLOW_WATCHER_SCHEMA_JSON='{"col_dag_id":"pipeline_id"}'
export AIRFLOW_WATCHER_API_KEYS=your-secret-key     # standalone only

The table must be a flat structure (one row per task/model run). Default column names match the dbt-callback schema; override any with AIRFLOW_WATCHER_SCHEMA_JSON.

Feature availability

Same as the BigQuery feature matrix above, minus BigQuery-specific cost fields (bytes_billed, slot_ms). SLA misses, retries, zombies, queue/pool data, and import errors are not available — these live only in Airflow's metadata DB.

Common

Plugin vs API Comparison

Aspect	Plugin (`/api/watcher`)	Standalone API (`/api/v1`)
Process	Inside Airflow webserver	Separate FastAPI process
Auth	Airflow session cookies	Bearer token
RBAC	Airflow FAB roles + `access_control`	Per-key DAG mapping via env var
Install	`pip install airflow-watcher`	`pip install airflow-watcher[standalone]`
Port	Same as Airflow (default 8080)	Separate (default 8081)
UI	7 dashboard pages	Swagger UI at `/docs`
Caching	No built-in cache	TTL-based response cache
Backend support	`airflow` / `bigquery` / `sqlalchemy`	`airflow` / `bigquery` / `sqlalchemy`
Liveness probe	`/api/watcher/health`	`/healthz` (no auth)
Best for	Airflow operators using the UI	External tools, CI/CD, dashboards

Project Structure

airflow-watcher/
├── src/
│   └── airflow_watcher/
│       ├── __init__.py
│       ├── plugins/           # Airflow plugin definitions          ← Plugin
│       ├── views/             # Flask Blueprint views (plugin UI)   ← Plugin
│       ├── templates/         # Jinja2 templates (plugin UI)        ← Plugin
│       ├── api/               # Standalone FastAPI service           ← API
│       │   ├── main.py        # App entry point & create_app()
│       │   ├── auth.py        # Bearer token authentication
│       │   ├── rbac_dep.py    # RBAC dependency (per-key DAG filtering)
│       │   ├── db.py          # SQLAlchemy session management
│       │   ├── envelope.py    # Standard JSON response wrapper
│       │   ├── standalone_config.py  # Env var config loading
│       │   └── routers/       # 11 API routers
│       │       ├── failures.py
│       │       ├── sla.py
│       │       ├── tasks.py
│       │       ├── scheduling.py
│       │       ├── dags.py
│       │       ├── dependencies.py
│       │       ├── overview.py
│       │       ├── health.py
│       │       ├── alerts.py
│       │       ├── cache.py
│       │       └── metrics.py
│       ├── monitors/          # DAG & SLA monitoring logic           ← Shared
│       ├── notifiers/         # Slack, Email, PagerDuty              ← Shared
│       ├── metrics/           # Prometheus, StatsD emitters          ← Shared
│       └── utils/             # Cache, helpers, RBAC utilities       ← Shared
├── tests/
│   ├── test_routers.py        # Router endpoint tests
│   ├── test_auth.py           # Authentication tests
│   ├── test_security.py       # Penetration & security tests
│   ├── test_load.py           # Load & stress tests
│   ├── ...                    # 17 unit test files total
│   └── live/                  # Live integration tests (need Docker)
│       ├── conftest.py        # Auto-skips when containers are down
│       ├── test_qa_deep.py    # Standalone API deep QA (334 tests)
│       ├── test_qa_plugin.py  # Flask plugin API deep QA (138 tests)
│       ├── test_live_comprehensive.py
│       ├── test_live_api.py
│       └── test_live_data.py
├── demo/                      # Local demo Airflow environment
├── .env                       # Local credentials (gitignored)
└── pyproject.toml

Testing

# Unit tests (302 pass)
pytest tests/ --ignore=tests/live -v --no-cov

# Security & penetration tests only
pytest tests/test_security.py -v

# Load & stress tests only
pytest tests/test_load.py -v

# Live integration tests (requires demo Docker environment)
python tests/live/test_qa_deep.py      # Standalone API deep QA (334 tests)
python tests/live/test_qa_plugin.py     # Flask plugin API deep QA (138 tests)
python tests/live/test_live_comprehensive.py  # End-to-end integration

# Skip the pre-existing DB connectivity test
pytest tests/ -k "not test_logs_error_on_unreachable_db"

Infrastructure Integration

📖 See INSTALL.md for full deployment guides:

AWS MWAA — requirements.txt + S3 upload, env var config, MWAA Local Runner testing
Google Cloud Composer — PyPI install via gcloud, Composer 1 vs 2, networking
Kubernetes / Helm — Helm values, K8s secrets, ServiceMonitor, standalone API as sidecar
Production Deployment — Nginx, Gunicorn, systemd, Docker Compose, production checklist

Development

# Install dev dependencies
pip install -e ".[dev]"

# Run tests
pytest

# Run linting
ruff check src tests
black --check src tests

# Type checking
mypy src

License

Apache License 2.0 - See LICENSE for details.

Author

Ramanujam Solaimalai (@ram07eng)

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

Fork the repository
Create your feature branch (git checkout -b feature/amazing-feature)
Commit your changes (git commit -m 'Add some amazing feature')
Push to the branch (git push origin feature/amazing-feature)
Open a Pull Request

Name		Name	Last commit message	Last commit date
Latest commit History 18 Commits
.github/workflows		.github/workflows
demo		demo
docs		docs
src/airflow_watcher		src/airflow_watcher
tests		tests
.gitignore		.gitignore
ALERTING.md		ALERTING.md
CHANGELOG.md		CHANGELOG.md
CONTRIBUTING.md		CONTRIBUTING.md
INSTALL.md		INSTALL.md
LICENSE		LICENSE
Makefile		Makefile
README.md		README.md
pyproject.toml		pyproject.toml
requirements-api.txt		requirements-api.txt
requirements-dev.txt		requirements-dev.txt
requirements.txt		requirements.txt
run_api.py		run_api.py

Folders and files

Latest commit

History

Repository files navigation

Airflow Watcher 👁️

Table of Contents

Features

Plugin Features

API Features

Shared Features

Airflow Version Compatibility

Installation

Alerting & Monitoring

Quick Alerting Setup

Plugin (Airflow UI)

Demo

Plugin Architecture

UI Views

Plugin RBAC

How It Works

Setting Up DAG-Level Permissions

What Gets Filtered

RBAC Demo

Plugin API Endpoints — /api/watcher

Failures

SLA

Health

Tasks

Scheduling

DAGs

Dependencies

Overview

Demo Environment

Plugin Backend Configuration

BigQuery backend

SQLAlchemy backend

Feature availability per backend

Standalone API (FastAPI)

API Architecture

Quick Start

Interactive API Docs

Authentication & Configuration

API Endpoints

Failures — /api/v1/failures

SLA — /api/v1/sla

Tasks — /api/v1/tasks

Scheduling — /api/v1/scheduling

DAGs — /api/v1/dags

Dependencies — /api/v1/dependencies

Overview — /api/v1/overview

Health — /api/v1/health

Alerts — /api/v1/alerts

Cache — /api/v1/cache

Metrics — /metrics (optional, root level)

Infrastructure — /healthz (no auth required)

API RBAC, Request Flow & Integration Examples

API RBAC (Role-Based Access Control)

Request Flow

Integration Examples

BigQuery Backend

Install

Configure

Start

Feature matrix

SQLAlchemy Backend

Install

Configure

Feature availability

Common

Plugin vs API Comparison

Project Structure

Testing

Infrastructure Integration

Development

License

Author

Contributing

About

Resources

License

Plugin API Endpoints — `/api/watcher`

Failures — `/api/v1/failures`

SLA — `/api/v1/sla`

Tasks — `/api/v1/tasks`

Scheduling — `/api/v1/scheduling`

DAGs — `/api/v1/dags`

Dependencies — `/api/v1/dependencies`

Overview — `/api/v1/overview`

Health — `/api/v1/health`

Alerts — `/api/v1/alerts`

Cache — `/api/v1/cache`

Metrics — `/metrics` (optional, root level)

Infrastructure — `/healthz` (no auth required)

Packages
